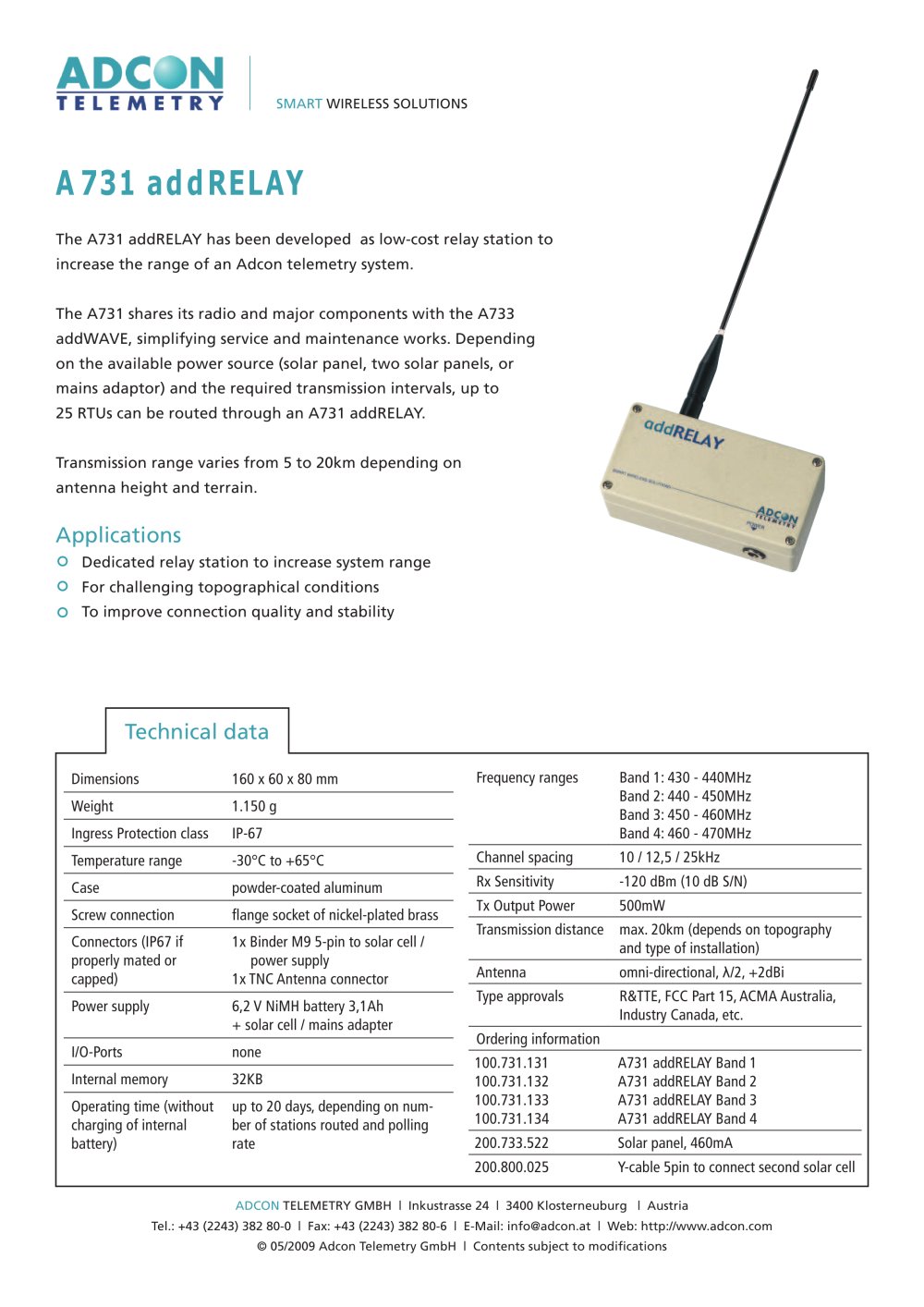

A731 addRELAY

Product catalog summary
Overview: The A731 addRELAY is a cost-effective relay station designed to extend the range of Adcon telemetry systems. It shares components with the A733 addWAVE, facilitating easier maintenance. It can route up to 25 RTUs depending on power source and transmission intervals.
Transmission Range: The range varies from 5 to 20 km, influenced by antenna height and terrain.
Applications: The A731 is ideal for enhancing system range, especially in challenging topographical conditions, and for improving connection quality and stability.
Technical Specifications:
  • Dimensions: 160 x 60 x 80 mm
  • Weight: 1.150 g
  • Ingress Protection: IP-67
  • Temperature Range: -30°C to +65°C
  • Case Material: Powder-coated aluminum
  • Connectors: Includes a Binder M9 5-pin for solar cell/power supply and a TNC Antenna connector
  • Power Supply: 6.2 V NiMH battery with 3.1Ah capacity, supplemented by solar cell or mains adapter
  • Operating Time: Up to 20 days without charging, depending on routing and polling rate
  • Frequency Ranges: Four bands from 430 MHz to 470 MHz
  • Channel Spacing: 10 / 12.5 / 25 kHz
  • Rx Sensitivity: -120 dBm (10 dB S/N)
  • Tx Output Power: 500 mW
  • Transmission Distance: Maximum of 20 km
  • Antenna: Omni-directional, λ/2, +2dBi
  • Type Approvals: R&TTE, FCC Part 15, ACMA Australia, Industry Canada
Ordering Information: Various models are available for different frequency bands, along with accessories like solar panels and Y-cables for additional solar cells.
