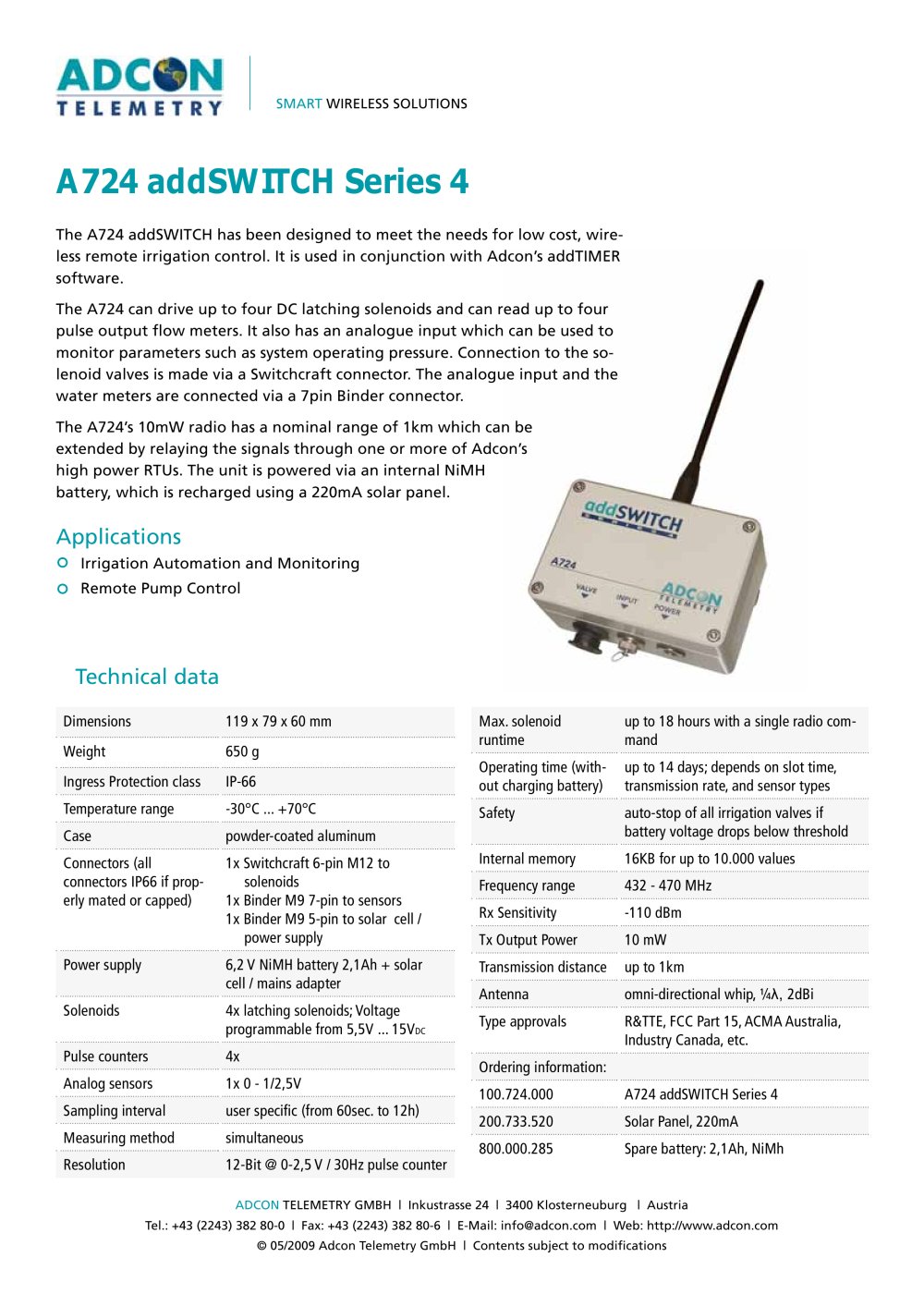

A724 addSWITCH Series 4

Product catalog summary

Overview: The A724 addSWITCH Series 4 is a cost-effective, wireless remote irrigation control device designed for use with Adcon's addTIMER software. It supports up to four DC latching solenoids and can read up to four pulse output flow meters. An analogue input is available for monitoring parameters like system operating pressure.

Specifications:

Dimensions: 119 x 79 x 60 mm
Weight: 650 g
Ingress Protection: IP-66
Temperature Range: -30°C to +70°C
Case Material: Powder-coated aluminum
Connectors: Switchcraft 6-pin M12, Binder M9 7-pin, Binder M9 5-pin
Power Supply: 6.2 V NiMH battery (2.1Ah) with solar cell/mains adapter
Solenoids: 4x latching, voltage programmable from 5.5V to 15VDC
Pulse Counters: 4x
Analog Sensors: 1x 0 - 1/2.5V
Sampling Interval: User-specific (60 sec to 12 hours)
Resolution: 12-Bit @ 0-2.5 V / 30Hz pulse counter
Max Solenoid Runtime: Up to 18 hours with a single radio command
Operating Time: Up to 14 days without charging, depending on usage
Safety: Auto-stop of irrigation valves if battery voltage drops
Internal Memory: 16KB for up to 10,000 values
Frequency Range: 432 - 470 MHz
Rx Sensitivity: -110 dBm
Tx Output Power: 10 mW
Transmission Distance: Up to 1 km
Antenna: Omni-directional whip, ¼λ, 2dBi
Type Approvals: R&TTE, FCC Part 15, ACMA Australia, Industry Canada

Applications: The device is suitable for irrigation automation and monitoring, as well as remote pump control.

Ordering Information:

100.724.000 A724 addSWITCH Series 4
200.733.520 Solar Panel, 220mA
800.000.285 Spare battery: 2.1Ah, NiMh
