The document introduces the Adaptalok ATS™, a non-metallic conduit system by Adaptaflex, designed to enhance performance and installation efficiency. It is an evolution of the previous Adaptalok system, utilizing advanced moulding processes for improved performance.
The Adaptalok ATS™ is a one-piece connector system that facilitates quick and easy installation, achieving high ingress protection ratings of IP68 and IP69k. It includes integral seals and washers to minimize installation errors and reduce downtime costs. The system complies with international standards, including the BSI Kitemark to IEC61386 and is CE marked under the Low Voltage Directive.
This system is suitable for OEM market sectors such as railways, machine tools, marine, process control, and automation systems. Its ease of use and rapid installation offer significant cost benefits.
The Adaptalok ATS™ range includes various fittings and conduits, such as straight, elbow, and swivel metal threaded fittings. The conduits are available in lightweight, standard, and heavyweight options, each with specific temperature and flexibility characteristics.
Adaptalok ATS™ fittings are designed for easy assembly using a "PUSH & TWIST - PULL" action, ensuring correct placement and reducing the risk of errors.
The system offers high UV resistance, flexibility, and fatigue life, with options for low fire hazard and halogen-free materials. It is suitable for both static and moving applications across various temperature ranges.
The Adaptalok ATS™ represents a significant advancement in non-metallic conduit systems, providing ultimate performance, reliability, and cost-effectiveness for a wide range of applications.
The document details the specifications and characteristics of Adaptalok ATS™ fittings, known for their high flexibility, fatigue life, and self-extinguishing properties, making them suitable for static and moving applications across different temperature ranges.
The fittings are made from materials such as Polyamide (Nylon) 66 and TPE, available in Black (BL) and Grey (GR) body colors, with elastomers in Yellow (Y) and Blue (B). They are designed to withstand static applications from -50˚C to +120˚C and moving applications from -45˚C to +120˚C.
The fittings come in various types, including straight, 45˚ elbow, and 90˚ elbow configurations, with both fixed and swivel external threads. They are compatible with metric and NPT threads and are supplied with locknuts for secure installation.
The fittings have high IP ratings (IP66, IP67, IP68, IP69k) ensuring liquid-tight performance. They comply with RIA 20 Vibration and UL1696 standards, especially when used with PADL conduits.
These fittings are suitable for use in machinery, public buildings, railways, and underground installations, designed for both static and dynamic environments, providing reliable performance in demanding conditions.
To order, specify the part number, body color, elastomer color, and reel length. Special configurations, such as Big Bore and PF/GAS metal threads, are available upon request.
The document provides technical specifications for sealing washers, end sleeves, and removal tools made from rubber and nylon, designed for use with threaded fittings. Products are available in black, yellow, and blue colors. Ordering requires adding a suffix to the part number based on material and color.
The document includes detailed thread data conforming to various international standards such as EN60423, BS3643, DIN40430, JIS B 0202, ANSI/ASME B1.20.1 – 1983, and BS1580. It lists thread sizes, external and internal thread diameters, and pitch measurements.
Materials are categorized based on fire hazard levels: Low Fire Hazard (LFH), Enhanced Low Fire Hazard (ELFH), and Super Low Fire Hazard (SLFH). It provides oxygen index, smoke density, and toxicity index values, indicating compliance with standards like ISO4589, BS6853, and NES713.
The document explains the Ingress Protection (IP) ratings system, detailing protection levels against solid bodies and water. All Adaptalok ATS fittings comply with IP66, 67, 68, and 69k standards.
A chemical resistance comparison table is provided, indicating the suitability of various materials against different chemicals at 23°C. Suitability is categorized as suitable, limited suitability, unsuitable, or not tested.
The document outlines performance classifications for non-metallic fittings, detailing characteristics such as compression strength, impact strength, temperature range, bending properties, electrical properties, IP ratings, corrosion resistance, tensile strength, and load capacity.
The document promotes other products available from Adaptaflex, including a comprehensive catalogue of cable management solutions. It provides contact information and encourages visiting their website for more technical data and product information.
Catalog excerpts
Cable Management Solutions

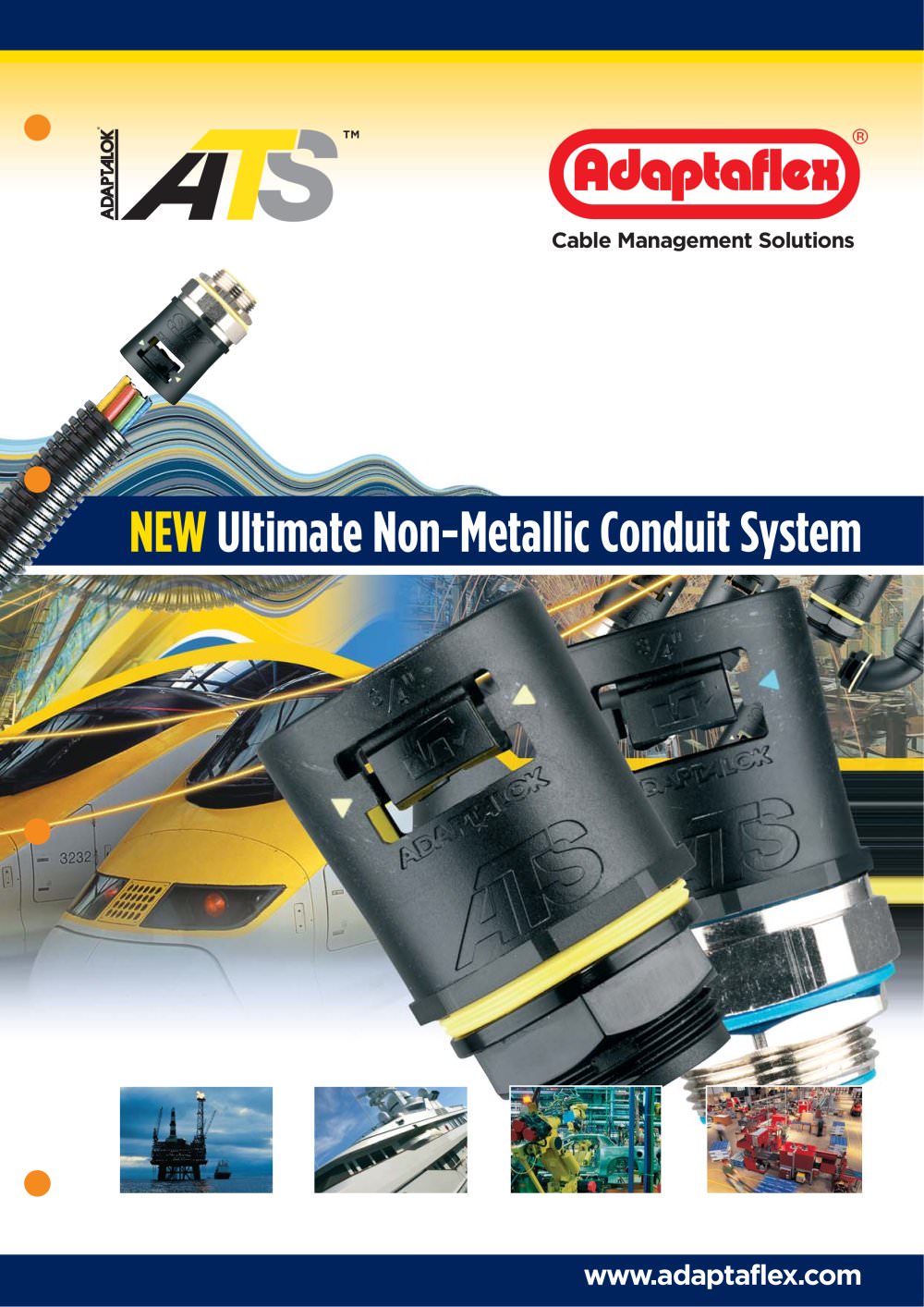

Open the catalog to page 1
Adaptalok ATSٙ is a one-piece connectorsystem that is quick and easy to fit, providing the highest performing conduit system available. Achieving IP68 and IP69k ingress protection in a component, that gives assured performance over its life. > Adaptalok ATS has been tested to all relevantindustry standards. Details of these tests are in this catalogue and available via the website.Adaptalok ATSٙ products are pending approval bya range of recognised international industry standards including. > ■ BSI Kitemark to IEC61386 Adaptalok ATS is an ideal solution for the OEM market sectors. For example...
Open the catalog to page 3
Adaptalok ATSٙ represents a unique and innovative solution in flexible conduit systems. Until now,manufacturers have produced fittings and seals separately, and assembled them together, or had the customer assemble them. This increases assembly time and introduces the possibility for errors.Adaptalok ATS uses a sophisticated moulding process to mould an internal conduit seal and aface seal washer. This makes installation times very fast, and extremely reliable, because the seals cannot be left out. The conduit system also benefits from the highest IP rating possible. High Visibility Elastomer...
Open the catalog to page 4
Extensive mouldedconduit seal,guaranteed fitLead in to boreis insulatedprotecting cablesMoulded face sealwasher, and seal onswivel fittings > ■ Halogen Free ■ UL 1696 Approval Pending ■ Low Smoke Zero Halogen (LS0H) ■ Flame Retardant, UL94:V0 > ■ Most Standard Applications ■ Where UL 1696 is a requirement i.e North America > Insulated throat as standard, protects wiresColoured seal fitted asstandard, captive. Does not extrude when tightenedUnique swivel metalthreads, simplifies installation allowing for higher toghtening torques Moulded washer performs as sealon swivel metal threadInternal seal...
Open the catalog to page 5
Advantages of Adaptalok ATS > Benefits & Installation Tips Typical conduit fitting Adaptalok ATS fitting Multi-piece fitting - IP54 - 68/69kInternal seal, clip, fitting body & face seal washer One-piece fitting - IP68/69k Parameter > Competitors > Time to assemble & fit to conduitNumber of parts IP RatingIP68 - 4barIP69k1 part< 3 seconds IP54 -IP69k2 to 7 parts4-20 seconds Adaptalok ATSٙ is assembled to the conduit very easily with a PUSH & TWIST - PULLӔ action.To ensure correct location of the fitting onto the conduit, ensure the clips locate into the conduit corrugation ✔ Correct ✖ Incorrect...
Open the catalog to page 6
Type DescriptionSize RangeThread typesComments Straight, fixed nylon thread1354Metric, NPT, PF/GasNew 48mm size in rangeswept 90 elbow, fixed nylon thread13Ņ54Metric, NPT, PF/GasNew 48mm size in range 45 elbow, fixed nylon thread1354Metric, NPT, PF/GasNew 48mm size in range Big bore fixed nylon thread13Ņ54MetricMetric replacement for PG threadsStraight, swivel metal, male thread1354swept 90 elbow, swivel metal,13Ņ54Metric, NPT and Big bore as1 piece Fitting comes complete with a fitted locknut,male threadstandard (PF/Gas available fitted captive face seal washer and insulated throatto order.)insert...
Open the catalog to page 7
ATS fittings with Yellow elastomerATS fittings with Blue elastomerFastlokManifoldsConduit Clips n/a4 bar 30 mins4 bar 30 mins2 bar 30 mins2 bar 30 minsn/a > IP RATING - (with ATS fitting) Vety High Vety High Vety High Vety High Vety High > Vety High Vety High High High High >
Open the catalog to page 9
Technical Section > IP RATINGS & FITTING CHARACTERISTICS IP suitability ratings are a system for classifying the degree of protection provided by enclosures of electrical equipment. The higher thenumber, the greater the degree of protection; they apply ONLY to properly installed equipment. The numerals stand for the following: Ingress Protection (IP) Rating according to EN 60529/DIN 40050 > The first digit stands for:Protection against Dust NOTE:All Adaptalok ATS fittings comply with IP66, 67, 68 & 69k in a single component device The second digit stands for: Protection against Water Protection...
Open the catalog to page 24
Ask for our latest Adaptaflex cataloguewith our full range ofCable Management Solutions.Its the definitive guide for specifiers,contractors and stockists. Ң֠ 84 pages packed with over 6000products - 600 are new! ■ A big choice of market leading Elkay products including timerswitches, glands, terminals, etc ■ Full range of metallic &non-metallic systems (includingbraided, pre-wired & Jumbo) ■ Product selection charts to helpyou make the right choice ■ Colour coded for easy productselection Visit our website where the latest Adaptaflexproduct & technical information available 24/7. ■ Entire searchable...
