AP25 & AP24XS Panel Mounting Printer Range

Product catalog summary

Overview: The document provides details about the Ap25 and Ap24XS panel mounting printer range from ABLE Systems Limited, highlighting their compact and stylish design, ease of integration, and various options available for customization. These printers are suitable for applications such as fire and security panels, autoclaves, mobile messaging systems, taxi meters, timing and telemetry systems, and industrial data logging.

Product Specifications:

Ap25 Range: Basic printing requirements with options for 24, 32, or 40 columns. Print speed ranges from 0.4 to 0.7 lines per second and 16 characters per second. Character size varies from 1.1 x 2.4 mm to 1.7 x 2.4 mm. Power supply is +5V DC with a peak of 3A.
Ap24XS Range: Offers improved performance with a variable voltage option. Available in 24 or 40 columns with print speeds of 1.5 to 2.5 lines per second and 60 characters per second. Character size options are 1.1 x 2.4 mm and 1.7 x 2.4 mm. Power supply can be +5V DC or 9V – 36V DC variable input.

Technical Details:

Both ranges support the IBM 224 character set, code page 437, with individual country character sets selectable via software.
Data input options include Parallel or Serial TTL, with Serial RS232C as an option for Ap25 and standard for Ap24XS.
Baud rates are pin selectable, with options ranging from 300 to 9600 for Ap25 and 1200 to 9600 for Ap24XS.
Dimensions are consistent across models at 113.5 mm (w) x 66 mm (h) x 96 mm (d), with a weight of 391g including a full roll of paper.
Operating temperature range is 0 - 50°C, with reliability measured in MCBF (lines) varying by model.

Additional Products: ABLE Systems also offers wireless printers, portable printers, kiosk printers, in-vehicle printers, printer mechanisms & interfaces, and various accessories and consumables.

Contact Information: ABLE Systems Limited is located in Northwich, Cheshire, England. Contact can be made via phone, fax, or email, with further information available on their website.

Catalog excerpts

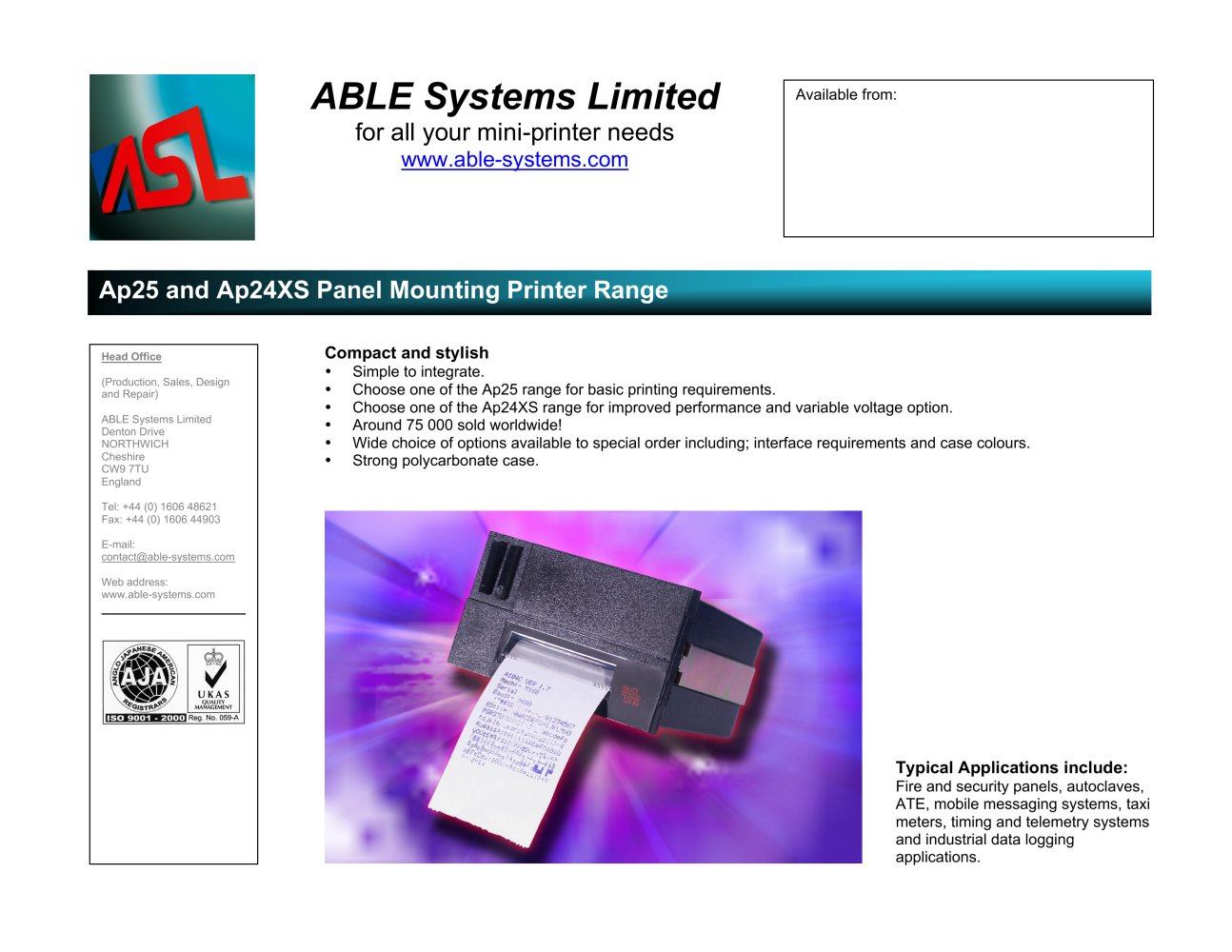

AP25 & AP24XS Panel Mounting Printer Range-1

Head Office (Production, Sales, Designand Repair) Simple to integrate. Օ Choose one of the Ap25 range for basic printing requirements. > A BLE Systems LimitedDenton DriveNORTHWICHCheshireCW9 7TUEnglandTel: +44 (0) 1606 48621Fax: +44 (0) 1606 44903E-mail:[email protected] Choose one of the Ap24XS range for improved performance and variable voltage option. Օ Around 75 000 sold worldwide! Wide choice of options available to special order including; interface requirements and case colours. Օ Strong polycarbonate case. > Web address:www.able-systems.com Fire and security panels, autoclaves, A TE, mobile messaging systems, taximeters, timing and telemetry systemsand industrial data logging applications. >

Open the catalog to page 1

AP25 & AP24XS Panel Mounting Printer Range-2

Number of columns 24 32 40 24 40 Print Speed - lines per second 0.7 0.5 0.4 2.5 1.5 - characters per second 16 16 16 60 60 Paper Width (mm) 57.5 0.5 IBM Ѯ 224 character set, code page 437 Character Set IBM 224 character set, code page 437 (default) (default) Individual country character sets by software selection Individual country character sets by software (pin selectable) Character Size (mm) 1.7 x 2.4 1.3 x 2.4 1.1 x 2.4 1.7 x 2.4 1.1 x 2.4 Dots per line (graphics) 144 192 240 144 240 Font (dots) 5 x 7 Data Input Parallel or Serial TTL (Serial RS232C option) Serial RS232C Baud Rate 300, 1200,...

Open the catalog to page 2
