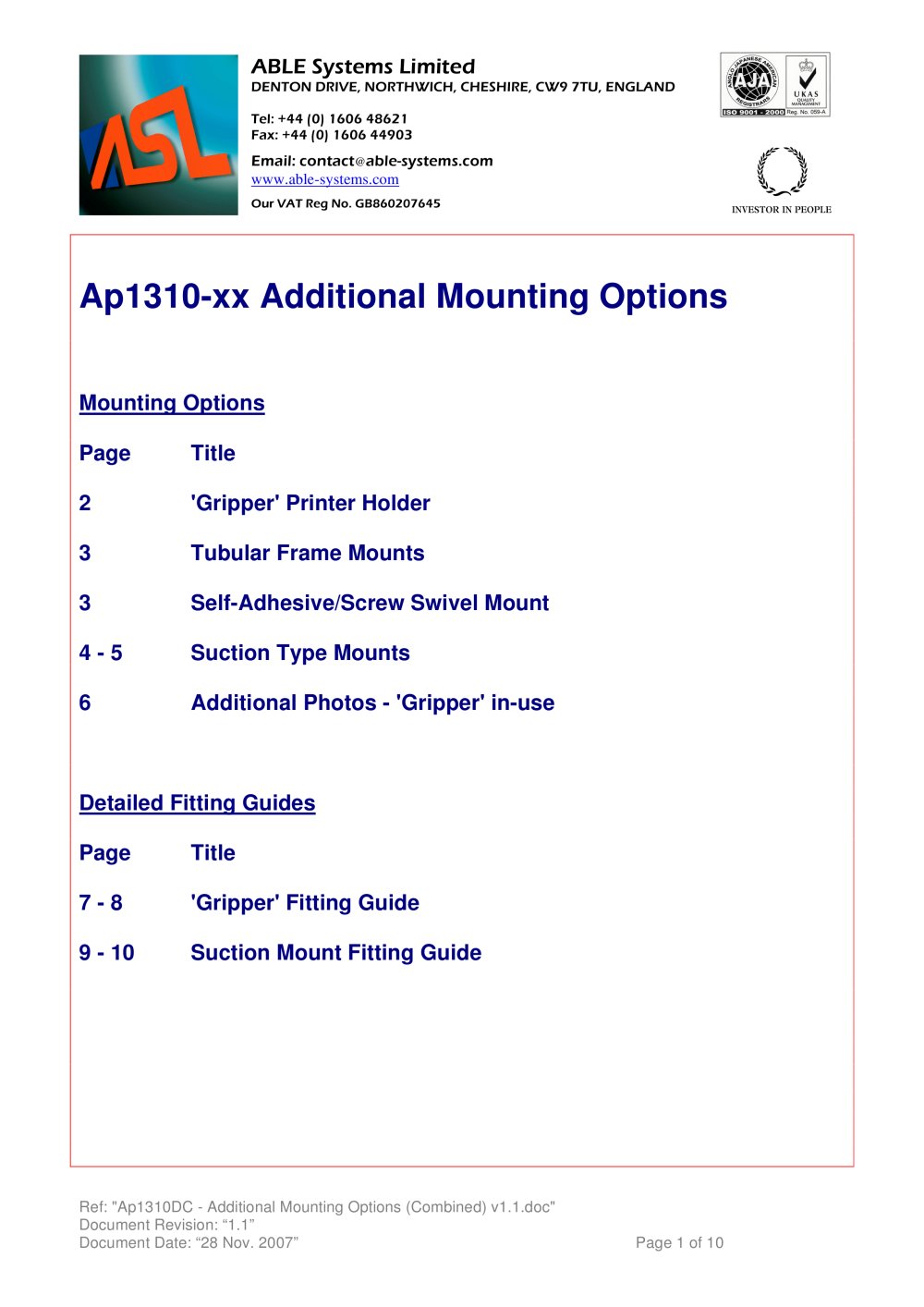

A BLE Systems Limited > DENTON DRIVE, NORTHWICH, CHESHIRE, CW9 7TU, ENGLANDTel: +44 (0) 1606 48621Fax: +44 (0) 1606 44903 Email: contact @ able-systems.com www.able-systems.com Our VAT Re g No. GB860207645 Mounting Options PageTitle 2 'Gripper' Printer Holder 3 Tubular Frame Mounts 3 Self-Adhesive/Screw Swivel Mount 4 - 5Suction Type Mounts 6Additional Photos - 'Gripper' in-use Detailed Fitting Guides PageTitle 7 - 8 'Gripper' Fitting Guide 9 - 10 Suction Mount Fitting Guide > Ref: "Ap1310DC - Additional Mounting Options (Combined) v1.1.doc"Document Revision: 1.1ӔDocument Date: 28 Nov. 2007ӔPage 1 of 10 size="-1">

DENTON DRIVE, NORTHWICH, CHESHIRE, CW9 7TU, ENGLANDTel: +44 (0) 1606 48621Fax: +44 (0) 1606 44903 Email: contact > @ able-systems.com www.able-systems.com > Our VAT Re g No. GB860207645 Applies to: Ap13xx range including Ap1310DC > Part(s): Ap1300MBUG01 The compulsory part is the 'Gripper' holder used to clamp the printer. To secure the printer; 1) Firmly position the printer in the holder. 2) Squeeze the padded sides until the printer is secured - typically 2-3 clicks inward from the fully open position. The sides and core of the holder are provided with a soft, non-slip sponge rubber layer,...

DENTON DRIVE, NORTHWICH, CHESHIRE, CW9 7TU, ENGLANDTel: +44 (0) 1606 48621Fax: +44 (0) 1606 44903 Email: contact > @ able-systems.com www.able-systems.com > Our VAT Re g No. GB860207645 Part(s): Ap1300MB02, Ap1300MB03 These mounts were designed for any application where the printer needs to be fixed to a tubular metal bar, examples are; trolleys, carts, fork lift trucks, agricultural vehicles. The Ap1300MB03 suits narrow diameter frames, whilst the Ap1300MB02 suits larger diameter frames. Dimensions are 38X57X42 for the Ap1300MB03 and 52x56x42 for the Ap1300MB02. A p 1300MB02 A p 1300MB03 > Part(s):...

DENTON DRIVE, NORTHWICH, CHESHIRE, CW9 7TU, ENGLANDTel: +44 (0) 1606 48621Fax: +44 (0) 1606 44903 Email: contact > @ able-systems.com www.able-systems.com > Our VAT Re g No. GB860207645 Part(s): Ap1300MB04, Ap1300MB05, Ap1300MB06 Choice of suction-based mounts designed for clamping to any glass surface such as a vehicle windscreen, they are also capable of clamping securely to any non-porous surface such as a panelled wall or desk. Ap1300MB04 - Adjustable arm extension, 40deg tilt, 360deg rotation, dimensions - 205 to 285(adjustable) x 77 x 56 mm A p 1300MB04 - Shortened A p 1300MB04 - Extended...

DENTON DRIVE, NORTHWICH, CHESHIRE, CW9 7TU, ENGLANDTel: +44 (0) 1606 48621Fax: +44 (0) 1606 44903 Email: contact > @ able-systems.com www.able-systems.com > Our VAT Re g No. GB860207645 Ap1300MB06 - Fixed short extension, rotates in horizontal and vertical directions, Adjustment can be locked with side screws, dimensions - 170 x 77 x 77 mm A p 1300MB06 Ref: "Ap1310DC - Additional Mounting Options (Combined) v1.1.doc"Document Revision: 1.1ӔDocument Date: 28 Nov. 2007ӔPage 5 of 10 >

DENTON DRIVE, NORTHWICH, CHESHIRE, CW9 7TU, ENGLANDTel: +44 (0) 1606 48621Fax: +44 (0) 1606 44903 Email: contact > @ able-systems.com www.able-systems.com > Our VAT Re g No. GB860207645 Ap1310Ap1310-DC Ap1300 Ref: "Ap1310DC - Additional Mounting Options (Combined) v1.1.doc"Document Revision: 1.1ӔDocument Date: 28 Nov. 2007ӔPage 6 of 10 >

DENTON DRIVE, NORTHWICH, CHESHIRE, CW9 7TU, ENGLANDTel: +44 (0) 1606 48621Fax: +44 (0) 1606 44903 Email: contact @ able-systems.com www.able-systems.com Our VAT Re g No. GB860207645 1. Take your chosen mount together with the printer 'gripper'. 2. Place the chosen bracket in the rear of the printer 'gripper' as shown below. > Ref: "Ap1310DC - Additional Mounting Options (Combined) v1.1.doc"Document Revision: 1.1ӔDocument Date: 28 Nov. 2007ӔPage 7 of 10 size="-1">

DENTON DRIVE, NORTHWICH, CHESHIRE, CW9 7TU, ENGLANDTel: +44 (0) 1606 48621Fax: +44 (0) 1606 44903 Email: contact @ able-systems.com www.able-systems.com Our VAT Re g No. GB860207645 3. To secure; slide the bracket upward in the direction shown by the 'close' arrow. 4. To remove, simply slide the bracket in the opposite direction shown by the 'open' arrow on the rear of the 4 prong mounting. > Ref: "Ap1310DC - Additional Mounting Options (Combined) v1.1.doc"Document Revision: 1.1ӔDocument Date: 28 Nov. 2007ӔPage 8 of 10 size="-1">

DENTON DRIVE, NORTHWICH, CHESHIRE, CW9 7TU, ENGLANDTel: +44 (0) 1606 48621Fax: +44 (0) 1606 44903 Email: contact @ able-systems.com www.able-systems.com Our VAT Re g No. GB860207645 1. Referring to the base of the suction mount, begin with the locking clip raised as shown in the picture below. 2. Press the suction cup securely against the surface with one hand and push the locking clip down with the other while maintaining pressure on the mount. For better adhesion add water to surface of the suction cup immediately before fitting. > Ref: "Ap1310DC - Additional Mounting Options (Combined) v1.1.doc"Document...

DENTON DRIVE, NORTHWICH, CHESHIRE, CW9 7TU, ENGLANDTel: +44 (0) 1606 48621Fax: +44 (0) 1606 44903 Email: contact > @ able-systems.com www.able-systems.com > Our VAT Re g No. GB860207645 For further information or assistance please contact your local sales representative, or alternatively contact the Able Systems factory directly. [End] Ref: "Ap1310DC - Additional Mounting Options (Combined) v1.1.doc"Document Revision: 1.1ӔDocument Date: 28 Nov. 2007ӔPage 10 of 10 >
