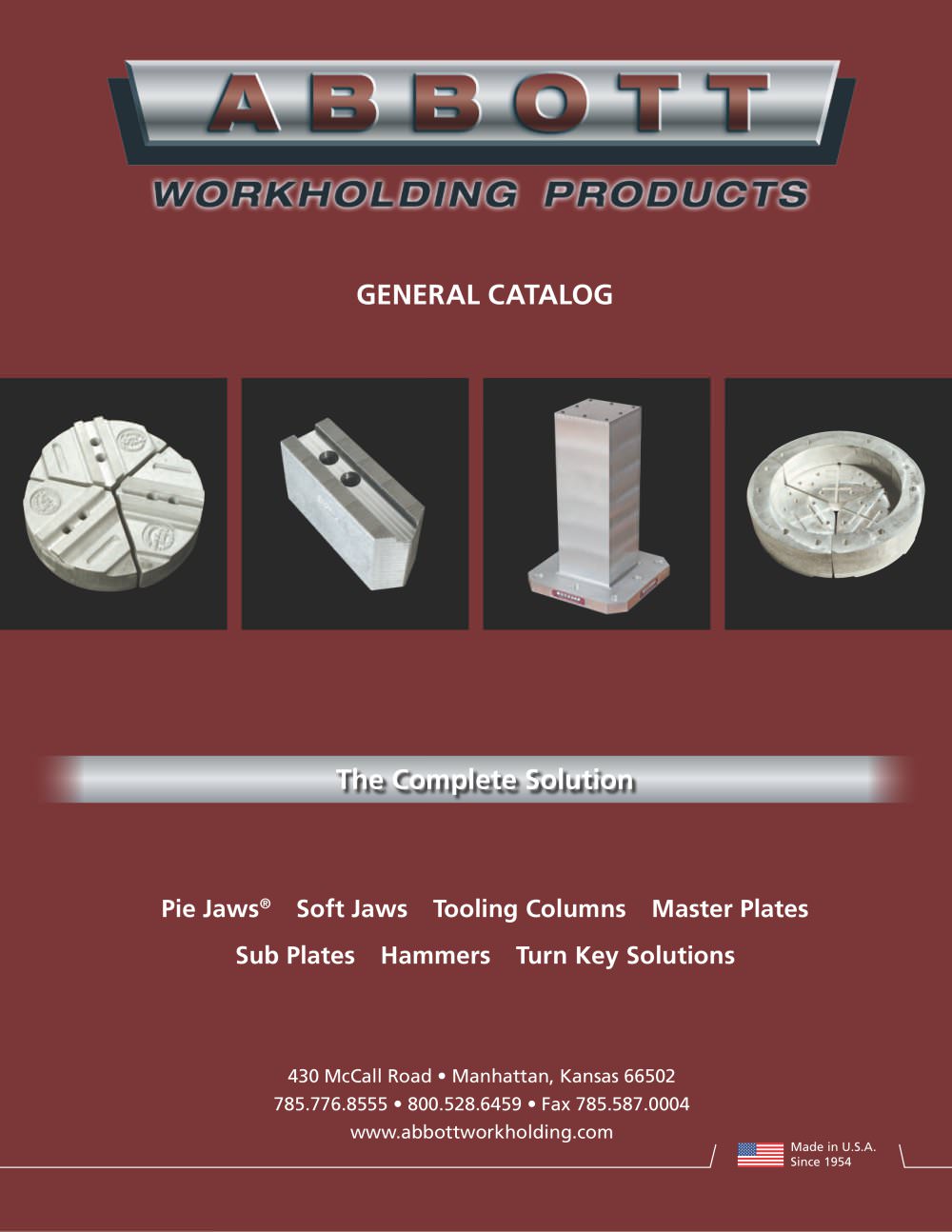

GENERAL CATALOG The Complete Solution > Pie Jaws Tooling Columns Master Plates Straight JawsSub Plates Angle Plates Hammers Turn Key Solutions 430 McCall Road Ε Manhattan, Kansas 66502785-776-8555 1-800-528-6459 Օ Fax 785-587-0004 www.abbottworkholding.com size="-2">

n 1954, Abbott Engineering and Manufacturing Co. began producing soft jaws and specialized tooling on a sub- contract basis in Phoenix, AZ. The business initially consisted of one employee operating out of a rented Quonset hut, but quickly matured into a dynamic, profitable corporation.In 1955, Abbott built the nations first Pie Jaw > Ү and a very comprehensive inventory of aluminum tooling columns, sub- plates and associated fixturing.As a direct result of the increased manufacturing capabilities, Abbott changed its name to Abbott Workholding Products, which more accurately described the...

other CNC tooling products (angle plates, parallels and tooling columns, etc) are made of 713 (Tenzaloy) aged to T-6 condition.As significant as any other single technological advancement in precision toolmaking, our revolutionary Pie Jaw > ٮ brand chuck jaws technology has benefited manufacturers in a host of industries by enabling them to drastically increase their produc- tivity, quality and profits while reducing production costs. Pie Jaws > brand chuck jaws, as well as master plates, segments, tooling columns, sub plates, and a variety of accessories. The significant weight and cost...

Chuck Jaw Interface Type Style(s) Straight / Pie Chuck Jaw Interface Type Style(s) Straight / Pie ATS 1.5mm x 60 Serrated P/QATLAS American Standard Tongue & Groove A/DAUTOBLOK Acme Serrated Key C/L 1/16" x 90а Serrated & 3/32" x 90 Serrated J/K 1.5mm x 60а Serrated P/QBISON/ American Standard BERGMAN Tongue & Groove A/DBTC 1.5mm x 60 Serrated P/Q BUCK American Standard Tongue & Groove A/D Square Serrated Key B/EBULLARD Bullard Style Jaws C/W CADILLAC Tongue & Groove A/D CUSHMAN American Standard Tongue & Groove A/D Acme Serrated Key C/LERICSON 1/16" x 90а Serrated J/K FORKARDT 1/16" x 90...

he Abbott Pie Jaw > maintains 360 degrees of contact, so parts cannot deform, giving you a greater degree of accuracy. Our Pie Jaws > ή are designed to grip the part more effectively without distorting thin walled or odd-shaped parts. >

Pie Jaw > Advantages Most of our Pie Jaws > ή are made from aerospace aluminum alloys. The light weight of the aluminum Pie Jaws > enables you to rotate your chuck faster than before, so you can turn parts faster with less wear and tear on your machine. Substantially lighter weight jaws enhance operation utilization and shop efficiency. Concentricities and close tolerances are easily and consistently maintained. In addition, machine and tool life are significantly extended due to more effective application of coolants.In fact, Pie Jaws > ή can be used in over three-quarters of all your...

Made with 319 cast aluminum, cast iron, 1018 steel or A36 steel Add CI prefix to aluminum part # for cast iron jaws Add ST prefix to aluminum part # for steel jaws Cast iron version weight is approximately 2.6 times that of aluminum Steel version weight is approximately 2.8 times that of aluminum Dimensions in inches unless otherwise noted Weights in lbs. A B D F G J CHUCK ALUMINUM PART# DIAMETER HEIGHT SLOT HOLE SPACING BOLT SIZE DIM WEIGHT 24 KTT24P2 24 2 0.984 2.362 20mm 7 1/2 93.0 KTT24P 24 3 0.984 2.362 20mm 7 1/2 138.0 KTT24P1 24 4 0.984 2.362 20mm 7 1/2 182.4 KTT28-24P 28 3 0.984...

Made with 4140 steel Dimensions in inches unless otherwise noted A B C D G M CHUCK PART# WIDTH HEIGHT LENGTH TONGUE BOLT SIZE FLANGE 10 PH10JN 0.75 0.61 0.75 0.551 3/8 0.25212 PH12JN 1.00 0.85 1.00 0.787 1/2 0.32515 PH15JN 1.00 1.00 1.13 0.827 5/8 0.430 > Made with 4140 steel Dimensions in inches unless otherwise noted A B C D G M CHUCK PART# DIAMETER HEIGHT LENGTH TONGUE BOLT SIZE FLANGE 10 SMW10JN-1-2 1.17 1.10 N/A 0.827 1/2 0.42012 SMW12JN 1.17 1.10 N/A 0.827 5/8 0.420 >

Made with 4140 steel Dimensions in inches unless otherwise noted A B C D G M CHUCK PART# DIAMETER HEIGHT LENGTH TONGUE BOLT SIZE FLANGE 16 SMW16JN 1.34 1.34 N/A 1.004 3/4 0.570 >

Made with 1018 case hardened steel Dimensions in inches unless otherwise noted A B C D E F G H J K L CHUCK PART# WIDTH HEIGHT LENGTH TONGUE SLOT HOLE SPACING BOLT SIZE TAPPED HOLE DIM STEP 1 STEP 2 10 10A04HJDS 1.75 2.50 4.15 0.750 1.030 1.750 1/2 5/16-18 2.513 0.62 1.2512 12A04HJDS 1.75 2.50 5.21 0.875 1.030 2.000 5/8 5/16-18 3.351 0.51 1.1315 15A04HJDS 2.50 3.50 6.03 1.000 1.530 2.500 3/4 3/8-16 3.515 0.81 1.60 > Made with 4140 steel Dimensions in inches unless otherwise noted A B C D F G M CHUCK PART# WIDTH HEIGHT LENGTH TONGUE HOLE SPACING BOLT SIZE FLANGE 10 10A04JN 0.94 0.64 2.50...

Made with 4140 steel Dimensions in inches unless otherwise noted A B C D E F G M CHUCK PART# WIDTH HEIGHT LENGTH TONGUE SLOT HOLE SPACING BOLT SIZE FLANGE 10-12 12JN 1.00 1.00 2.50 0.750 0.996 1.750 1/2 0.381 12JN-5-8 1.00 1.00 2.50 0.750 0.996 1.750 5/8 0.44015 15JN 1.25 1.25 3.75 1.000 1.489 2.500 3/4 0.530 > Made with 1018 case hardened steel Dimensions in inches unless otherwise noted A B C H N O CHUCK PART# WIDTH HEIGHT LENGTH BOLT SIZE DEPTH PITCH 10-12 12MK 0.993 0.50 1.69 5/16 0.13 0.2515-18 15MK 1.487 0.50 2.25 3/8 0.13 0.2521-24 21MK 1.487 0.50 2.50 3/8 0.13 0.25 >

Safe and effective use of top jaws requires strict adherence to established safety guidelines. Consult the machine and chuck manufacturers operating manual for safe use and limitations. In preparation, wipe the mounting face of each master jaw, and each top jaw, clean off all dirt and chips. Inspect each top jaw before mounting to verify a good material condition. Now carefully mate the top jaw to the master jaw, making sure of a proper fit between all components. Insert jaw mounting bolts and tighten them evenly and firmly. Use only high quality fasteners. CAUTION: IT IS CRITICAL THAT THE...
