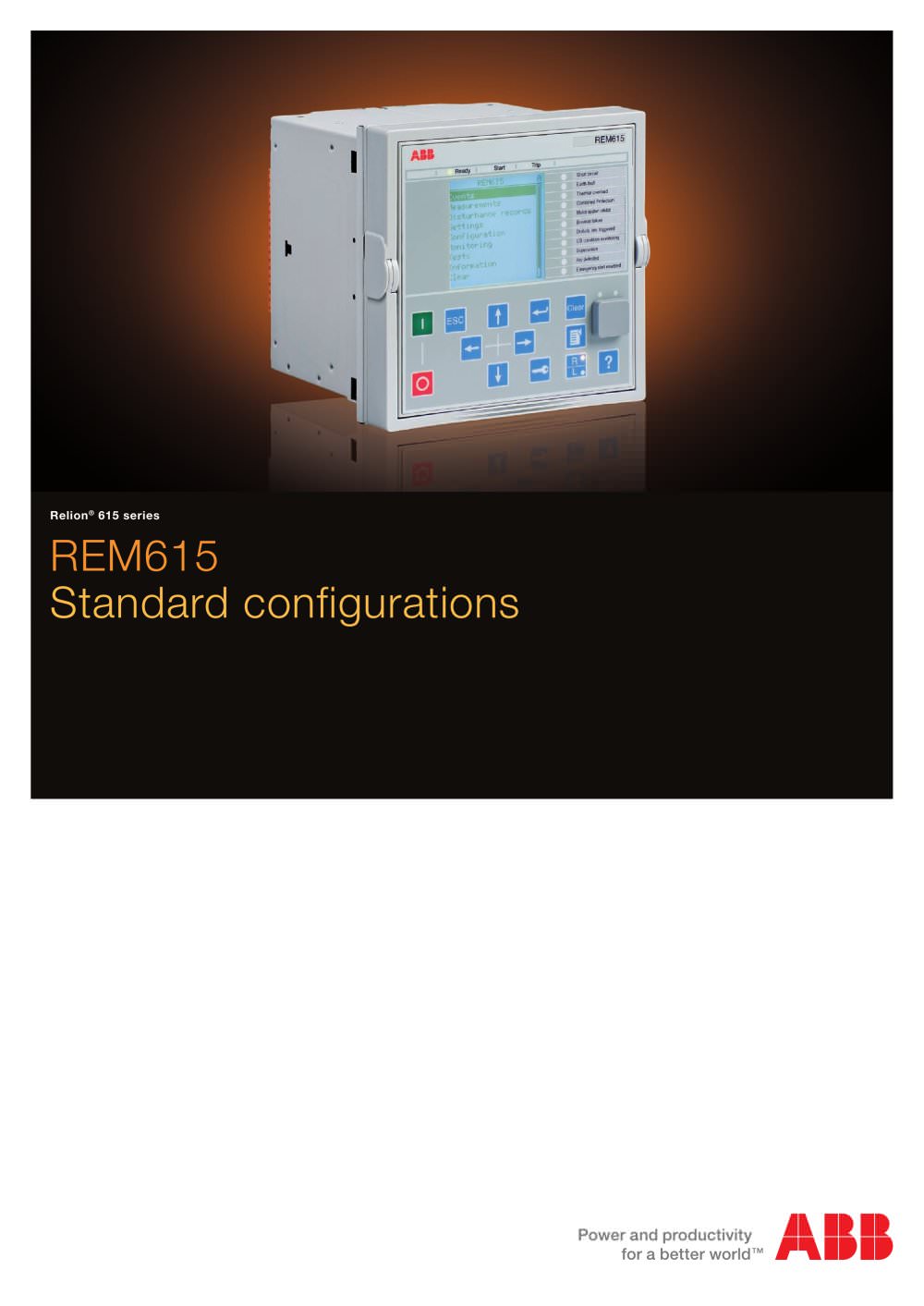

Overview: The document provides standard configurations for the REM615 motor protection and control device, part of the Relion® 615 series. It outlines the protection, control, condition monitoring, and measurement functionalities supported by the device.

Protection Functions: The REM615 offers a comprehensive suite of protection functions for motors, including thermal overload protection, motor start-up supervision, and various overcurrent protections. It also includes directional and non-directional earth fault protection, motor load jam protection, and phase reversal protection. Additional features include undervoltage and overvoltage protections, circuit breaker failure protection, and arc protection across multiple instances.

Control Functions: The device supports circuit-breaker control with interlocking and provides disconnector position indications for up to three instances. It also includes earthing switch indication and emergency start-up capabilities.

Condition Monitoring: REM615 includes circuit-breaker condition monitoring, trip circuit supervision for two instances, current circuit supervision, and fuse failure supervision. It also features a motor runtime counter for operational tracking.

Measurement Functions: The device is equipped with a disturbance recorder and supports various measurements, including three-phase current, sequence current, residual current, and voltage measurements. It also measures three-phase power and energy.

Standards and Protocols: The document references IEC 61850 and IEC-ANSI standards, indicating compliance with international protocols for electrical protection and control systems.

Contact Information: For further inquiries, ABB Oy, Distribution Automation can be contacted at their office in Vaasa, Finland.
