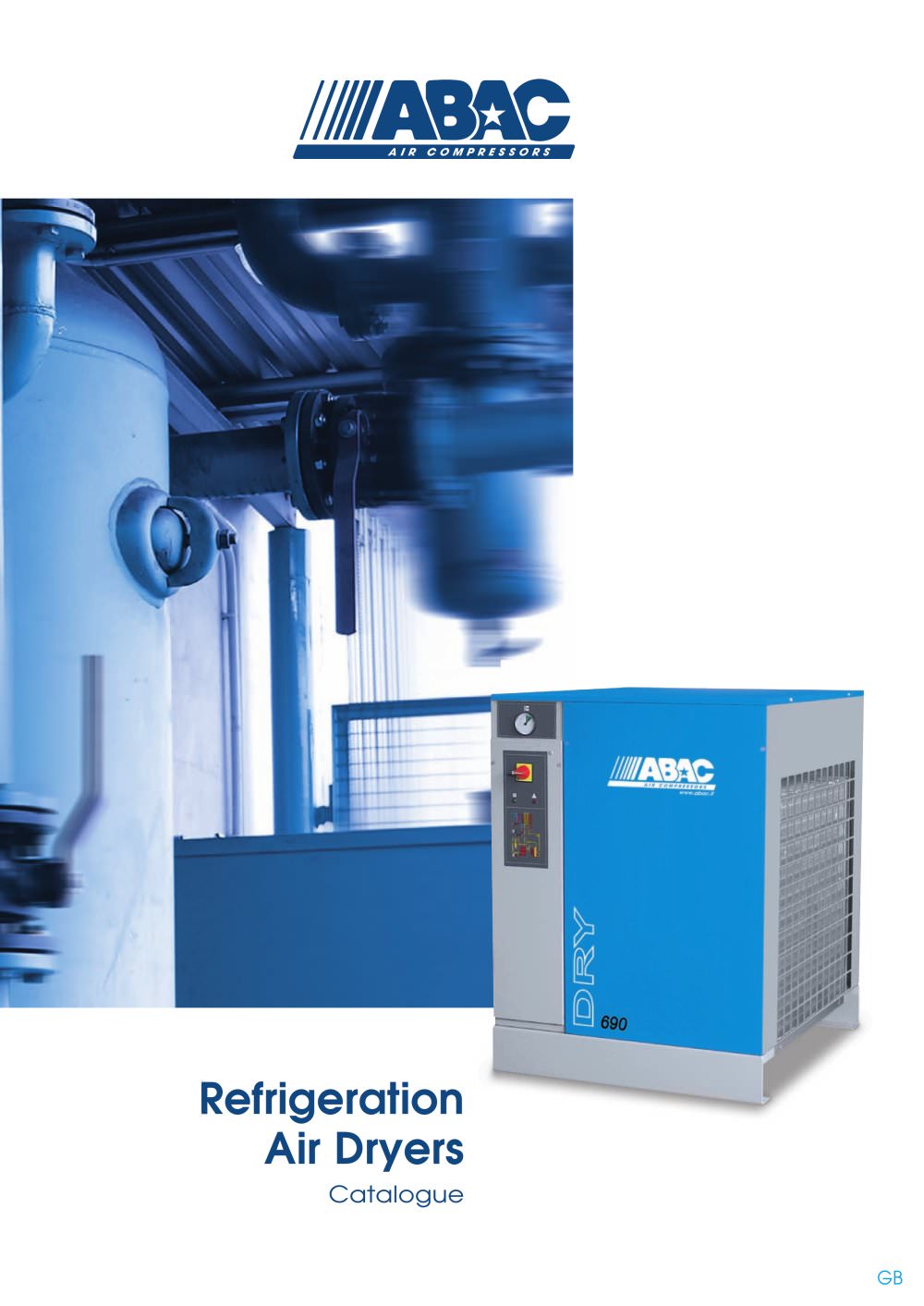

Refrigeration Air Dryers Catalogue GB

Humidity is a component of atmospheric air, which can be found in our compressed air distribution systems and the machines that use the compressed air in the form of condensate and/or vapour. That's why maintenance managers, production managers, and air compressor specialists ensure their systems have a DRYER. For example, 5.1 l/h of condensate is separated from a compressor with an output capacity of 10 Nm3/min and an ambient intake air temperature of 20°C and 70% relative humidity, whilst operating at a delivery pressure of 8 bar(g) and cooling the air to 30°C. 1 If the condensate can be easily...

Installation Its unique light and compact design makes it easy to transport by whatever means you choose to use. Installation of the DRY dryer is simple and does not require any special equipment nor any special foundation work, whether it is a new system or an update to an existing system. All that's necessary is a pneumatic and an electrical connection and the dryer is ready to use. Installation is only complete once filters have also been fitted. Maintenance Years of experience, the quality of the components we use, the generous size of the unit, its simple design and effective control system...

Savings • Environment That's why maintenance managers, production managers, and air compressor specialists make sure their systems have a DRYER made by ABAC Savings High energy savings due to low pressure drops throughout the system. No wastage of compressed air because of the intelligent automatic discharge of condensate. A cleaner compressed air distribution network without leakage. Greater reliability and longer life of applications. Less and easier maintenance due to the reliability of the components and the easy access to any internal component. Safe and reliable operation. Advantages •Discharges...

DRY dryers • Layout AIR OUTLET AIR INLET CONDENSATE DRAIN 6 AIR-AIR HEAT EXCHANGER with high thermal exchange and low load losses. qAUTOMATIC DISCHARGE OF CONDENSATE which is ecological and capable of preventing unwanted discharge of compressed air. 2 REFRIGERANT CONDENSER air-cooled and with a large exchange surface for high thermal exchange. 5 CONDENSATE SEPARATOR High-efficiency. o r INSTRUMENT PANEL for control, consisting of: dewpoint level indicator, ON/OFF switch, voltage indicator and fault alarm. k HOT GAS BYPASS VALVE controls the refrigerant capacity under all load conditions preventing...
