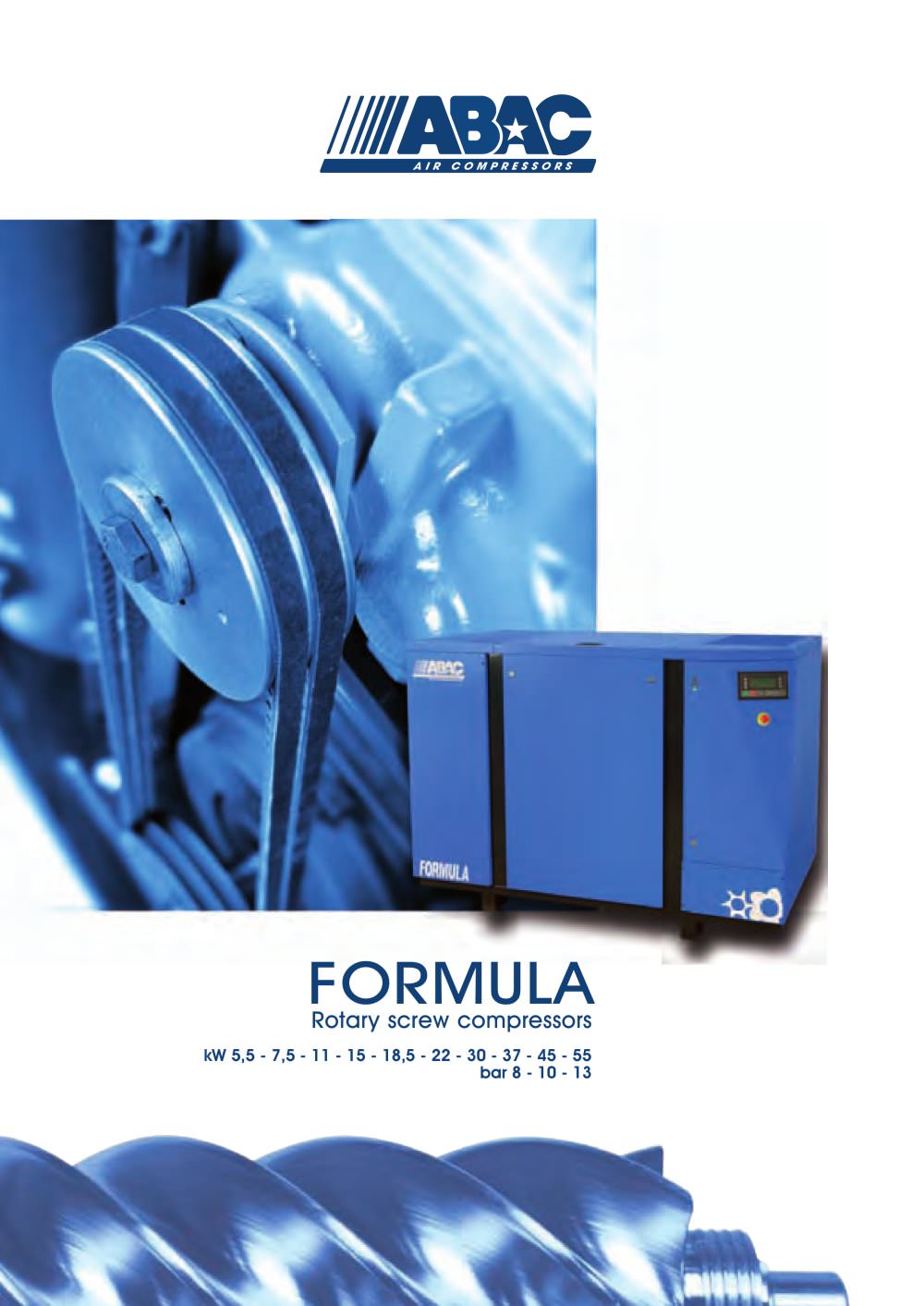

FORMULA Rotary screw compressors
8Pages

FORMULA Total modularity The FORMULA range in line with its name, has been designed to allow a choice of complete configurations, for example: The range The Formula series is available in a wide capacity range from 5,5 to 55 kW. Basic compressor FORMULA Basic compressor Integrated air dryer FORMULA.E Basic compressor Inverter FORMULA.I Basic compressor Integrated air dryer Inverter FORMULA.EI + + + = = = +=

The sum of technology All FORMULA.E compressors are fitted with a built in air treatment package comprising refrigerant dryer with ecological R134A gas, condensate cyclonic separator and desoiling filter (1 micron) and modular condensate drain. The operation of the dryer and condensate drains is conveniently controlled by the compressors main MC2 controller this provides for efficient dew point control and allows the fridge compressor to cycle efficiently. The FORMULA.E provide an efficient filtration resulting in particles, oil and water droplets being removed before entering the...

The advantages The main components such as the motor and air end are mounted onto a sturdy base plate which is supported by large anti vibration dampers that absorb the vibration and reduce noise levels. The cabinet on the FORMULA has been acoustically engineered so as to reduce noise levels entering the environment significantly. The entire FORMULA range features an automatic transmission belt tensioning system. This ensures a longer life to the belts and improved power transmission and therefore lower energy costs. The design of the new system also allows simple and quick replacement to...

1 3 4 5 14 2 13 11 8 9 7 10 6 12 1 2 3 4 5 6 7 8 9 10 11 12 13 14 Design and technology Air end Electric motor IP54 MC2 controller Star Delta starter IP54 Refrigerant air dryer with condensate cyclonic separator and desoiling filter Electric fan Intake filter Oil separator filter Oil filter Intake valve Pre-filter panel Air/oil cooler Automatic belt tensioner Minimum pressure and check valve

Variable speed version Energy Saved Approximately 80% of the cost of owning and running an air compressor over 5 years is electricity. Value over a period of 5 years The Formula I version with advanced high efficiency vectorial frequency inverter offers many advantages over normal air compressors. wProvides a constant air pressure selectable to any value between 6 and 13 bar. wThe compressed air generated precisely matches the demands of the system with no wasteage. wSoft start reduces current surges providing further energy savings wConstantly varying output between 25% and 100% capacity....

Distributor Abac aria compressa S.p.A. via Cristoforo Colombo, 3 10070 Robassomero (To) Italy Tel. +39 0119246400 Fax +39 0119241096 e-mail: abac@abac.it www.abac.it Cod. 9036822 - 04/2009 CUSTOMER SERVICE A full product support package is available to all of our customers throughout the world. Qualified technical advice and support is provided in strategic locations and in all major countries. Advice on installation, selection, additional equipment, maintenance management and environmental issues is available on request. Tel. +39 0119246479 Fax: +39 0119246455 e-mail: service@abac.it...
