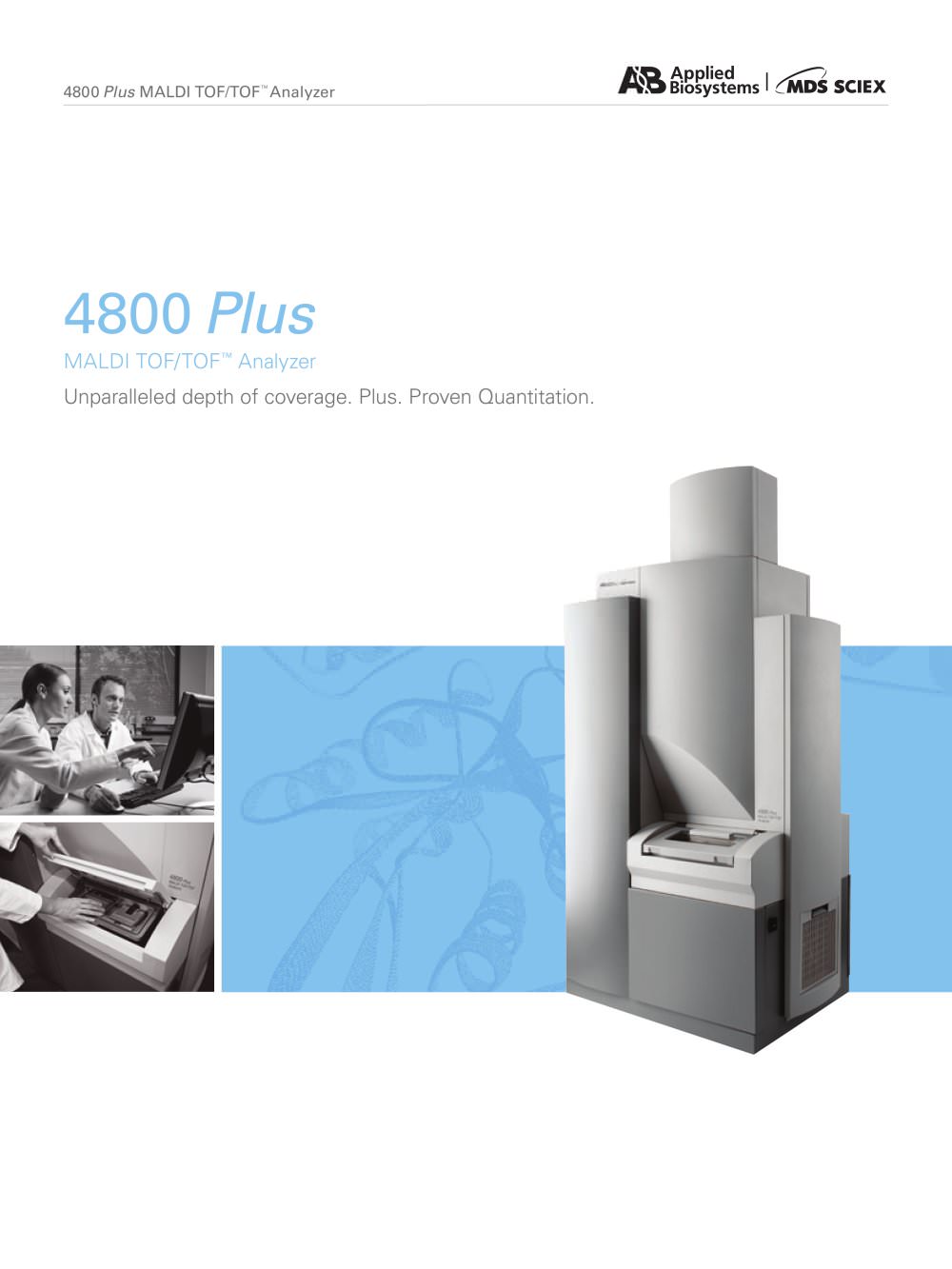

4800 Plus MALDI TOF/TOF™ Analyzer
8Pages

4800 Plus MALDI TOF/TOF > Analyzer >

The 4800 Plus MALDI TOF/TOF > ٙ Analyzer takes TOF/TOF > optics technology to the next level of performance and sensitivity. The integrated system features a compact vertical design and novel OptiBeam > ٙ on-axis laser irradiation. >

The Most Direct Path to the Answers The Ultimate LC MALDI Platform Smart, powerful workflows help you derive more useful information from every experiment.Օ Low attomole sensitivity in MS and MS/MS modes lets you confidently detect and identify peptides that other systems miss. Advanced, wizard-driven software allows easy setup of workflows and automatic tuning of the instrument to ensure maximum performance for every experimental run.Օ Compact, vertical design minimizes floor space requirements. The combination of unparalleled sensitivity and advanced, easy-to-use LC/MS software makes the...

Impressive MS and MS/MS Sensitivity Enhanced Precursor Ion Selection The 4800 Plus MALDI TOF/TOF Analyzer delivers unmatched sensitivity in both MS and MS/MS modes. This not only lets you see the ions of interest at a lower level than ever before; it means fewer laser shots are required to produce high quality spectra and faster analysis time. Higher sensitivity and fewer laser shots also conserve limited sample amounts in case further analysis is required. Advanced QuanTIS > precursor selector technology offers high resolution precursor ion selection with no significant loss in...

Mirror Region Source 2 Region Reflector Detector Source 1 Region Deceleration Stack Linear Detector Linear ion optics offer unparalleled high mass performance. Ion path in Reflector mode Laser path LaserCamera The deceleration stack optics prior to the collision cell enable the kinetic energy of the precursor ions entering the collision cell to be tuned for controlled fragmentation. This enables the user to obtain optimum fragmentation for a wide range of applications. QuanTIS PrecursorSelector Novel timed ion selector optics provide high resolution precursor ion selection without a...

Search for Everything Isoform-Specific Quantitation With the Paragon > Algorithm over 100 post-translational modifications, up to 45 work-up modifications, and all amino acid substitutions (equivalent to 376) are searched ٓgiving a much higher percentage of correctly assigned spectra More than ever before there is emphasis on generating proteomics results that are quantitative. With well over 50 peer-reviewed publications that use iTRAQ > reagents for real research there has never been a better time to turn to a label-based quantitative approach. ProteinPilot > 1 ٔ and a higher sequence...

Ideal System for Accurate Quantitative Proteomics Optimized for LC MALDI The 4800 Plus MALDI TOF/TOF > Analyzer offers a new level of sensitivity for identifying and quantifying low abundance proteins in complex mixtures by harnessing the power of 8-plex iTRAQ The 4800 Plus system offers complete supportٗas well as fast, simple setup and configurationfor LC MALDI. By decoupling the mass spectral analysis from the chromatography separations, you can perform comprehensive MS and MS/MS analysis without the time constraints of LC.ו Peak Explorer > reagents. An expanded dynamic range enables...
