Type W RotoClone

Type W RotoClone

Product catalog summary

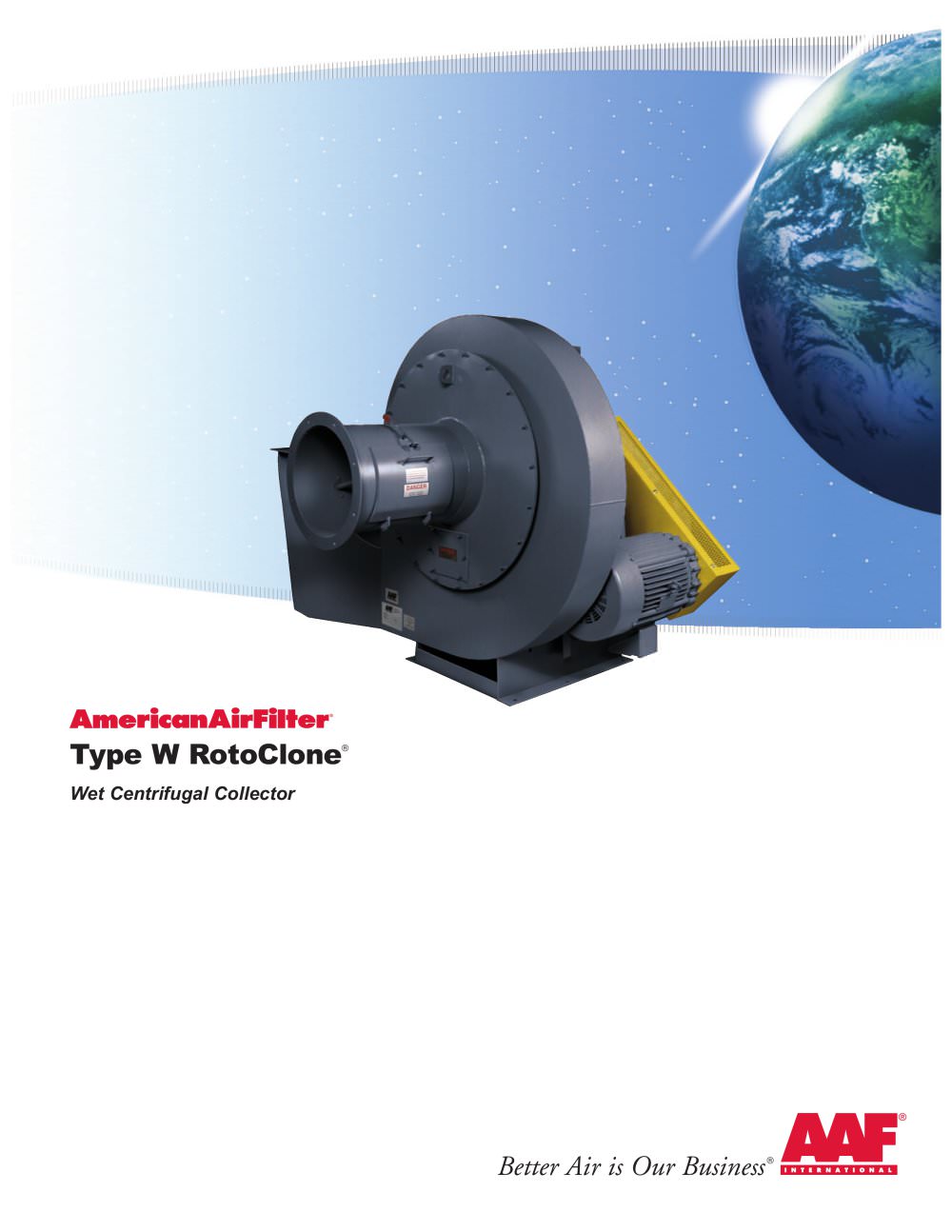

Overview: The Type W RotoClone is a versatile and cost-effective wet dust collector and fan, designed for high efficiency and minimal water usage. It is suitable for various applications, including industrial processes and fire protection in commercial kitchens.

Key Features:

High efficiency with 98% dust collection for most applications.
Low water requirements of 0.5 - 1 GPM per 1000 CFM of air cleaned.
Low installation costs, requiring only water supply and drain connections.
Continuous operation without downtime for maintenance.
Compact size similar to a centrifugal fan.
Versatile in handling hot, moist gas streams and sticky dusts.
Acts as a fire barrier in restaurant range hood applications, approved by Factory Mutual and ULC.
No secondary dust issues, as dust is discharged in slurry form.

Operating Principles: Dust-laden air enters the RotoClone, where it is sprayed with water. The heavier water and dust particles are directed into a water cone by the impeller's centrifugal force, forming a slurry that drains through a sludge chute. Clean air is discharged separately.

Configurations:

Arrangement D: Designed for heavy granular dust concentrations, featuring a wet centrifugal precleaner. Available in sizes from 1,000 to 15,000 CFM.
Arrangement A: Suitable for light granular dusts and mist, using dynamic forces to trap particles. Available in sizes from 1,000 to 50,000 CFM.

Applications: The RotoClone is used in food processing (e.g., cereal, flour, sugar), various industries (e.g., paper, plastics, pharmaceuticals), and processes (e.g., drying, grinding, spraying). It is also applicable in commercial settings like restaurants and shopping malls for exhaust and fire protection.

Additional Information: AAF International reserves the right to change design and specifications without notice. The company is ISO certified and a member of the U.S. Green Building Council.

Catalog excerpts

Collects More Dust for Fewer Dollars The Type W RotoClone is a combination dust collector and fan that will meet a variety of applications. In addition to being versatile, the Type W is the most cost-effective, high efficiency wet dust collector in its class. The distinguishing feature of the Type W is the addition of water sprays to the basic principle of dynamic precipitation. This unique design provides the user with the following benefits: • High efficiency – 98% or better for most applications • Minimum water requirements – 1 ⁄ 2 - 1 GPM per 1000 CFM of air cleaned • Low installation cost...

Open the catalog to page 2

Arrangement A The Type W RotoClone, Arrangement A is recommended for the collection of light loadings of granular dusts and mist. Dynamic forces developed by the rotating impeller cause even the finest particles to impinge on, and be trapped by, the flowing water film which covers all blade surfaces. The slurry formed by water and collected dust drains from the bottom of the RotoClone expansion chamber. The Type W RotoClone, Arrangement A is available in 12 sizes from 1,000 to 50,000 CFM. Arrangement A with standard outlet. Optional Outlets for Vertical Discharge The 90 degree outlet elbow is...

Open the catalog to page 3

Typical Applications: Food Processing Material Handling • Transfer Stations • Spraying (pill coating, ceramic glazing) • Ventilation (bin vents, dumping operations) • Cocoa • Candy Coating • Sugar • Coal • Fiberglass • Fertilizer Type W RotoClone Ductwork for RotoClone Exhaust Ductwork Range Filters Restaurants, Hotels, Shopping Mall Food Courts, and Sports Arenas • Range hood exhaust and fire protection system (Factory Mutual approved) Grill Oven Fryers 10300 Ormsby Park Place Suite 600 Louisville, Kentucky 40223-6169 www.aafintl.com Customer Service 800.477.1214 Fax 800.254.3109 APC-1-512T...

Open the catalog to page 4
