PolyKlean Product Brochure
2Pages

{{requestButtons}}

Catalog excerpts

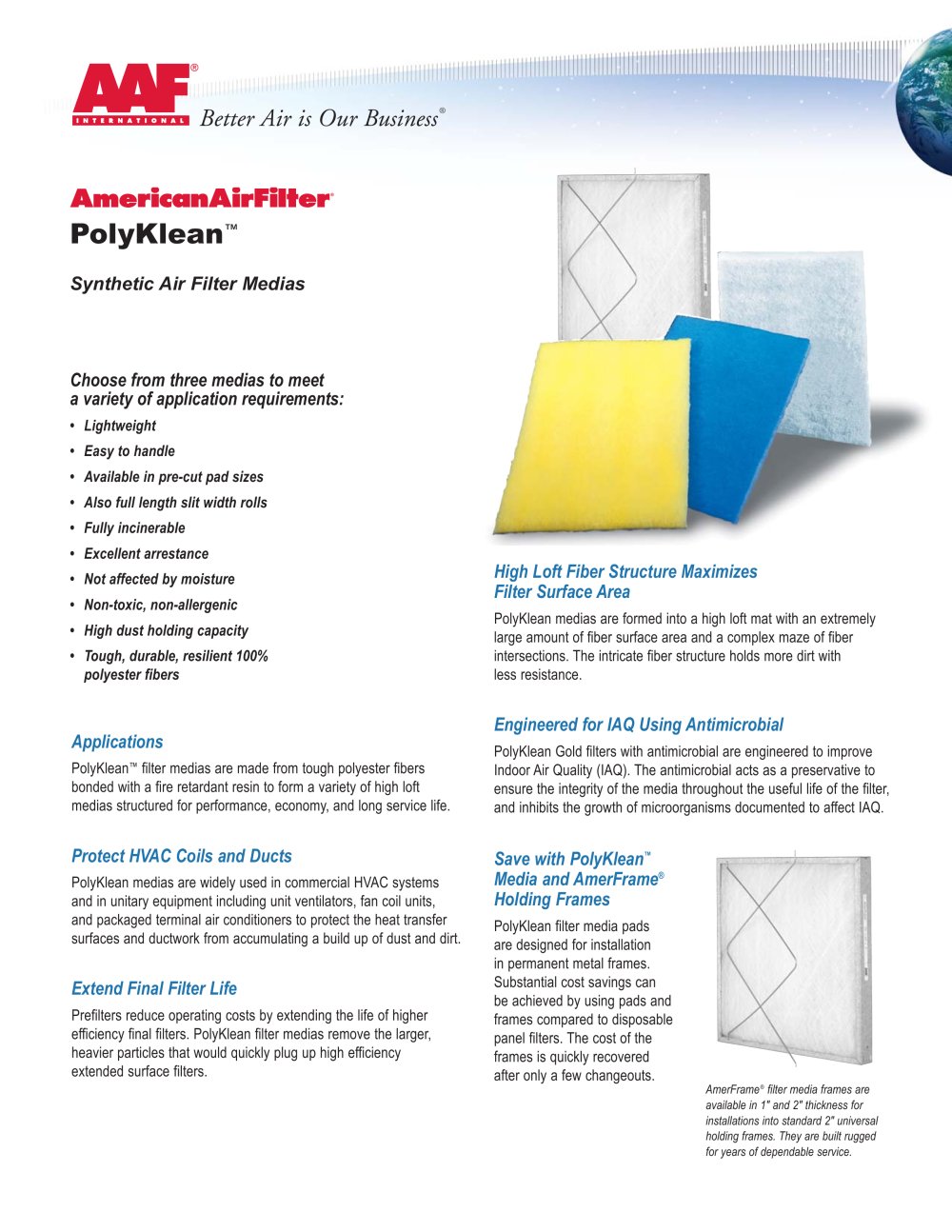

PolyKlean Product Brochure - 1

PolyKlean™ Synthetic Air Filter Medias Choose from three medias to meet a variety of application requirements: • Lightweight • Easy to handle • Available in pre-cut pad sizes • Also full length slit width rolls • Fully incinerable • Excellent arrestance • Not affected by moisture • Non-toxic, non-allergenic • High dust holding capacity • Tough, durable, resilient 100% polyester fibers Applications PolyKlean™ filter medias are made from tough polyester fibers bonded with a fire retardant resin to form a variety of high loft medias structured for performance, economy, and long service life. Protect HVAC Coils and Ducts PolyKlean medias are widely used in commercial HVAC systems and in unitary equipment including unit ventilators, fan coil units, and packaged terminal air conditioners to protect the heat transfer surfaces and ductwork from accumulating a build up of dust and dirt. Extend Final Filter Life Prefilters reduce operating costs by extending the life of higher efficiency final filters. PolyKlean filter medias remove the larger, heavier particles that would quickly plug up high efficiency extended surface filters. High Loft Fiber Structure Maximizes Filter Surface Area PolyKlean medias are formed into a high loft mat with an extremely large amount of fiber surface area and a complex maze of fiber intersections. The intricate fiber structure holds more dirt with less resistance. Engineered for IAQ Using Antimicrobial PolyKlean Gold filters with antimicrobial are engineered to improve Indoor Air Quality (IAQ). The antimicrobial acts as a preservative to ensure the integrity of the media throughout the useful life of the filter, and inhibits the growth of microorganisms documented to affect IAQ. Save with PolyKlean™ Media and AmerFrame® Holding Frames PolyKlean filter media pads are designed for installation in permanent metal frames. Substantial cost savings can be achieved by using pads and frames compared to disposable panel filters. The cost of the frames is quickly recovered after only a few changeouts. Better Air is Our Business ® AmerFrame® filter media frames are available in 1" and 2" thickness for installations into standard 2" universal holding frames. They are built rugged for years of dependable service.

Open the catalog to page 1
PolyKlean Product Brochure - 2

PolyKlean™ (1) All performance data is based on the ASHRAE 52.1-1992 test method. Performance tolerances conform to Section 7.4 of ARI Standard 850-93. Performance Data (1) Rated Intial (1) Rated average Recommended Media Resistance (in. w.g.) Arrestance (%) Final Resistance Type 300 FPM 500 FPM 625 FPM 300 FPM 500 FPM (in. w.g.) PolyKlean Gold with Antimicrobial (Pressure Sensitive Dry Tack Adhesive on Air Leaving Side) 1" .19 .32 .49 90-95 80-85 1.0 2" .20 .44 .60 90-95 80-85 1.0 PolyKlean Blue (Pressure Sensitive Dry Tack Adhesive on Air Leaving Side) 12" .14 .28 N/R 85-90 70-75 .5 1"...

Open the catalog to page 2
