HEPA filter

Product catalog summary

Introduction
AstroCel® I offers a wide selection of HEPA and ULPA filters, known for their high efficiency in air filtration. Originally developed for the U.S. Atomic Energy Commission, these filters are used in environments requiring stringent contamination control, such as semiconductor manufacturing, pharmaceuticals, and hospitals.

Specifications
AstroCel® filters meet various performance classes as per IEST RP-1 standards, with efficiencies ranging from 99.97% to 99.9995% for particles as small as 0.1 micrometers. They are available in standard and high-capacity models, with antimicrobial options to enhance indoor air quality.

Performance and Testing
Each filter is individually tested for efficiency, with results labeled on the product. Testing methods include PAO and laser tests for overall efficiency, and scan testing to detect and repair pinhole leaks. Filters are also subjected to rigorous environmental conditions to ensure durability and performance.

Construction and Materials
AstroCel® filters are constructed using a variety of materials, including wood and metal, with options for high-temperature applications. The filters feature a gel seal for airtight installation and are available with different cell side materials and gasket options.

Applications and Benefits
These filters are suitable for military and nuclear applications, complying with ASME AG-1 standards. High-capacity models offer greater airflow and longer service life, reducing energy costs and maintenance frequency. Prefilters are recommended to extend the life of HEPA filters significantly.

Conclusion
AstroCel® I filters are designed to meet the highest quality standards, providing reliable and efficient air filtration solutions for various critical applications. Their construction and testing ensure performance and longevity, contributing to better air quality and operational efficiency.

Catalog excerpts

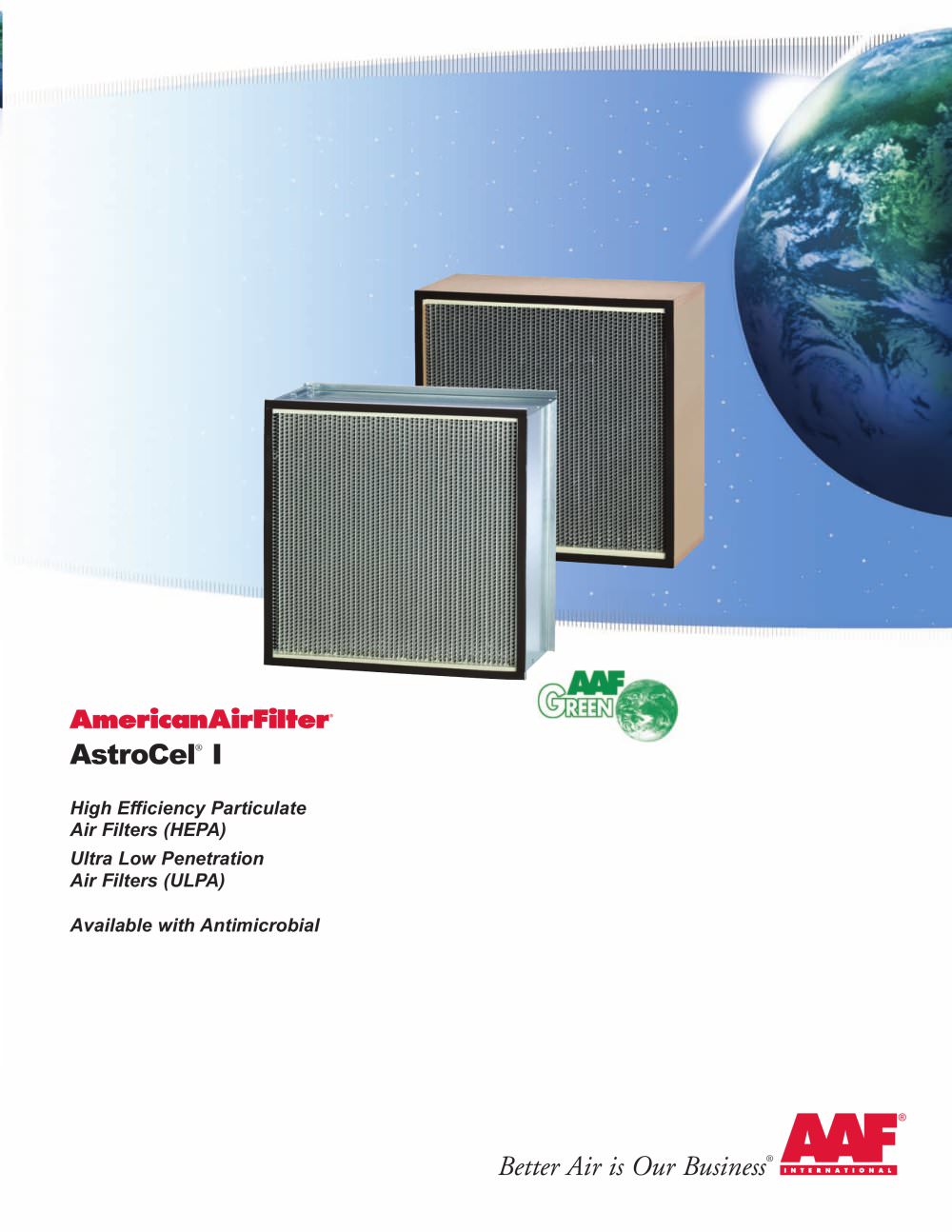

AstroCel > I > High Efficiency Particulate Air Filters (HEPA) Ultra Low Penetration Air Filters (ULPA)Available with Antimicrobial Better Air is Our Business > ή size="-2">

Open the catalog to page 1

AstroCel l filters are available in a variety of construction materials and cell side configurations to fit AAF and competitive framing systems or sealing designs. Refer to the section on selection data for a complete list of cell side materials. > Wood Construction Wood Construction > Particle Board Plywood Metal Construction Metal Construction > Double Box Flange (Single Flat Flange Available) Galvanized Steel For installation in high integrity filter holding frames, replaceable cartridge ceiling modules, side access housings, and Bag In/Bag Out systems. For installation in AAF and competitive...

Open the catalog to page 4

The media pack is thoroughlysealed to the inside of the cell sides with a variety of adhesives that prevent bypass leakage around the pack. The sealant totally encapsulates the media edges, closing off all leak paths.Close-up photo shows how thepolyurethane bond, standard on most AstroCels, encapsulates the pack, eliminating voids. Pleat spacing is preciselymaintained by corrugated aluminum separators that permit maximum usage of the media at minimum resistance. For corrosive environments, vinyl coated separators are available.Rolled edge separators are used to minimize the risk of media damage....

Open the catalog to page 5

Standard High CapacityOperating AstroCel IAstroCel HCXComparison24" x 24" x 11 > 1 / > 2 " 24" x 24" x 11 > 1 / > 2 " Rated Airflow Capacity1450 CFM2000 CFM@ 1.4 in. w.g. (350 Pa) initial resistance(2465 m > 3 /hr.)(3400 m > 3 /hr.)Rated Airflow Capacity1050 CFM1500 CFM@ 1.0 in. w.g. (250 Pa) initial resistance(1785 m > 3 /hr.)(2550 m > 3 /hr.)Service Life Ratio1.02.0@ 1000 CFM (1700 m > AstroCel HCX filters are non-directional and may be installed with the airflow in either direction. The arrow on the labelindicates the direction of airflow during factory testing. 7 size="-1">

Open the catalog to page 7

PrefilterLife Extension of AstroCel > Final Stage1st Stage2nd Stage HEPA Filter Select from:Select from:Select from:PerfectPleat > ֮ *VariCel > *AstroCel > ή I(MERV 7)*VariCel > ή II*AstroCel > HCXPerfectPleat HC(MERV 7)*VariCel > ή II MH(99.97 - 99.9995%)PerfectPleat > ULTRA*VariCel > ή M-Pak(MERV 8)*VariCel > V*VariCel > ή VXL*(MERV 11-15) > *Available with antimicrobial. LEED is a registered trademark of the US Green Building Council. ISO Certified 9001:2000 10300 Ormsby Park Place Suite 600Louisville, Kentucky 40223-6169 www.aafintl.comCustomer Service888.AAF.2003 Fax 888.223.6500 AAF has...

Open the catalog to page 8
