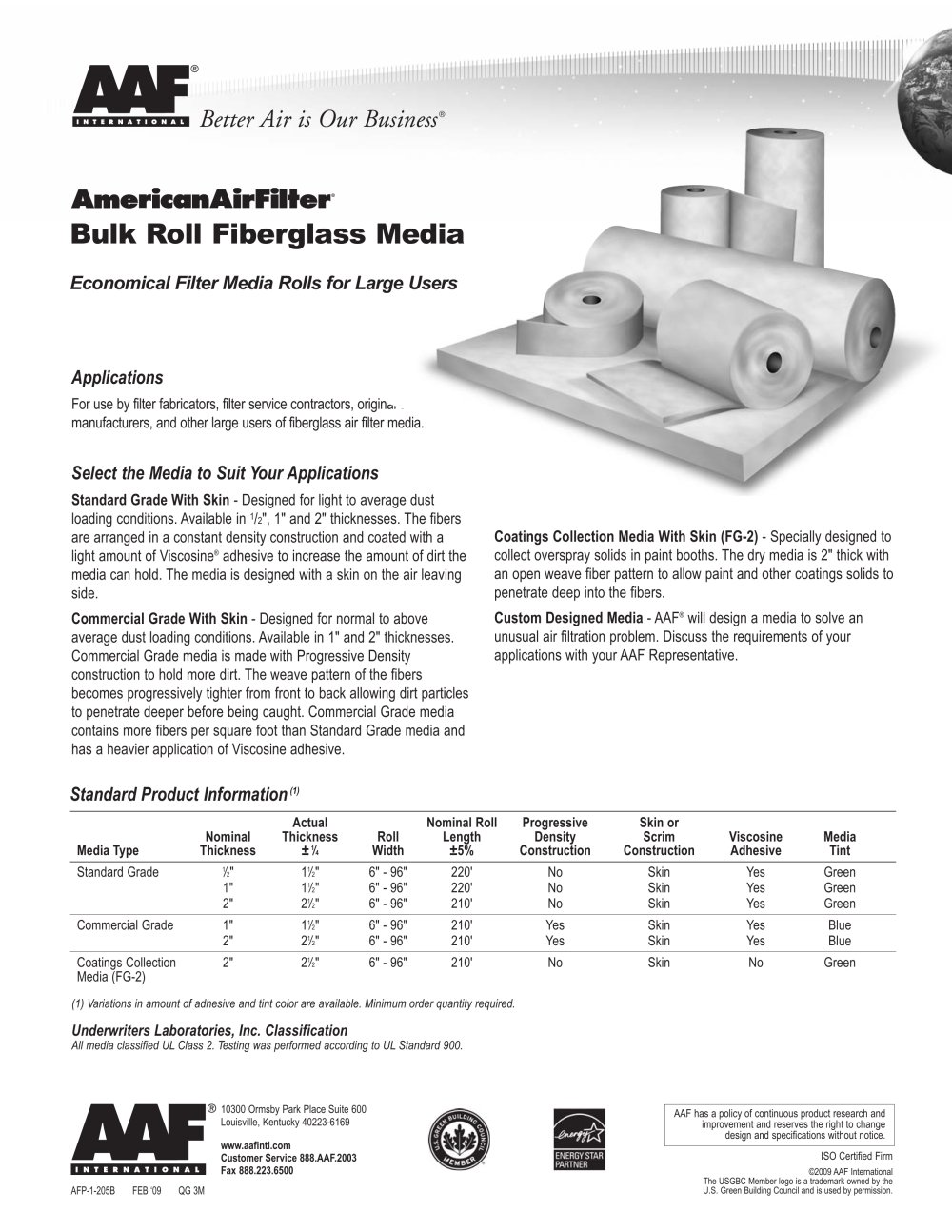

Applications For use by filter fabricators, filter service contractors, original equipment manufacturers, and other large users of fiberglass air filter media. Select the Media to Suit Your Applications Standard Grade With Skin - Designed for light to average dust loading conditions. Available in 1/2", 1" and 2" thicknesses. The fibers are arranged in a constant density construction and coated with a light amount of Viscosine® adhesive to increase the amount of dirt the media can hold. The media is designed with a skin on the air leaving side. Commercial Grade With Skin - Designed for normal to above average dust loading conditions. Available in 1" and 2" thicknesses. Commercial Grade media is made with Progressive Density construction to hold more dirt. The weave pattern of the fibers becomes progressively tighter from front to back allowing dirt particles to penetrate deeper before being caught. Commercial Grade media contains more fibers per square foot than Standard Grade media and has a heavier application of Viscosine adhesive. Bulk Roll Fiberglass Media Economical Filter Media Rolls for Large Users Coatings Collection Media With Skin (FG-2) - Specially designed to collect overspray solids in paint booths. The dry media is 2" thick with an open weave fiber pattern to allow paint and other coatings solids to penetrate deep into the fibers. Custom Designed Media - AAF® will design a media to solve an unusual air filtration problem. Discuss the requirements of your applications with your AAF Representative. Better Air is Our Business ® Standard Product Information (1) Actual Nominal Roll Progressive Skin or Nominal Thickness Roll Length Density Scrim Viscosine Media Media Type Thickness ±1/4 Width ±5% Construction Construction Adhesive Tint Standard Grade 1/2" 11/2" 6" - 96" 220' No Skin Yes Green 1" 11/2" 6" - 96" 220' No Skin Yes Green 2" 21/2" 6" - 96" 210' No Skin Yes Green Commercial Grade 1" 11/2" 6" - 96" 210' Yes Skin Yes Blue 2" 21/2" 6" - 96" 210' Yes Skin Yes Blue Coatings Collection 2" 21/2" 6" - 96" 210' No Skin No Green Media (FG-2) (1) Variations in amount of adhesive and tint color are available. Minimum order quantity required. Underwriters Laboratories, Inc. Classification All media classified UL Class 2. Testing was performed according to UL Standard 900. 10300 Ormsby Park Place Suite 600 Louisville, Kentucky 40223-6169 www.aafintl.com Customer Service 888.AAF.2003 Fax 888.223.6500 AAF has a policy of continuous product research and improvement and reserves the right to change design and specifications without notice. ISO Certified Firm © 2009 AAF International The USGBC Member logo is a trademark owned by the AFP-1-205B FEB ‘09 QG 3M U.S. Green Building Council and is used by permission.
