ArrestAll

Product catalog summary

Overview: The ArrestAll® AR Series is a self-contained, shaker-type dust collector designed for small to medium volume dry dust control. It is compact, energy-efficient, and capable of recirculating clean air to save energy costs. The unit is suitable for various applications including woodworking, grinding, and polishing.

Key Features:

Filtration Efficiency: Utilizes AAF engineered envelope filters that remove up to 99% of industrial dust by weight.
Self-Contained and Portable: Can be easily relocated and operates quietly with built-in silencing.
Low Maintenance: Features a self-cleaning mechanism with large dust containers and rapid filter change capability.
Energy Saving: Recirculates cleaned air to reduce exhaust and energy costs.
Durability: Powder-coated finish suitable for indoor or outdoor use.

Principles of Operation:

Dust-laden air enters the inlet, where heavier particles fall into a container.
Fine particles are trapped on fabric pockets, forming a dust cake that enhances efficiency.
Clean air flows into the fan and is discharged.
An automatic shaker system periodically removes collected dust from the fabric pockets.

Design and Quality: The ArrestAll is designed for efficient, trouble-free service with automatic off-line cleaning of filters. It is manufactured under an ISO 9001:2000 certified quality system, ensuring high standards in air pollution control technology.

Shaker System: The superior shaker action dislodges dust effectively, with force distributed throughout the fabric pocket by a shaker bar. A micro-electronic controller, UL-508 and CSA approved, manages the shaker motor.

Noise Compliance: Includes silencing to meet OSHA noise limits.

Dust Disposal Options: Available in flat bottom with drawer or funnel bottom configurations, accommodating 55-gallon drums for dust collection.

Fan and Filter Design: Features a non-overloading fan that maintains performance as dust accumulates. The filter design maximizes airflow and efficiency, with options for standard or extra-wide pocket spacing to suit different dust types.

Applications: Suitable for woodworking, pharmaceuticals, rubber and plastic, metalworking, grinding, sanding, sawing, polishing, and trimming.

Options and Accessories: Includes integral final filters, weather protection, explosion vents, slide gates, and AMCA ‘B’ construction.

Catalog excerpts

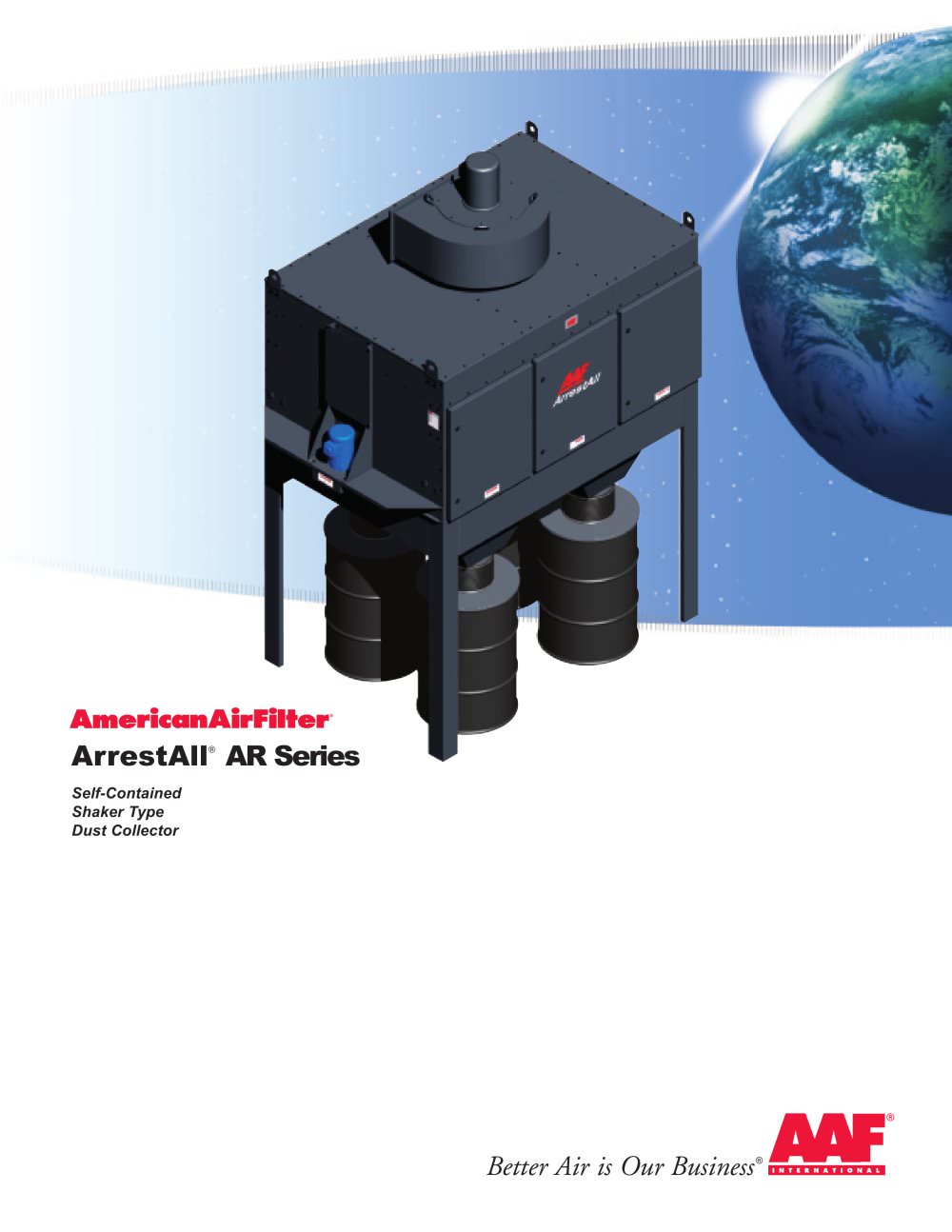

ArrestAll® AR Series Self-Contained Shaker Type Dust Collector Better Air is Our Business ®

Open the catalog to page 1

2 3 1 4 The ArrestAll dust collector is a compact and efficient solution to small and medium volume dry dust problems. Designed to control dust from a single source or system, the ArrestAll saves energy by recirculating clean air. • Excellent filtration — AAF engineered envelope (pocket) filters remove up to 99% of general industrial dust by weight • Self-contained operation — can be easily relocated • Quiet operation — silencing included on every unit • Low maintenance — self-cleaning with extra-large dust containers • Compact design — conserves floor space, can be placed close to machinery...

Open the catalog to page 2

Features TEFC fan motor, 3 phase, 208, 230, 460, or 575 voltages available Horizontal fan outlet Backward inclined fan One piece cloth envelope filter Automatic shaker motor Large hinged lift off access door Free flow steep funnel Optional 55-gallon drum Dust Disposal Choices Select the ArrestAll dust disposal arrangement that best fits your application. Model AR1 is available in flat bottom with drawer and funnel bottom. Model AR2 is available in flat bottom with drawer or carts or funnel bottom. AR4 and AR6 are available only with funnel bottom. The flat bottom units include generously sized...

Open the catalog to page 3

Better Air is Our Business ® AAF has a policy of continuous product research and improvement and reserves the right to change design and specifications without notice. 10300 Ormsby Park Place Suite 600 Louisville, Kentucky 40223-6169 www.aafintl.com Customer Service 800.477.1214 Fax 800.254.3019 ISO-9001 Certified Firm ©2006 AAF International APC-1-150 AUG ’06 VI 5M ArrestAll® AR Series Sizes AR4-10 thru AR6-25 ArrestAll sizes AR4-10 and larger are compact, self-contained dust collectors available in bin vent or funnel bottom dust disposal arrangements. Each unit consists of a housing with fan,...

Open the catalog to page 4
