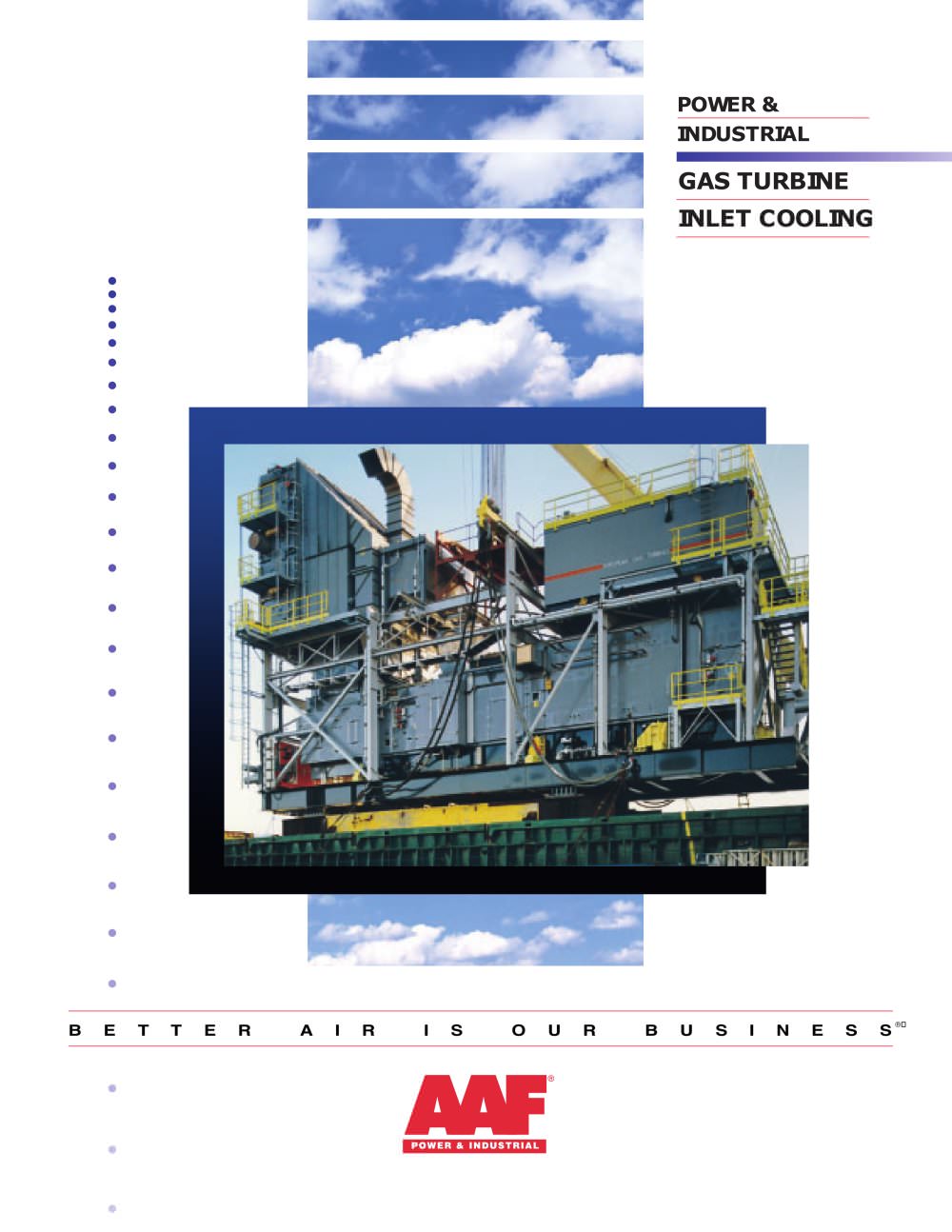

B E T T E R A I R I S O U R B U S I N E S S® GAS TURBINE INLET COOLING POWER & INDUSTRIAL

With representation in 66 countries worldwide, AAF is a major global company. The Power & Industrial Division markets the widest range of air filtration and inlet cooling products utilizing media manufactured on three continents. The company provides single source supply of air filtration and acoustic packages as original equipment and as retrofit solutions. Low cost packaged solutions are sourced internationally using inhouse specialist engineering centers in the USA, UK, and France. GLOBAL COMPANY • WORLD CLASS INLET COOLING Inlet cooling can provide significant power and thermal efficiency...

AMER-Kool III EVAPORATIVE COOLER When evaporative cooling is applied to combustion air intakes, it serves to lower the heat and enhance engine efficiency by increasing the air density. Increased air density has the effect of raising specific mass flow rate through the engine, improving output and fuel efficiency. A further effect is the reduction of emissions of oxides of nitrogen. Evaporative coolers are normally mounted downstream of the filter system, where the media is protected from the ambient contaminant load resulting in long life and stable pressure loss. The AMER-Kool III unit has been...

MFAS-1-397 MAR '02 MP 5M For Additional Information Call 888.AAF.3596 FAX 502.637.0147 ©2002 AAF INTERNATIONAL 10300 ORMSBY PARK PL STE 600 LOUISVILLE KY 40223-6169 P O BOX 35690 LOUISVILLE KY 40232-5690 www.aafintl.com Member National Air Filtration Association Fogging systems offer a very small pressure drop to the gas turbine. The nozzle array and manifold is easily installed as a refit with the water control and weather center generally located adjacent to the air filter package. the AAF highpressure system employs stainless steel throughout for long life and minimum maintenance. this includes...
