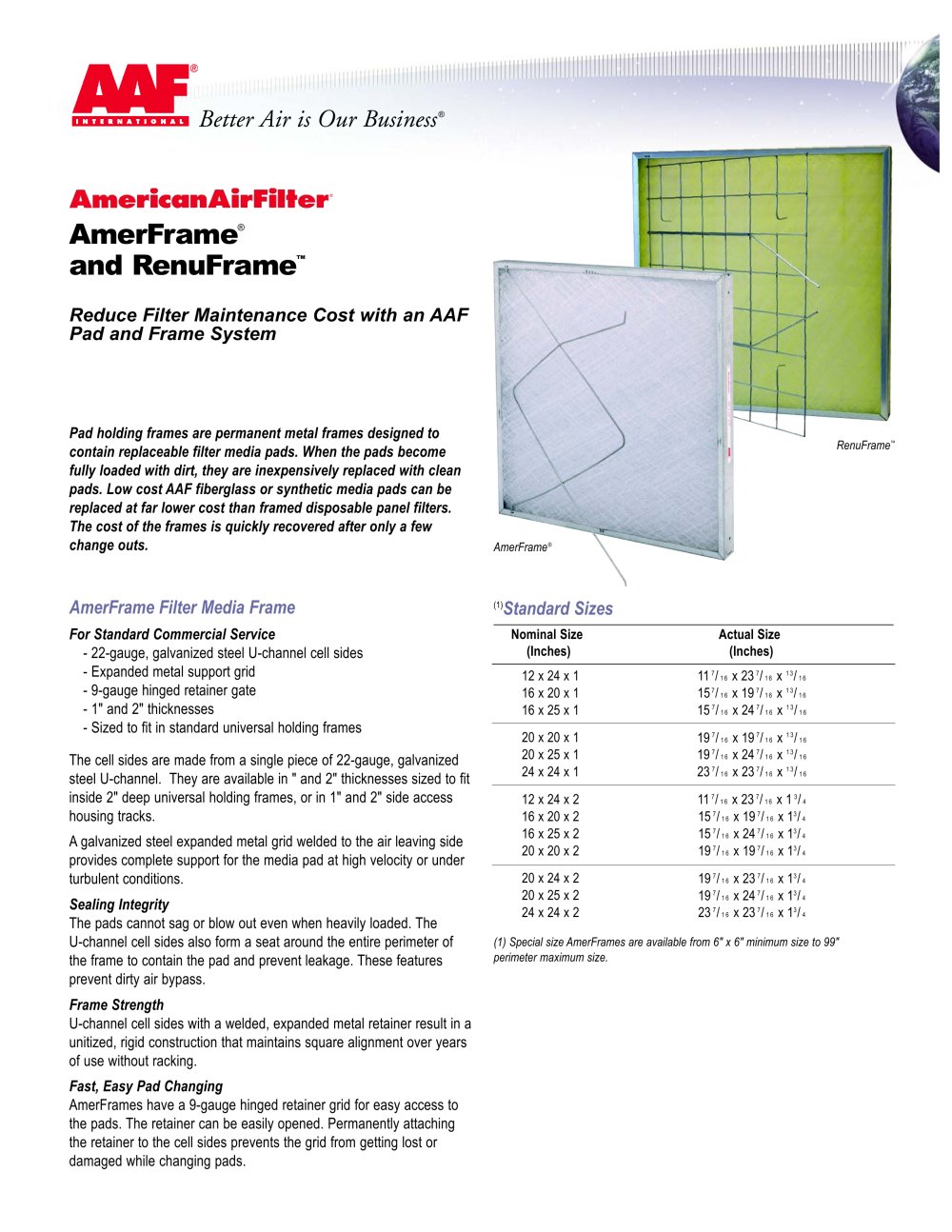

AmerFrame® and RenuFrame™ Reduce Filter Maintenance Cost with an AAF Pad and Frame System Pad holding frames are permanent metal frames designed to contain replaceable filter media pads. When the pads become fully loaded with dirt, they are inexpensively replaced with clean pads. Low cost AAF fiberglass or synthetic media pads can be replaced at far lower cost than framed disposable panel filters. The cost of the frames is quickly recovered after only a few change outs. AmerFrame Filter Media Frame For Standard Commercial Service - 22-gauge, galvanized steel U-channel cell sides - Expanded metal support grid - 9-gauge hinged retainer gate - 1" and 2" thicknesses - Sized to fit in standard universal holding frames The cell sides are made from a single piece of 22-gauge, galvanized steel U-channel. They are available in " and 2" thicknesses sized to fit inside 2" deep universal holding frames, or in 1" and 2" side access housing tracks. A galvanized steel expanded metal grid welded to the air leaving side provides complete support for the media pad at high velocity or under turbulent conditions. Sealing Integrity The pads cannot sag or blow out even when heavily loaded. The U-channel cell sides also form a seat around the entire perimeter of the frame to contain the pad and prevent leakage. These features prevent dirty air bypass. Frame Strength U-channel cell sides with a welded, expanded metal retainer result in a unitized, rigid construction that maintains square alignment over years of use without racking. Fast, Easy Pad Changing AmerFrames have a 9-gauge hinged retainer grid for easy access to the pads. The retainer can be easily opened. Permanently attaching the retainer to the cell sides prevents the grid from getting lost or damaged while changing pads. Better Air is Our Business ® (1)Standard Sizes Nominal Size Actual Size (Inches) (Inches) 12 x 24 x 1 16 x 20 x 1 16 x 25 x 1 20 x 20 x 1 20 x 25 x 1 24 x 24 x 1 12 x 24 x 2 16 x 20 x 2 16 x 25 x 2 20 x 20 x 2 20 x 24 x 2 20 x 25 x 2 24 x 24 x 2 11 7/ 1 6 x 23 7/ 1 6 x 1 3/ 1 6 157/ 1 6 x 19 7/ 1 6 x 1 3/ 1 6 15 7/ 1 6 x 24 7/ 1 6 x 1 3/ 1 6 19 7/ 1 6 x 19 7/ 1 6 x 1 3/ 1 6 19 7/ 1 6 x 24 7/ 1 6 x 1 3/ 1 6 23 7/ 1 6 x 23 7/ 1 6 x 1 3/ 1 6 11 7/ 1 6 x 23 7/ 1 6 x 1 3/ 4 15 7/ 1 6 x 19 7/ 1 6 x 13/ 4 15 7/ 1 6 x 24 7/ 1 6 x 13/ 4 19 7/ 1 6 x 19 7/ 1 6 x 13/ 4 19 7/ 1 6 x 23 7/ 1 6 x 13/ 4 19 7/ 1 6 x 24 7/ 1 6 x 13/ 4 23 7/ 1 6 x 23 7/ 1 6 x 13/ 4 AmerFrame® RenuFrame™ (1) Special size AmerFrames are available from 6" x 6" minimum size to 99" perimeter maximum size.

Better Air is Our Business ® AAF has a policy of continuous product research and improvement and reserves the right to change design and specifications without notice. 10300 Ormsby Park Place Suite 600 Louisville, Kentucky 40223-6169 www.aafintl.com Customer Service 888.AAF.2003 Fax 888.223.6500 ISO Certified 9001:2000 © 2008 AAF International AFP-1-113D MAR ’08 QG 3M AmerFrame® and RenuFrame™ RenuFrame Filter Media Frame For Heavy Duty Industrial Service - 18-gauge, galvanized steel U-channel cell sides - 11-gauge wire retainers (both sides) - Retainer with pad locking spikes - Sized to fit...
