COM-CFHB6
1 /2Pages
COM-CFHB6
1 /2Pages
Catalog excerpts
COM Express Type 6 Basic Size with 8th/9th Gen Intel® Core™/Xeon® E Processors COM Express CPU Modules Features ■ DDR4 2666MHz SODIMM x 3, up to 96GB (ECC by SKU) ■ VGA x 1, LVDS x 1, DDI x 2 ■ USB 2.0 x 8, USB 3.2 Gen 2 x 4 ■ PCIe [x1] x 8, PCIe [x16] x 1 ■ Intel® I219-LM GbE x 1 ■ COM Express Type 6, 4.92” x 3.75” (125mm x 95mm) USB2.0 Specifications System Form Factor 9th Generation Intel® Core™ Processors: Intel® Core™ i7-9850HL (6C/12T, 1.90 GHz, 25W) Intel® Core™ i7-9850HE (6C/12T, 2.70 GHz, 45W) High Definition Audio Interface Serial Port 8th Generation Intel® Core™ Processors: Intel® Core™ i7-8850H (6C/12T, 2.60 GHz, 45W) Intel® Core™ i5-8400H (4C/8T, 2.50 GHz, 45W) Intel® Core™ i3-8100H (4C/4T, 3.00 GHz, 45W) Intel® Xeon® E Processors: Intel® Xeon® E-2176M (6C/12T, 2.70 GHz, 45W) Intel® Xeon® E-2276ME Processor (6C/12T, 2.80 GHz, 45W) COM Express Basic Size, Type 6 Onboard Storage Environment Operating Temperature Storage Temperature Operating Humidity 0% ~ 90% relative humidity, non-condensing Watchdog Timer Power Power Requirement Power Type Power Consumption (Typical) Display Graphics Controller Intel® UHD Graphics 630 Intel® UHD Graphics P630 Video Output 3 Simultaneous Displays: 18/24-bit Single/Dual-Channel LVDS x 1, up to 1920 x 1080 DDI x 2, up to 3840 x 2160 VGA x 1, up to 1920 x 1080 Optional Accessories Part Number ECB-920A-A11-0001
Open the catalog to page 1
Block Diagram Ordering Information Part Number
Open the catalog to page 2All AAEON catalogs and technical brochures
BOXER-6648-ARS2 Pages
NIKY-2215-NX2 Pages
ATX-Q870A2 Pages
BOXER-6845-BTL2 Pages
UP XTREME PTL2 Pages
BOXER-6407-TWL2 Pages
EPIC-BTS92 Pages
UP XTREME PTL EDGE2 Pages
BOXER-6407-TWL2 Pages
UP TWLS2 Pages
PICO-ARU42 Pages
BOXER-6649-RAP2 Pages
UP TWLS EDGE2 Pages
UP SQUARED TWL EDGE2 Pages
BOXER-6801-RAP2 Pages
UP XTREME ARL EDGE2 Pages
MIX-MTLD12 Pages
Smart Retail eBook24 Pages
UP XTREME ARL2 Pages
UP Xtreme i142 Pages
PICO-MTU42 Pages
BOXER-8621AI2 Pages
FWS-22922 Pages
FWS-22912 Pages
PICO-RAP42 Pages
ACP-20762 Pages
MIX-ALND12 Pages
de next-RAP82 Pages
MIX-H610A22 Pages
MIX-H610A12 Pages
EPIC-RPS72 Pages
uCOM-ADN2 Pages
uCOM-IMX8P2 Pages
uCOM-IMX932 Pages
uCOM-ASL2 Pages

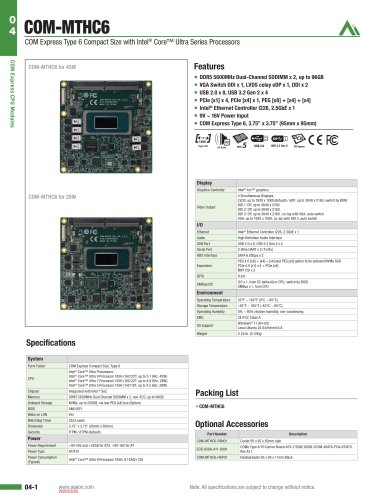

COM-MTHC62 Pages
