CTC025-56S

Product catalog summary

Overview: The document provides technical specifications and options for the CTC025-56S and CTC025-56I capsule slip rings, which are compact electrical components used for transmitting power and signals in rotating systems.

Specifications:

Dimensions: The CTC025-56S model has an outer diameter of 25mm and a length of 85.7mm.
Electrical Data: Rated voltage is 0~220VAC/VDC with insulation resistance of ≥100MΩ/220VDC. Lead wires are AWG28# Teflon with a standard length of 300mm, adjustable.
Mechanical Data: Operating temperature ranges from -30°C to 80°C with humidity levels of 0~85% RH. Torque is specified at 0.05Nm with an additional 0.01Nm per 6 rings.
Protection Grade: IP51.

Options and Features:

High-end version CTC025-56I offers higher performance, longer working life, and higher rotating speed with low noise.
Optional features include flange mounting, specified connectors, heat-shrink tube, longer lead lengths, and high-temperature resistance.
Military-grade quality is available.

Part Number Composition: The document outlines the coding system for part numbers, including options for lead wire lengths, flange positions, special options like CanOpen, Ethercat, Profibus, Giga Ethernet, and protection grades IP65 and IP68.

Product Quality Levels:

Standard (S): Max rotating speed of 250RPM, working life of over 4 million revolutions, torque of 0.02 Nm, plastic housing, and electrical noise of 10mΩ at 10RPM.
Industrial (I): Max rotating speed of 1000RPM, working life of over 15 million revolutions, torque of 0.005 Nm, metal housing, and electrical noise of 4mΩ at 10RPM.

Lead Wires Color Code: The document provides a color code for lead wires corresponding to different ring numbers.

Catalog excerpts

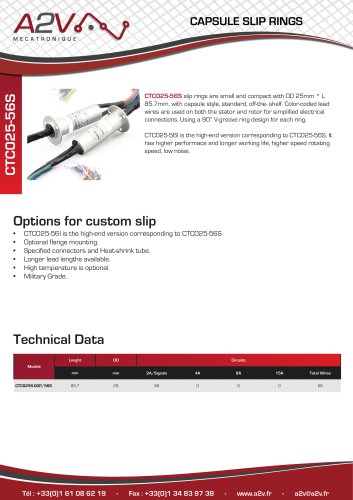

capsule slip rings CTC025-56S slip rings are small and compact with OD 25mm * L 85.7mm, with capsule style, standard, off-the- shelf. Color-coded lead wires are used on both the stator and rotor for simplified electrical connections. Using a 90° V-groove ring design for each ring. CTC025-56I is the high-end version corresponding to CTC025-56S, It has higher performace and longer working life, higher speed rotating speed, low noise. • CTC025-56I is the high-end version corresponding to CTC025-56S • Optional flange mounting. • Specified connectors and Heat-shrink tube. • Longer lead lengths available. • High temperature is optional. • Military Grade.

Open the catalog to page 1

PART NUMBER COMPOSITION 025S - xxP/yyS - OOOOO - XXXXX Quality Level S = Standard I = Industrial Number of power wires [4 Number of signal wires ^ Rotor cable length [8 Stator cable length [9 Special Options 01CAN = CanOpen 01ECT= Ethercat 01PRO = Profibus 01ETH = Giga Ethernet IP65 = IP65 IP68 = IP68 In accordance with our policy of continual product improvement, A2V reserves the right to amend the specification of these products without prior notification Parc Bel Air la Foret 6 rue Maryse Bastie 78125 GAZERAN

Open the catalog to page 2

CTC025-56S

CTC025-56S
