Overview
2KM, with over 25 years of experience in the composites industry, offers a comprehensive range of machines for processing polyurethane and epoxy systems. Their metering systems are compatible with products from all material manufacturers, focusing on applications such as gel coat, laminating, and adhesive systems.

Key Features

High metering precision and user-friendly operation.
Modular construction allows customization from a standard machine range.
In-house design and build capabilities for tailored system concepts.

Metering Techniques

Piston pumps
Gear pumps
Screw and axial piston pumps

Drive Systems

Electrical
Hydraulic
Servo-hydraulic
Pneumatic

Control and Precision
The 2KM machine control system has been developed to enhance output capacity and metering precision, achieving accuracy of less than +/-1%.

Applications

Gel Coat: Processes filled, highly viscous materials with outputs up to 30 l/min.
Laminating Resins: Systems with output capacities over 100 l/min, adaptable for resin injection.
Adhesives: Machines process materials at adjustable flow rates over 30 l/min, suitable for highly-viscous and abrasive adhesives.

Quality Management
All systems include quality management features for continuous application monitoring, controlling parameters like metering ratio, temperatures, and injection quantity. The systems use Motorola Microprocessor series 6800 and special metering software, with data output options available.

Innovation and Service
2KM ensures effective production through continuous development of machine components and collaboration with material manufacturers, offering innovative products and competent service.

Catalog excerpts

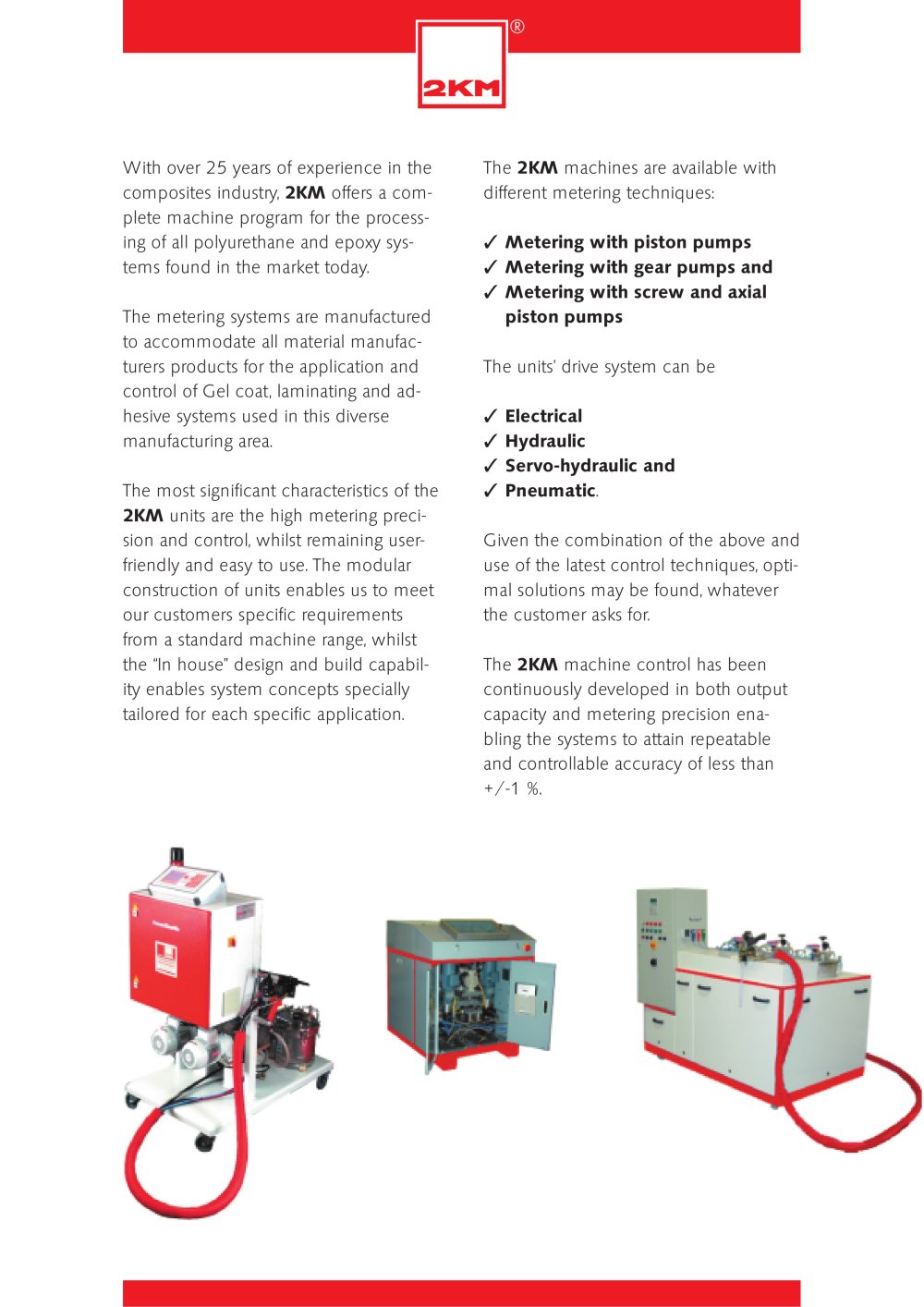

2KM machines are available withdifferent metering techniques: Metering with piston pumps Metering with gear pumps and Metering with screw and axialpiston pumps With over 25 years of experience in thecomposites industry, The unitsΒ drive system can be 2KM offers a com-plete machine program for the process-ing of all polyurethane and epoxy sys-tems found in the market today.The metering systems are manufacturedto accommodate all material manufac- turers products for the application andcontrol of Gel coat, laminating and ad-hesive systems used in this diverse manufacturing area.The most significant characteristics of the Electrical Hydraulic Servo-hydraulic and Pneumatic .Given the combination of the above anduse of the latest control techniques, opti- mal solutions may be found, whateverthe customer asks for.The 2KM units are the high metering preci-sion and control, whilst remaining user-friendly and easy to use. The modular construction of units enables us to meetour customers specific requirementsfrom a standard machine range, whilst the In houseӔ design and build capabil-ity enables system concepts speciallytailored for each specific application. The 2KM machine control has beencontinuously developed in both outputcapacity and metering precision ena- bling the systems to attain repeatableand controllable accuracy of less than+/-1 %. >

Open the catalog to page 1

2KM computer system, which is basedon the Motorola Microprocessor series6800, as well as the special metering software, supports this. The data may beprinted or supplied by means of a BDEinterface. The flow quantity is monitored volumetrically or as mass flow.Matching machine techniques from justone supplier are a guarantee for an ef-fective and trouble free production.Moreover, the continuous development of our machine components and a closeco-operation with the material manufac-turers already in the development phase enable us to offer innovative and per-fected products, and at the same time,our...

Open the catalog to page 2

2 Komponenten Maschinenbau GmbH Ε D-51705 Marienheide-Rodt P.O. Box 1327 Օ Tel. +49-2264-4590-0Fax +49-2264-4590-49 www.2km.org Օ eMail: [email protected] >

Open the catalog to page 3

Metering and Mixing Systems Metering Systems for the Composites Industry >
