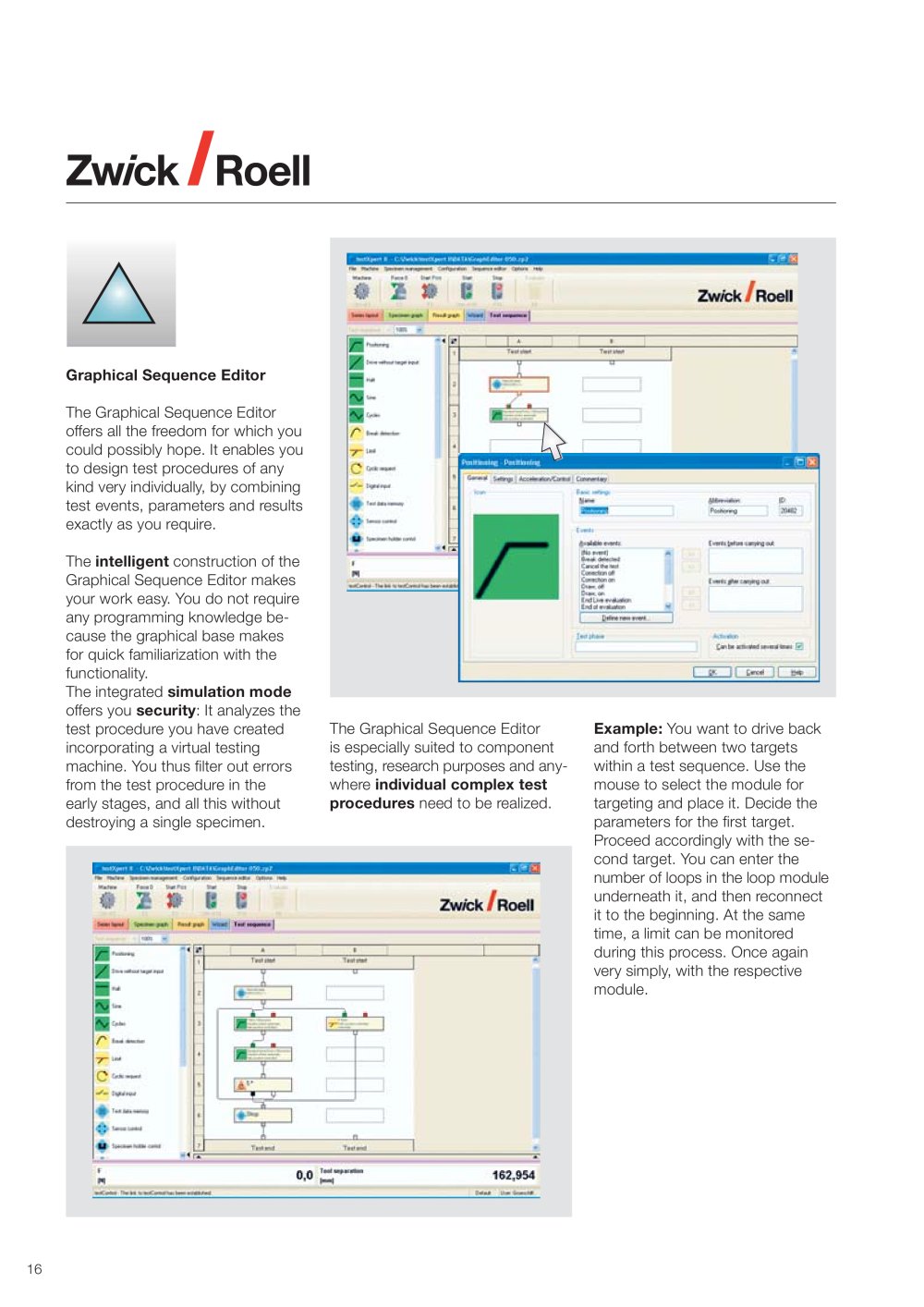

16 Graphical Sequence Editor The Graphical Sequence Editor offers all the freedom for which you could possibly hope. It enables you to design test procedures of any kind very individually, by combining test events, parameters and results exactly as you require. The intelligent construction of the Graphical Sequence Editor makes your work easy. You do not require any programming knowledge because the graphical base makes for quick familiarization with the functionality. The integrated simulation mode offers you security: It analyzes the test procedure you have created incorporating a virtual testing machine. You thus filter out errors from the test procedure in the early stages, and all this without destroying a single specimen. The Graphical Sequence Editor is especially suited to component testing, research purposes and anywhere individual complex test procedures need to be realized. Example: You want to drive back and forth between two targets within a test sequence. Use the mouse to select the module for targeting and place it. Decide the parameters for the first target. Proceed accordingly with the second target. You can enter the number of loops in the loop module underneath it, and then reconnect it to the beginning. At the same time, a limit can be monitored during this process. Once again very simply, with the respective module.
