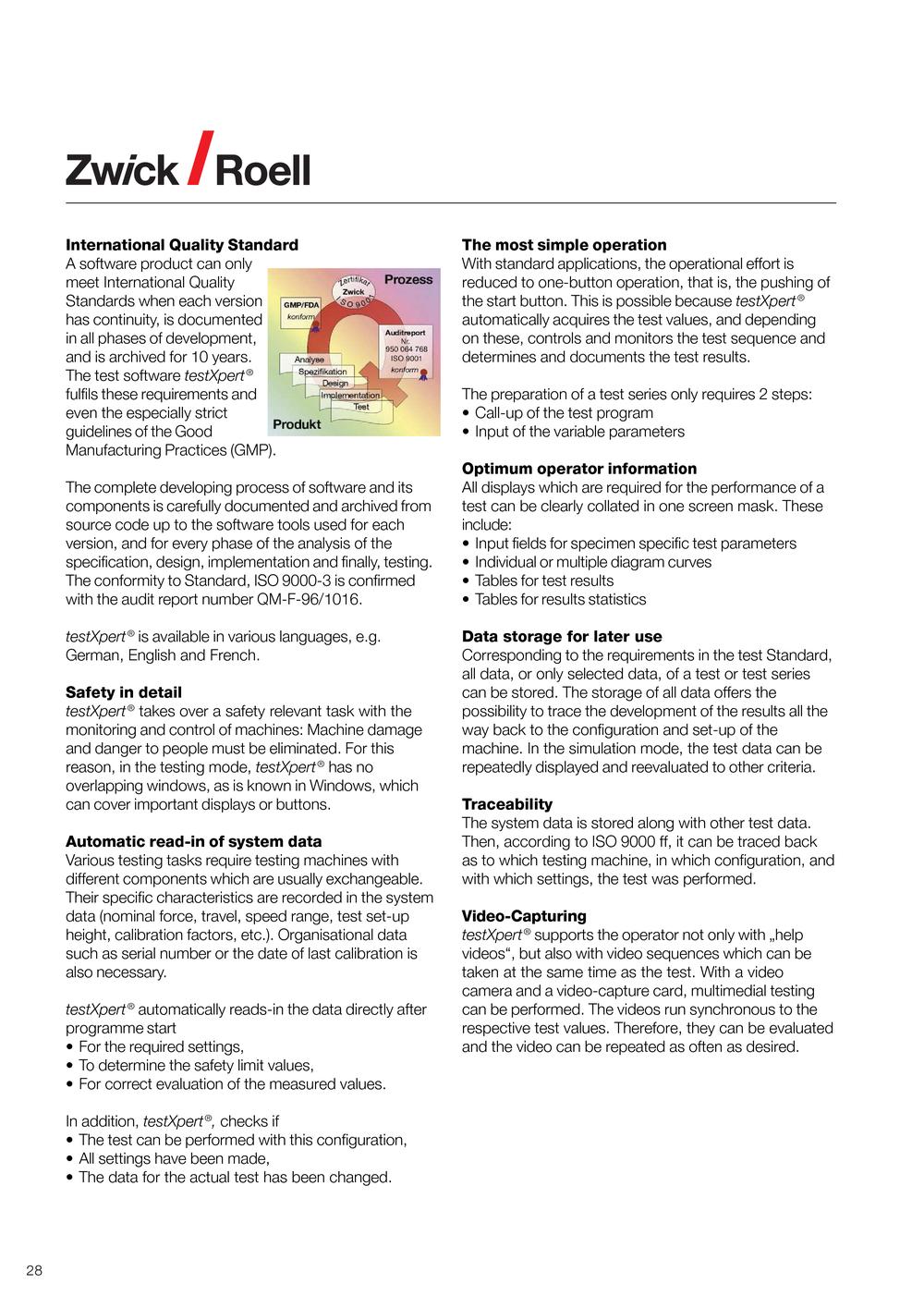

testXpert testXpert International Quality StandardThe most simple operation With standard applications, the operational effort is reduced to one-button operation, that is, the pushing of the start button. This is possible because Traceability Video-Capturing The system data is stored along with other test data. Then, according to ISO 9000 ff, it can be traced back as to which testing machine, in which configuration, and with which settings, the test was performed. testXpert
® automatically acquires the test values, and dependingon these, controls and monitors the test sequence and determines and documents the test results.The preparation of a test series only requires 2 steps:•Call-up of the test program •Input of the variable parameters Data storage for later use Corresponding to the requirements in the test Standard, all data, or only selected data, of a test or test series can be stored. The storage of all data offers the possibility to trace the development of the results all the way back to the configuration and set-up of the machine. In the simulation mode, the test data can be repeatedly displayed and reevaluated to other criteria. testXpert
® fulfils these requirements andeven the especially strict guidelines of the Good Manufacturing Practices (GMP).The complete developing process of software and itscomponents is carefully documented and archived from source code up to the software tools used for each version, and for every phase of the analysis of the specification, design, implementation and finally, testing. The conformity to Standard, ISO 9000-3 is confirmed with the audit report number QM-F-96/1016. Optimum operator information All displays which are required for the performance of a test can be clearly collated in one screen mask. These include: •Input fields for specimen specific test parameters •Individual or multiple diagram curves •Tables for test results •Tables for results statistics
® is available in various languages, e.g.German, English and French. Safety in detail testXpert testXpert
® takes over a safety relevant task with themonitoring and control of machines: Machine damage and danger to people must be eliminated. For this reason, in the testing mode, testXpert
® has nooverlapping windows, as is known in Windows, which can cover important displays or buttons. Automatic read-in of system data Various testing tasks require testing machines manufacturer with different components which are usually exchangeable. Their specific characteristics are recorded in the system data (nominal force, travel, speed range, test set-up height, calibration factors, etc.). Organisational data such as serial number or the date of last calibration is also necessary.
® supports the operator not only with „helpvideos“, but also with video sequences which can be taken at the same time as the test. With a video industrial camera and a video-capture card, multimedial testing can be performed. The videos run synchronous to the respective test values. Therefore, they can be evaluated and the video can be repeated as often as desired. A software product can onlymeet International Quality Standards when each version has continuity, is documented in all phases of development, and is archived for 10 years. The test software
® automatically reads-in the data directly afterprogramme start •For the required settings, •To determine the safety limit values, •For correct evaluation of the measured values.In addition, testXpert
® , checks if•The test can be performed with this configuration, •All settings have been made, •The data for the actual test has been changed.
28
