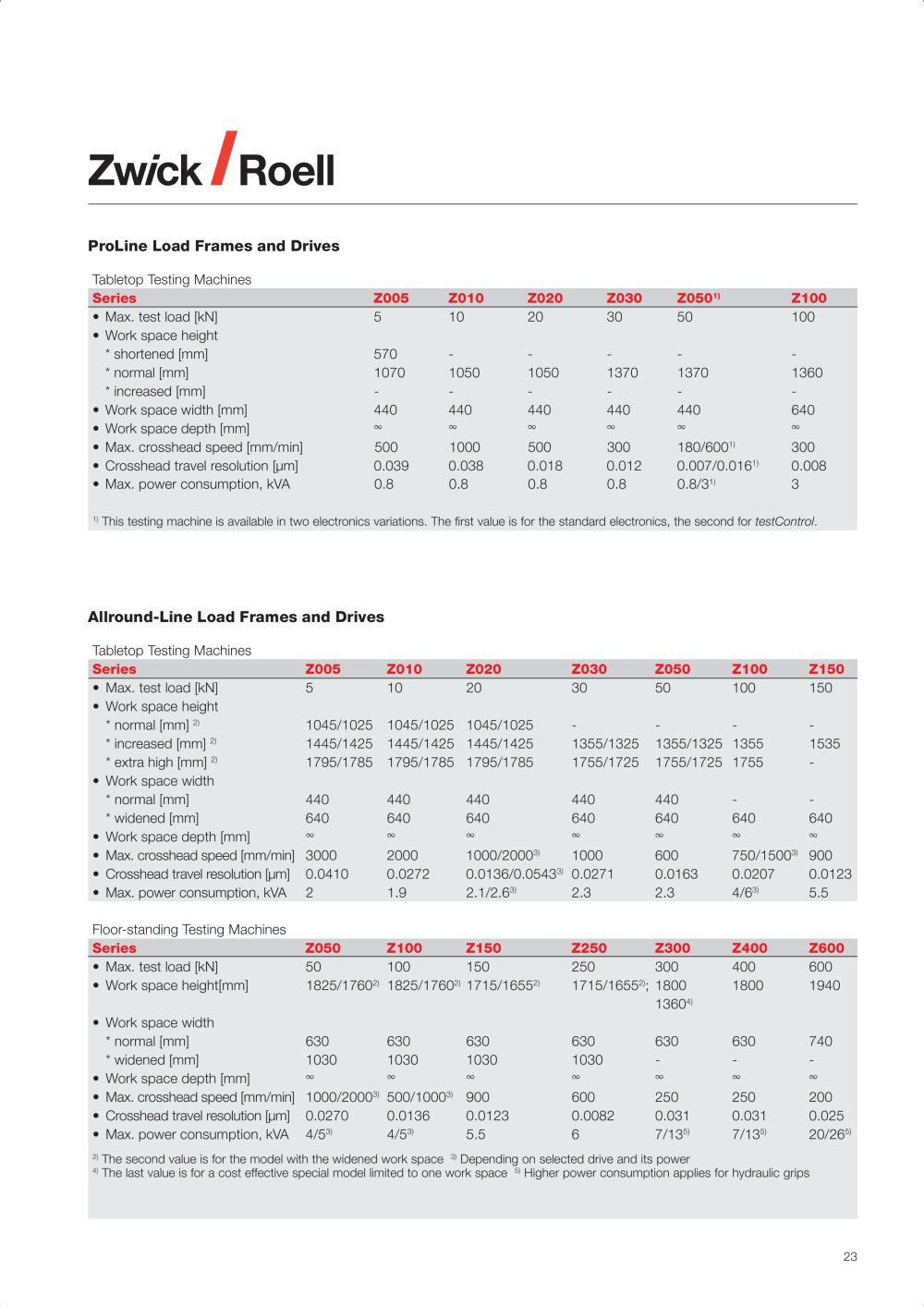

BasicLine - Load frames and drive systems


Series	Z0.5	Z005	Z010	Z020
• Load frame type	Table top	Table top	Table top	Table top
•Max. load, kN	0.5	5	10	20
•Working area, width x height, mm	~ x 596	420 x 561	420 x 1041	420 x 1041
Option	-	420 x 1061	-	-
•Working area, depth, mm	99.5	unlimited	unlimited	unlimited
• Max. test speed,
mm/min	1500	500	1000	500
•Crosshead travel resolution, nm	0.226	0.05	0.09	0.045
• Max. power consumption, kVA	0.4	0.6	0.6	0.6
Standard and Allround - Load frames and drive systems (motor driven machines)
Series	Z1.0	Z2.5	Z005	Z010	Z020
• Load frame type	Table top	Table top	Table top	Table top	Table top
• Max. load, kN	1	2.5	5	10	20
• Working area, width x height, mm	<*> x 1373	c x 573	440 x 1058	440 x 1058	440 x 1058
Option	-	cx1073	440 x 1458	440 x 1458	440 x 1458
	--	cx1373	-	640 x 1787	640 x 1787
Working area, depth, mm	99.5	99.5	_C	_C	_C
• Max. test speed,
mm/min	1800	800	3000	2000	1000/2000¹⁾
• Crosshead travel resolution, nm	0.0002	0.0001	0.041	0.027	0.014/0.054
• Max. power consumption, kVA	0.4	0.4	2/1.9	1.9	2.1/2.6
Series	Z030	Z050	Z050	Z100	Z100
• Load frame type	Table top	Table top	Floor standing	Table top	Floor standing
• Max. load, kN	30	50	50	100	100
• Working area, width x height, mm	440 x 1380	440 x 1380	630 x 1824	640 x 1360	630 x 1824
Option	-	-	1030 x 1765	640 x 1760	1030 x 1765
• Working area, depth, mm	COCO CO			_C	_C
• Max. test speed,
mm/min	1000	200/1500¹)	200/1000¹⁾	900
• Crosshead travel resolution, nm	0.027	0.026	0.0136	0.0123
• Max. power consumption, kVA	2.3	⁶	5	5.5
Series	Z150	Z150	Z250	Z005 C	Z010 C
• Load frame type	Floor standing	Table top	Floor standing	C-shape	C-shape
• Max. load, kN	50	100	100	5	10
• Working area, width x height, mm	630 x 1715	640 x 1539	630 x 1750	450³⁾ x 680	450³⁾ x 680
Option	1030 x 1660	-	1030 x 1660	1450⁴⁾ x 680	1450⁴⁾ x 680
• Working area, depth, mm	_CCC			1000³⁾	1000³⁾
• Max. test speed,
mm/min	900	900	600	600	600
• Crosshead travel resolution, nm	0.0123	0.0123	0.0082	0.0504	0.0504
^• Max. power consumption, kVA	5.5	5.5	⁶	0.8	0.8

¹⁾ Depending on the selected drive system

² With hydraulic grips

³ Dimensions of the table

⁴ Dimensions of the table in opened position
