Two-column table-top testingmachines The load frames of the BasicLineare designed with 2 round steel columns. The load frames of the Standard and Allround Line are designed with patented aluminium high-precision extruded profiles. They are light, very rigid and serve simultaneously as lead-screw guide and protection. T-shaped grooves on the outer sides allow a simple fitting of accessories as e.g. safetydevices without being impeded by the crosshead.All load frames with two profiles -except for the BasicLine – can be equipped with legs. Advantages are: •Positioning of the working areato an optimum height for the user•Comfortable seated operationwith absolute freedom for leg movement (also suitable for wheelchair users) Single-column table-toploadframe (zwicki)

Load frames

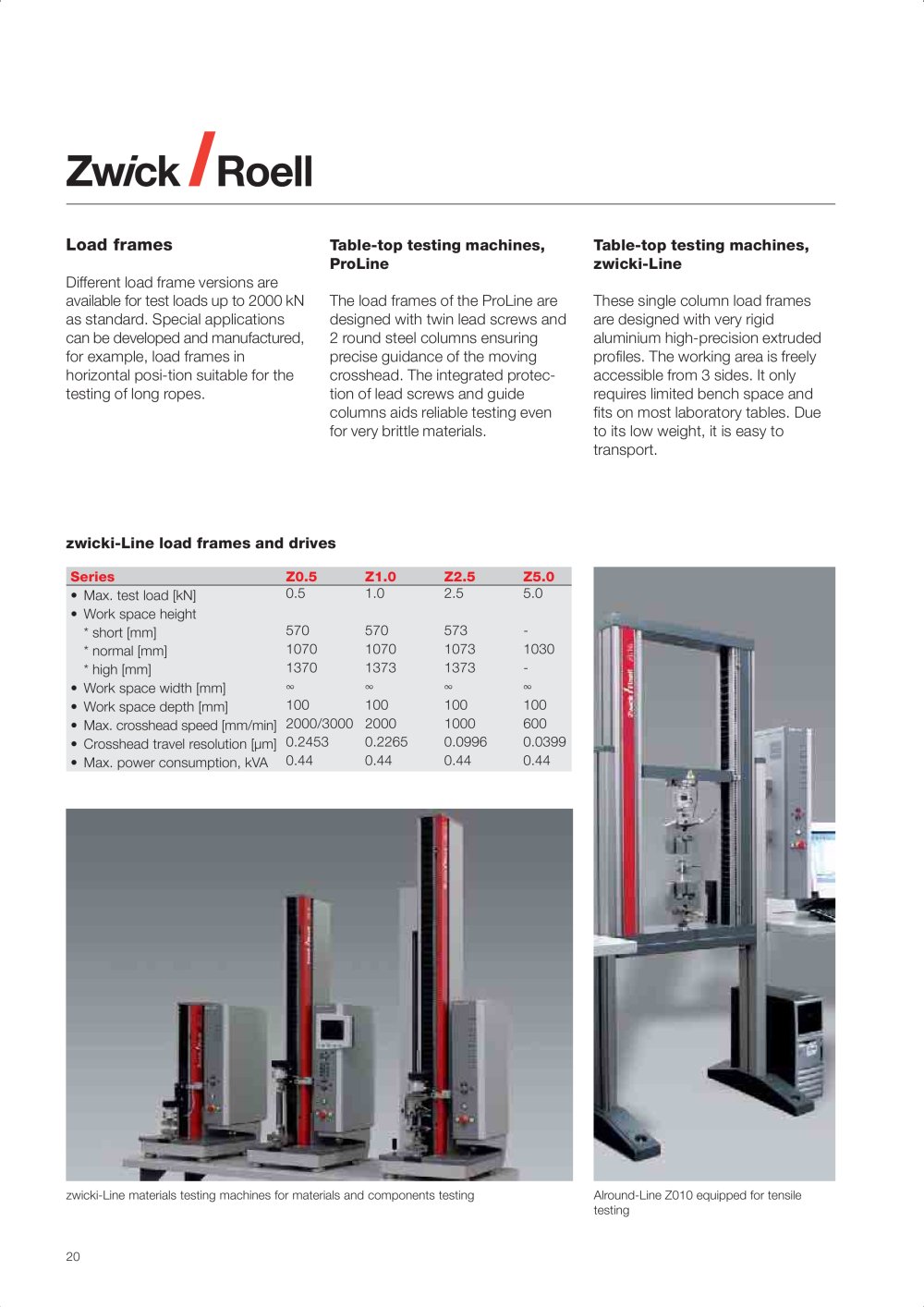

Different load frame versions for testloads up to 2.000 kN are available as standard. For special applications special versions can be developed and manufactured, e.g. load frames in horizontal position suitable for the testing of long ropes. These load frames are designedwith very rigid aluminium high- precision extruded profiles. The working area is freely accessible from 3 sides. Thus, it is ideal for the various tests on small parts and forZwick hardness testing centers. It only requires a small space. Due to its light weight, it is easy to transport.
Materials testing machine zwicki Z.2.5 with test tool for the determination of the coefficient of friction on plastic filmsDetermination of the stacking height of plastic buckets with a materialstesting machine BasicLine Z010 20
