Zw/ck / Roell

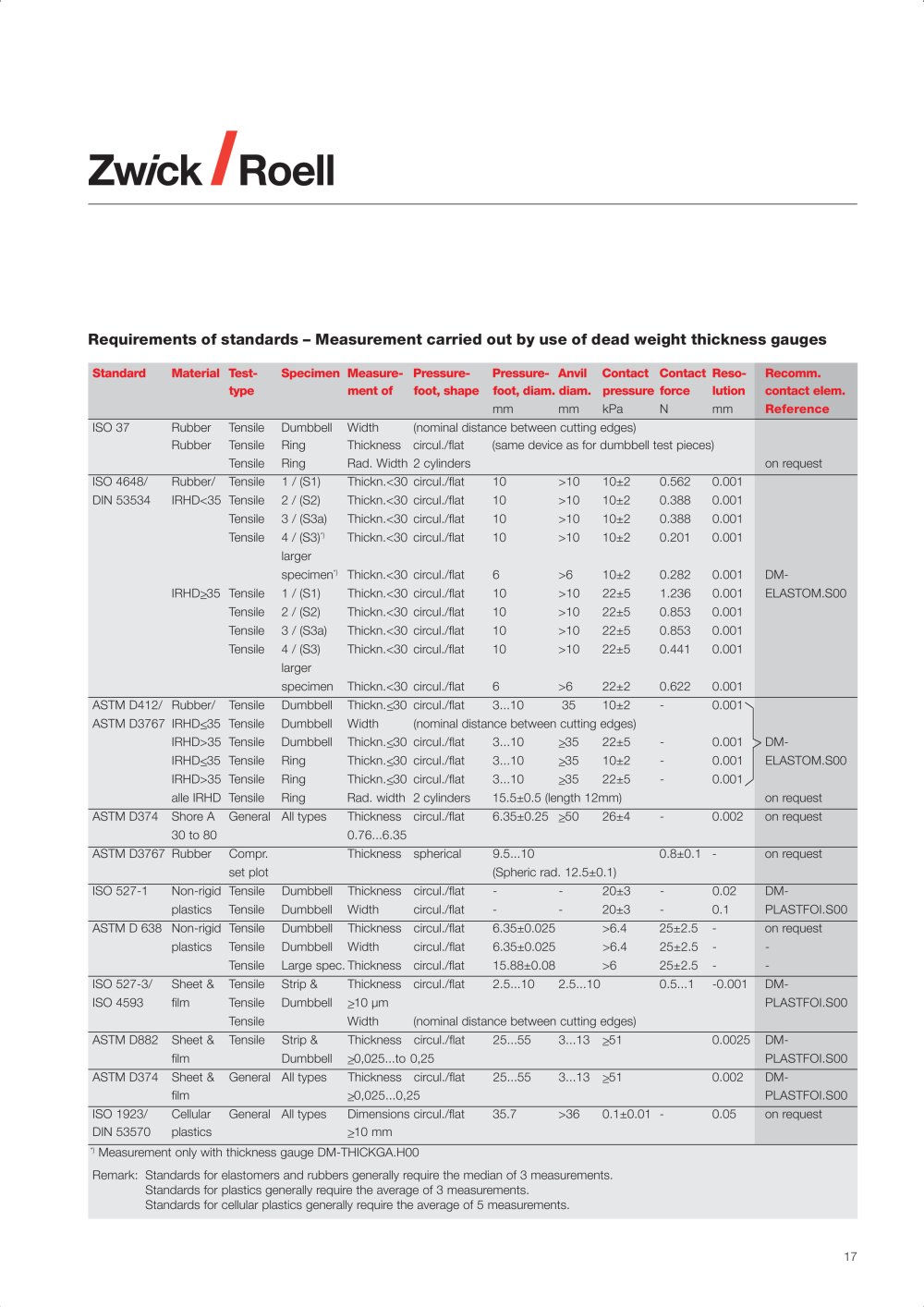

Requirements of standards - Measurement carried out by use of dead weight thickness gauges


Standard	Material	Test-	Specimen	Measure- Pressure-	Pressure- Anvil Contact	Contact	Reso-	Recomm.
		type		ment of foot, shape	foot, diam. diam. pressure	force	lution	contact elem.
					mm mm kPa	N	mm	Reference
ISO 37	Rubber	Tensile	Dumbbell	Width (nominal distance between cutting edges)
	Rubber	Tensile	Ring	Thickness circul./flat	(same device as for dumbbell test pieces)
		Tensile	Ring	Rad. Width 2 cylinders				on request
ISO 4648/	Rubber/	Tensile	1 /(S1)	Thickn. <30 circul./flat	10 >10 10 ±2	0.562	0.001
DIN 53534	IRHD<35	Tensile	2 / (S2)	Thickn. <30 circul./flat	10 >10 10 ±2	0.388	0.001
		Tensile	3 / (S3a)	Thickn. <30 circul./flat	10 >10 10 ±2	0.388	0.001
		Tensile	4 / (S3)*>	Thickn. <30 circul./flat	10 >10 10 ±2	0.201	0.001
			larger
			specimen^*)	Thickn. <30 circul./flat	6 >6 10 ±2	0.282	0.001	DM-
	IRHD 2=35Tensile		1 / (S1)	Thickn. <30 circul./flat	10 >10 22 ±5	1.236	0.001	ELASTOM.S00
		Tensile	2 / (S2)	Thickn. <30 circul./flat	10 >10 22 ±5	0.853	0.001
		Tensile	3 / (S3a)	Thickn. <30 circul./flat	10 >10 22 ±5	0.853	0.001
		Tensile	4 / (S3)	Thickn. <30 circul./flat	10 >10 22 ±5	0.441	0.001
			larger
			specimen	Thickn.<30 circul./flat	6 >6 22 ±2	0.622	0.001
ASTM D412/	Rubber/	Tensile	Dumbbell	Thickn. <30 circul./flat	3...10 35 10 ±2	-	0.001 "s
ASTM D3767	IRHD<35	Tensile	Dumbbell	Width (nominal distance between cutting edges)
	IRHD>35	Tensile	Dumbbell	Thickn. <30 circul./flat	3...10 >35 22 ±5	-	0.001	> DM-
	IRHD<35	Tensile	Ring	Thickn. <30 circul./flat	3...10 >35 10 ±2	-	0.001	ELASTOM.S00
	IRHD>35	Tensile	Ring	Thickn. <30 circul./flat	3...10 2=35 22 ±5	-	0.001/
	all IRHD	Tensile	Ring	Rad. width 2 cylinders	15.5 ±0.5 (length 12 mm)			on request
ASTM D374	Shore A	General	All types	Thickness circul./flat	6.35 ±0.25 2 50 26 ±4	-	0.002	on request
	30...80			0.76...6.35
ASTM D3767	Rubber	Compr.		Thickness Spheric	9.5...10	0.8 ± 0.1	-	on request
		set plot			(Spheric rad. 12.5 ±0.1)
ISO 527-1	Non-rigid Tensile		Dumbbell	Thickness circul./flat	- - 20 ±3	-	0.02	DM-
	plastics	Tensile	Dumbbell	Width circul./flat	- - 20 ±3	-	0.1	PLASTFOI.S00
ASTM D 638	Non-rigid Tensile		Dumbbell	Thickness circul./flat	6.35 ±0.025 >6.4	25 ±2.5	-	on request
	plastics	Tensile	Dumbbell	Width circul./flat	6.35 ±0.025 >6.4	25 ±2.5	-	-
		Tensile	Large spec. Thickness circul./flat		15.88 ±0.08 >6	25 ±2.5	-	-
ISO 527-3/	Sheet &	Tensile	Strip &	Thickness circul./flat	2.5...10 2.5...10	0.5... 1	<0.001	DM-
ISO 4593	film	Tensile	Dumbbell	2=10 \|im				PLASTFOI.S00
		Tensile		Width (nominal distance between cutting edges)
ASTM D882	Sheet &	Tensile	Strip &	Thickness circul./flat	25...55 3...13 2=51	-	0.0025	DM-
	film		Dumbbell	>0,025...0,25				PLASTFOI.S00
ASTM D374	Sheet &	General	All types	Thickness circul./flat	25...55 3...13 251	-	0.002	DM-
	film			>0,025...0,25				PLASTFOI.S00
ISO 1923/	Cellular	General	All types	Dimensions circul./flat	35.7 >36 0.1 ±0.01	-	0.05	on request
DIN 53570	plastics			2=10 mm
¹ Measurement only with thickness gauge DM-THICKGA.H00
Remark: Standards for elastomers and rubbers generally require the median out of 3 measurements.
Standards for plastics generally require the average out of 3 measurements.
Standards for cellular plastics generally require the average out of 5 measurements.
