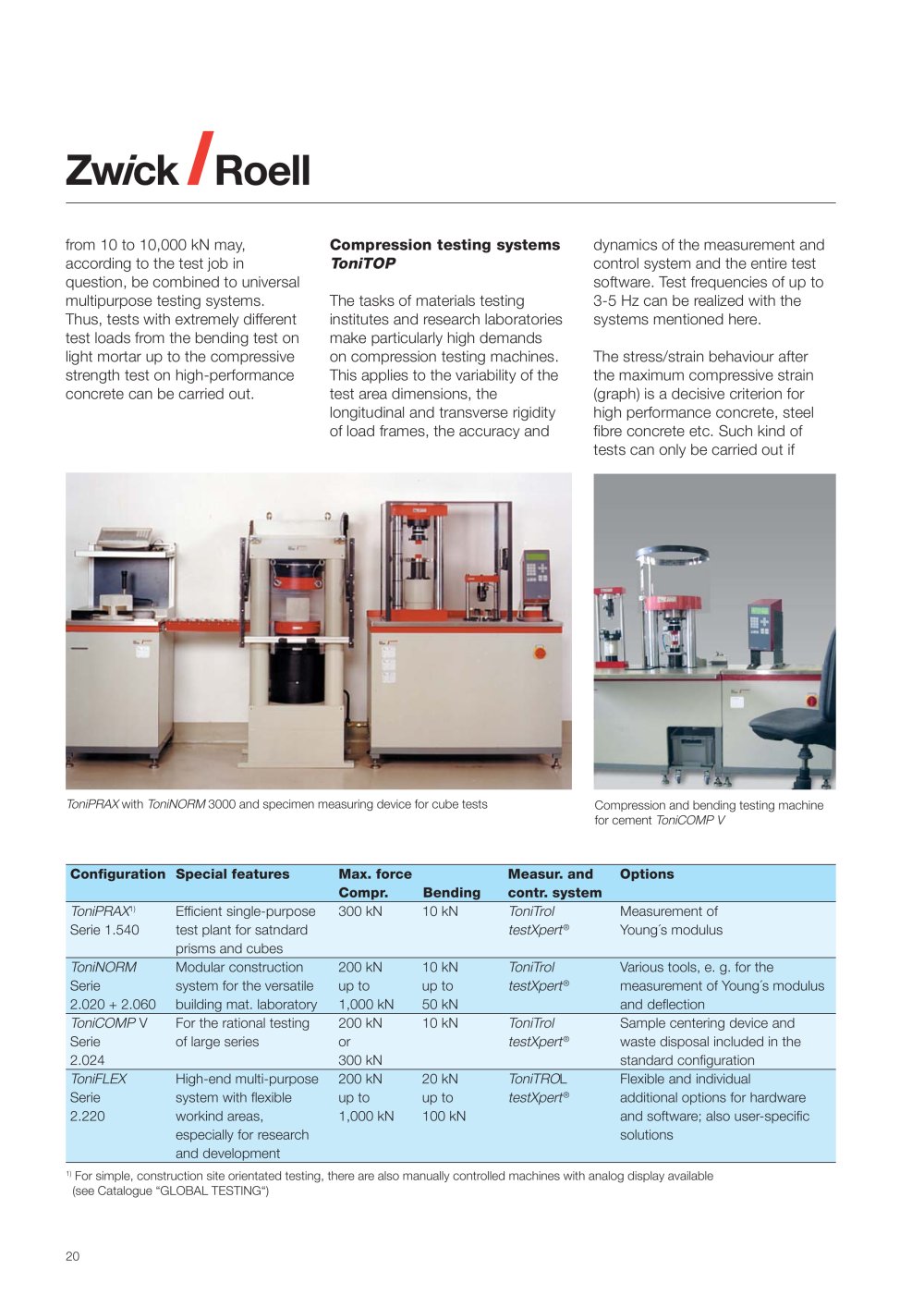

Compression testing systems from 10 to 10,000 kN may,
according to the test job in
question, be combined to universal
multipurpose testing systems.
Thus, tests with extremely different
test loads from the bending test on
light mortar up to the compressive
strength test on high-performance
concrete can be carried out. ToniTOP The tasks of materials testinginstitutes and research laboratories
make particularly high demands
on compression testing machines manufacturer.
This applies to the variability of the
test area dimensions, the
longitudinal and transverse rigidity
of load frames, the accuracy and
dynamics of the measurement andcontrol system and the entire test
software. Test frequencies of up to
3-5 Hz can be realized with the
systems mentioned here.The stress/strain behaviour afterthe maximum compressive strain
(graph) is a decisive criterion for
high performance concrete, steel
fibre concrete etc. Such kind of
tests can only be carried out if
ToniPRAX with ToniNORM 3000 and specimen measuring device for cube tests Compression and bending testing machine
for cement ToniCOMP V ConfigurationSpecial featuresMax. forceMeasur. andOptions Compr. Bendingcontr. system ToniPRAX
1) Efficient single-purpose300 kN10 kN ToniTrol Measurement of Serie 1.540test plant for satndard testXpert
® Young´s modulus prisms and cubes ToniNORM Modular construction200 kN10 kN ToniTrol Various tools, e. g. for the Seriesystem for the versatileup toup to testXpert
® measurement of Young´s modulus 2.020 + 2.060building mat. laboratory1,000 kN50 kNand deflection ToniCOMP VFor the rational testing200 kN10 kN ToniTrol Sample centering device and Serieof large seriesor testXpert
® waste disposal included in the 2.024300 kNstandard configuration ToniFLEX High-end multi-purpose200 kN20 kN ToniTRO LFlexible and individual Seriesystem with flexibleup toup to testXpert
® additional options for hardware 2.220workind areas,1,000 kN100 kNand software; also user-specific especially for researchsolutions and development
1) For simple, construction site orientated testing, there are also manually controlled machines with analog display available (see Catalogue “GLOBAL TESTING“) 20
