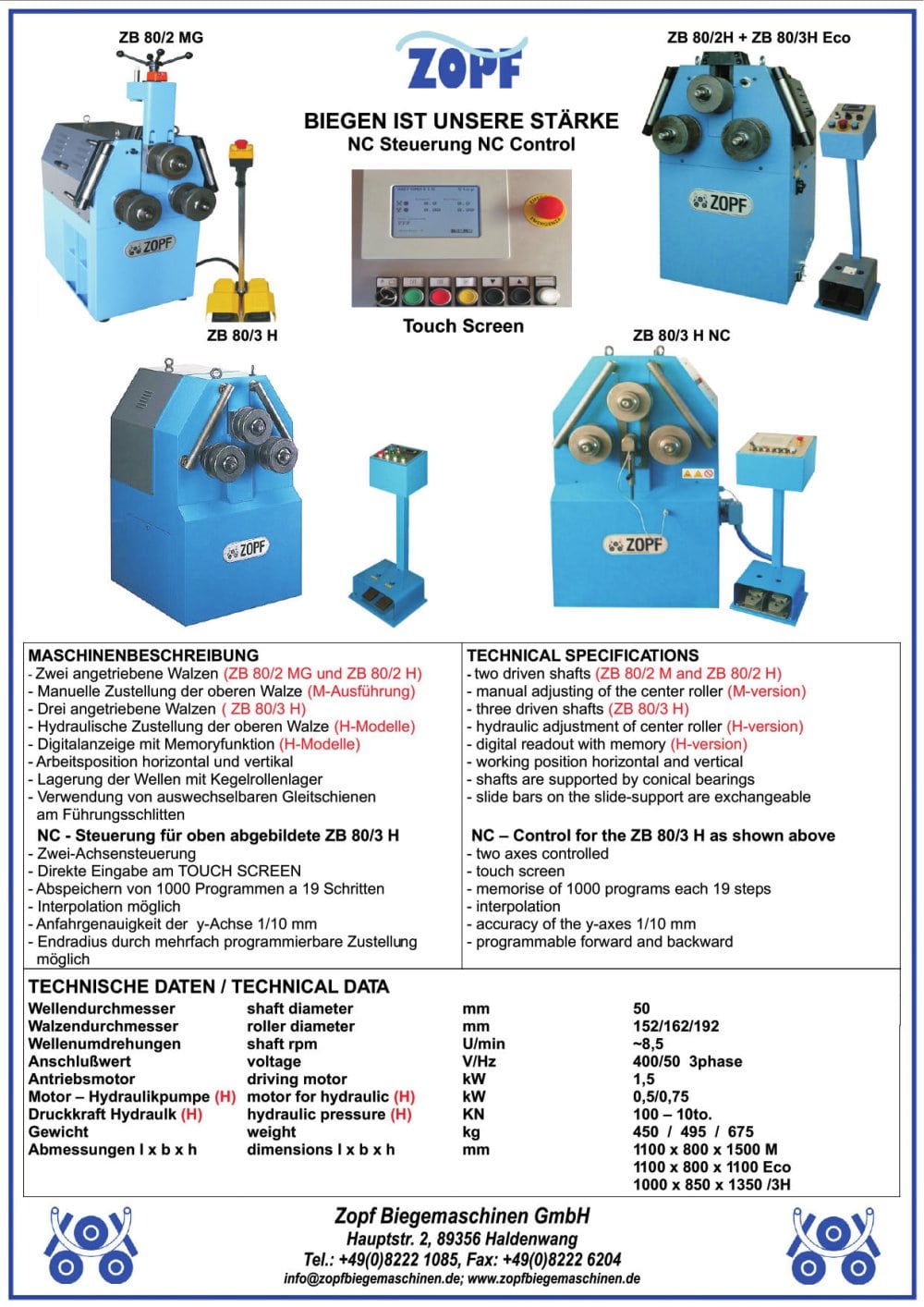

Bendingmachines model ZB 80 - 26746 ZB 80/2 MG

TECHNICAL SPECIFICATIONS TECHNICAL DATA

- two driven rollers, knurled surface - manual adjusting of the center roller - working position horizontal and vertical (optional) - complete with standard roller set and foot pedal - shafts are supported by conical bearings - slide bars on the slide support are exchangeable shaft Diameter roller Diameter shaft rpm voltage driving motor adjusting way weight measurements l x b x h mm mm U/min V/Hz kW mm kg mm 50 192 8,5 400/50 3ph. 1,5 120 450 1050 x 600 x 1200
