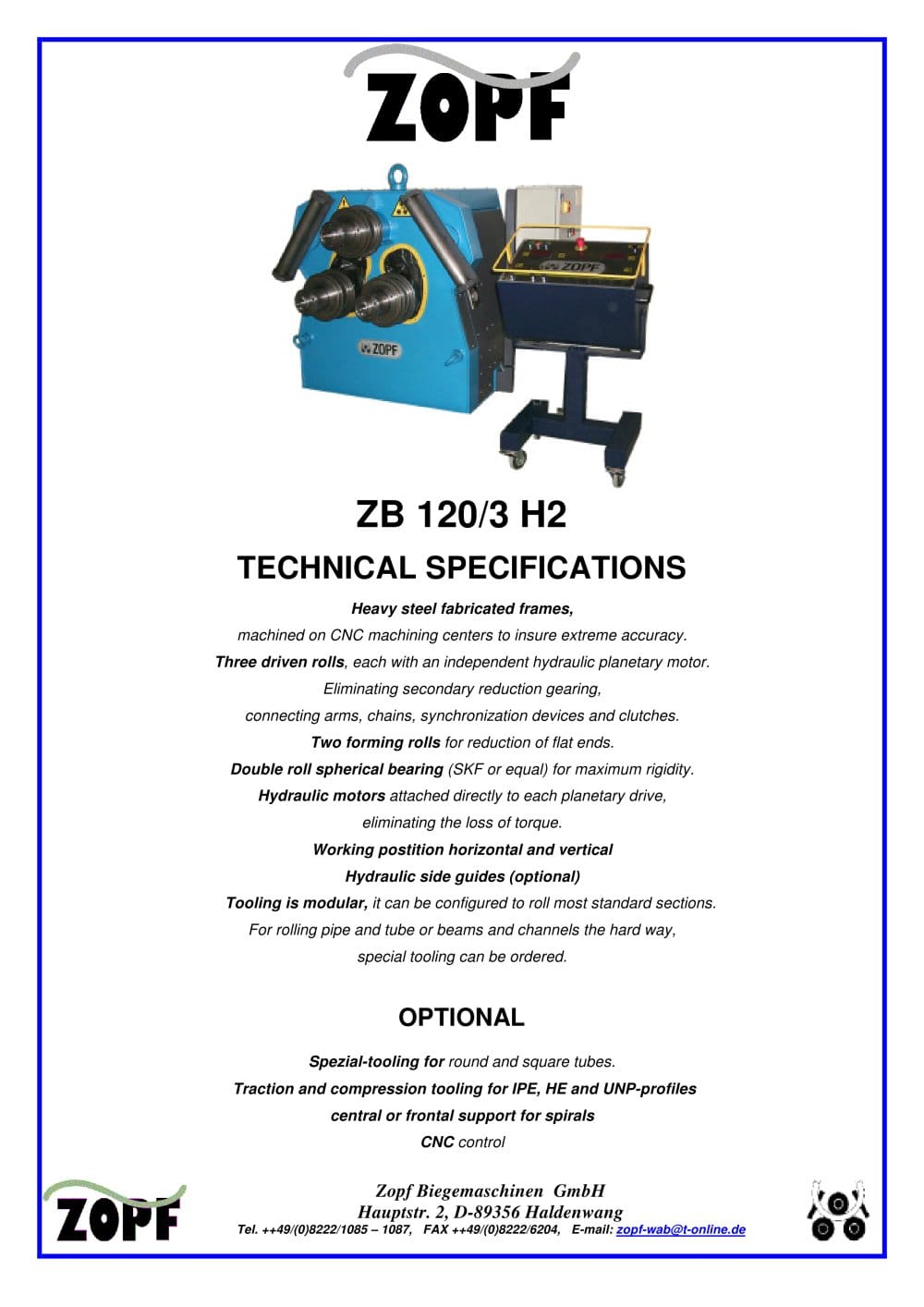

ZB 120/3 H2

TECHNICAL SPECIFICATIONS

Heavy steel fabricated frames, machined on CNC machining centers to insure extreme accuracy. Three driven rolls , each with an independent hydraulic planetary motor. Eliminating secondary reduction gearing, connecting arms, chains, synchronization devices and clutches. Two forming rolls for reduction of flat ends. Double roll spherical bearing (SKF or equal) for maximum rigidity. Hydraulic motors attached directly to each planetary drive, eliminating the loss of torque. Working postition horizontal and vertical Hydraulic side guides (optional) Tooling is modular, it can be configured to roll most standard sections. For rolling pipe and tube or beams and channels the hard way, special tooling can be ordered.

OPTIONAL

Spezial-tooling for round and square tubes. Traction and compression tooling for IPE, HE and UNP-profiles central or frontal support for spirals CNC control

Zopf Biegemaschinen GmbH Hauptstr. 2, D-89356 Haldenwang

Tel. ++49/(0)8222/1085 – 1087, FAX ++49/(0)8222/6204, E-mail: zopf-wab@t-online.de
