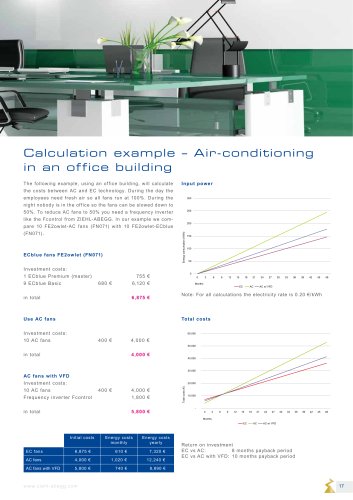

Calculation example – Air-conditioning
in an office building
ECblue fans FE2owlet (FN071)
Investment c osts:
1 ECblue Premium (master)
9 ECblue Basic
6 8 0 €
Input power
300
250
200
Energy consumption (kWh)
The following example, using an of f ice building, will calculate
the costs bet ween AC and EC technology. During the day the
employees need fresh air so all fans run at 10 0%. During the
night nobody is in the of f ice so the fans can be slowed down to
50%. To reduce AC fans to 50% you need a frequency inver ter
like the Fcontrol from Ziehl- Abegg. In our example we com pare 10 FE2owlet- AC fans (FN 071) with 10 FE2owlet- ECblue
(FN 071).
6,875 €
Use AC fans
100
50
0
755 €
6,120 €
in total
150
0
3
6
9
12
15
Months
18
EC
21
24
AC
27
30
33
36
39
42
45
48
AC w/ VFD
Note: For all calculations the electricity rate is 0.20 €/kWh
Tot al cost s
Investment c osts:
10 AC fans
60.000
40 0 €
4,0 0 0 €
50.000
4 ,0 0 0 €
in total
40.000
30.000
AC fans with VFD
Investment c osts:
10 AC fans
40 0 €
Frequency inver ter Fc ontrol
4,0 0 0 €
1,8 0 0 €
in total
5,80 0 €
Total costs (€)
20.000
10.000
0
3
6
9
12
15
18
21
24
27
30
33
36
39
42
45
48
Months
EC
Initial costs
EC fans
Energy costs
monthly
Energy costs
yearly
6,875 €
610 €
7,320 €
AC fans
4,000 €
1,020 €
12,240 €
AC fans with VFD
5,800 €
740 €
AC
AC w/ VFD
Return on investment
EC vs AC:
8 months payback period
EC vs AC with VFD: 10 months payback period
8,890 €
