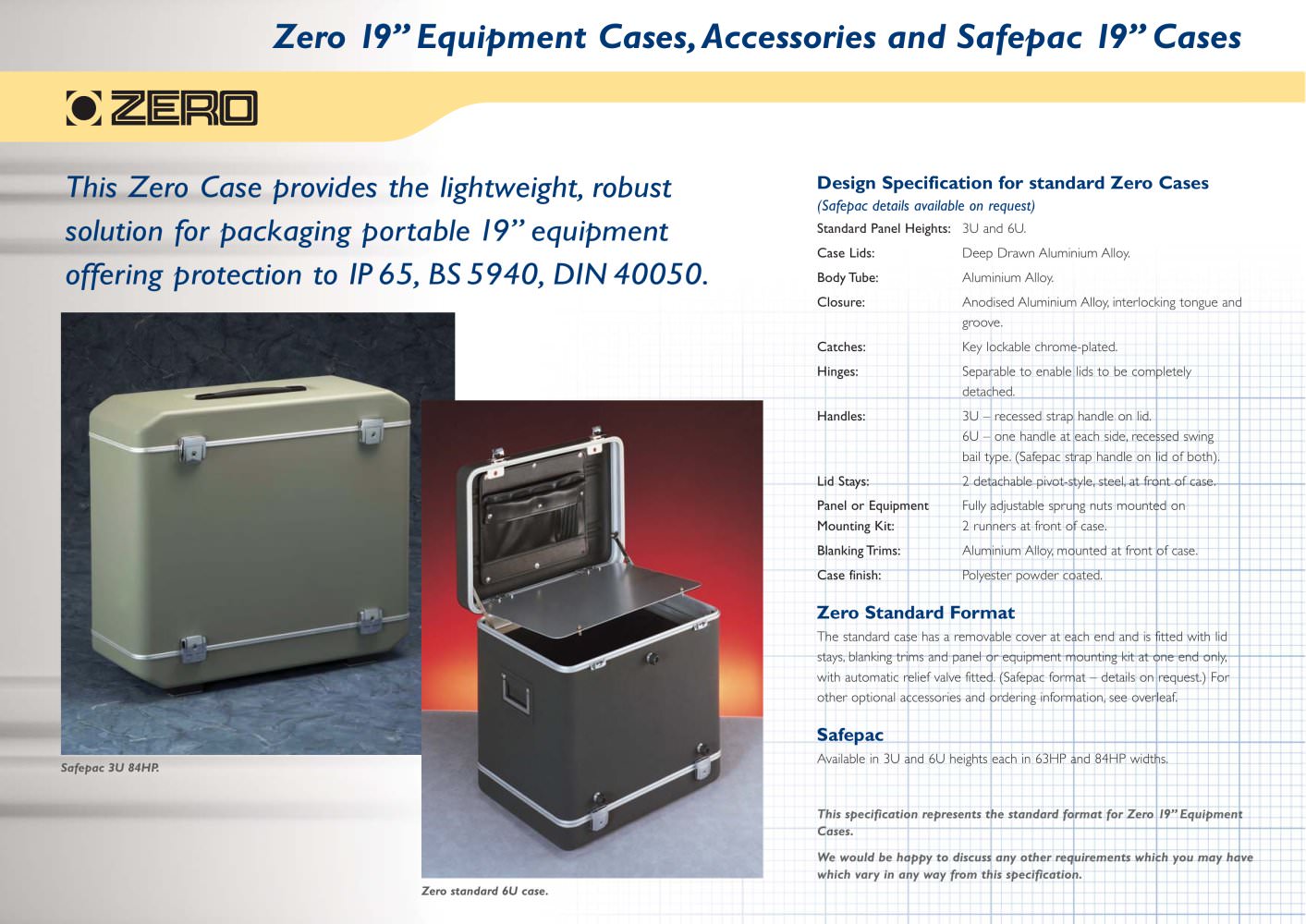

Zero 19”Equipment Cases,Accessories and Safepac 19”Cases

This Zero Case provides the lightweight,robustsolution for packaging portable19”equipment offering protection to IP65,BS5940,DIN40050.

Design Specification for standard Zero Cases

(Safepac details available on request)

Standard Panel Heights: 3U and 6U. Case Lids: Deep Drawn Aluminium Alloy. Body Tube: Aluminium Alloy. Closure: Anodised Aluminium Alloy,interlocking tongue andgroove. Catches: Key lockable chrome-plated. Hinges: Separable to enable lids to be completelydetached. Handles: 3U – recessed strap handle on lid.6U – one handle at each side,recessed swing bail type.(Safepac strap handle on lid of both). Lid Stays: 2 detachable pivot-style,steel,at front of case. Panel or Equipment Fully adjustable sprung nuts mounted on Mounting Kit: 2 runners at front of case. Blanking Trims: Aluminium Alloy,mounted at front of case. Case finish: Polyester powder coated.

Zero Standard Format

The standard case has a removable cover at each end and is fitted with lidstays,blanking trims and panel or equipment mounting kit at one end only,with automatic relief valve fitted.(Safepac format – details on request.) Forother optional accessories and ordering information,see overleaf.

Safepac

Available in 3U and 6U heights each in 63HP and 84HP widths.
This specification represents the standard format for Zero 19”EquipmentCases.We would be happy to discuss any other requirements which you may havewhich vary in any way from this specification. Zero standard 6U case.Safepac 3U 84HP.
