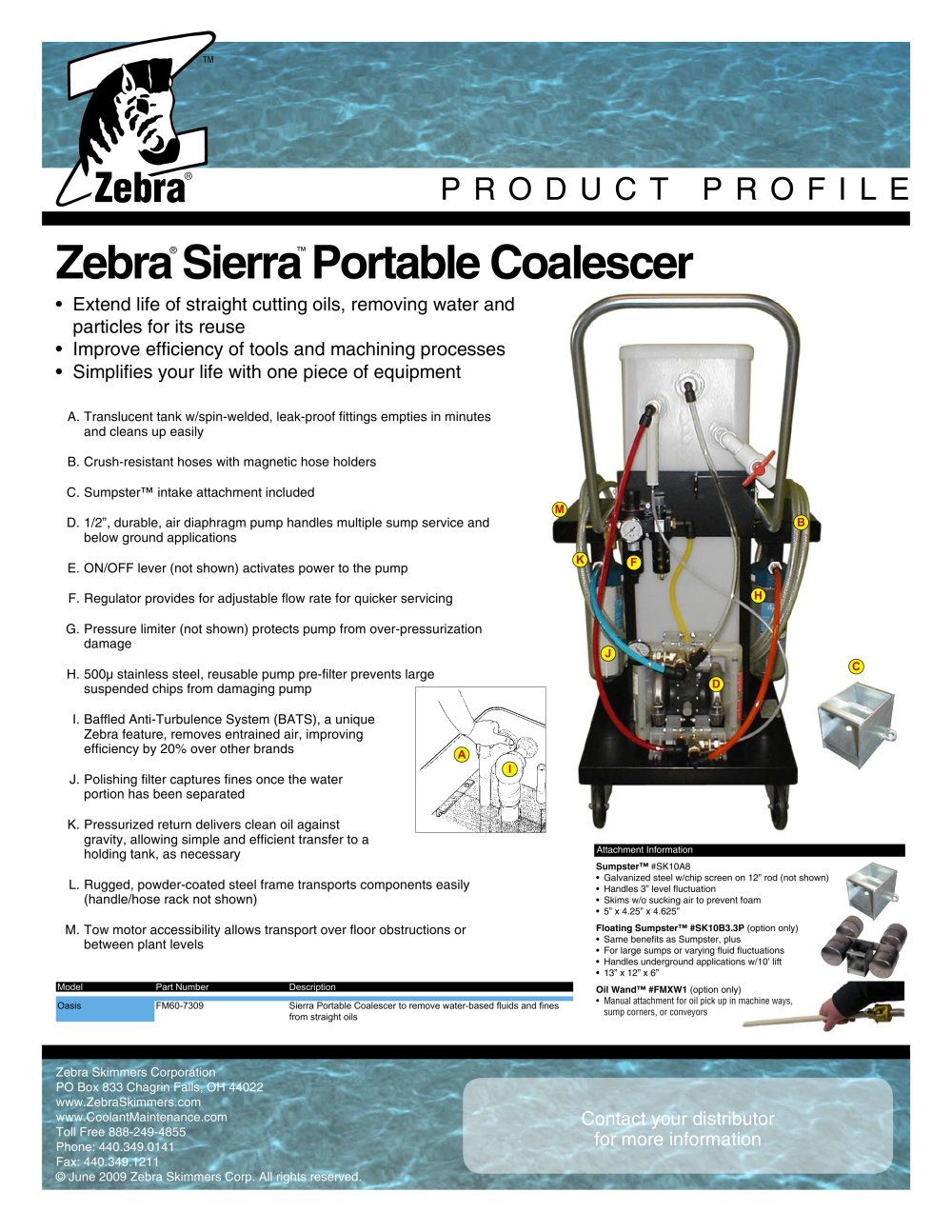

PRODUCT PROFILE Sumpster™ #SK10A8 • Galvanized steel w/chip screen on 12” rod (not shown) • Handles 3” level fluctuation • Skims w/o sucking air to prevent foam • 5” x 4.25” x 4.625” Floating Sumpster™ #SK10B3.3P (option only) • Same benefits as Sumpster, plus • For large sumps or varying fluid fluctuations • Handles underground applications w/10’ lift • 13” x 12” x 6” Oil Wand™ #FMXW1 (option only) • Manual attachment for oil pick up in machine ways, sump corners, or conveyors Attachment Information A I J F H D M K B C Zebra Skimmers Corporation PO Box 833 Chagrin Falls, OH 44022 www.ZebraSkimmers.com www.CoolantMaintenance.com Toll Free 888-249-4855 Phone: 440.349.0141 Fax: 440.349.1211 © June 2009 Zebra Skimmers Corp. All rights reserved. Contact your distributor for more information Zebra Sierra Portable Coalescer ® ™ • Extend life of straight cutting oils, removing water and particles for its reuse • Improve efficiency of tools and machining processes • Simplifies your life with one piece of equipment A. Translucent tank w/spin-welded, leak-proof fittings empties in minutes and cleans up easily B. Crush-resistant hoses with magnetic hose holders C. Sumpster™ intake attachment included D. 1/2”, durable, air diaphragm pump handles multiple sump service and below ground applications E. ON/OFF lever (not shown) activates power to the pump F. Regulator provides for adjustable flow rate for quicker servicing G. Pressure limiter (not shown) protects pump from over-pressurization damage H. 500ì stainless steel, reusable pump pre-filter prevents large suspended chips from damaging pump I. Baffled Anti-Turbulence System (BATS), a unique Zebra feature, removes entrained air, improving efficiency by 20% over other brands J. Polishing filter captures fines once the water portion has been separated K. Pressurized return delivers clean oil against gravity, allowing simple and efficient transfer to a holding tank, as necessary L. Rugged, powder-coated steel frame transports components easily (handle/hose rack not shown) M. Tow motor accessibility allows transport over floor obstructions or between plant levels Model Part Number Description Oasis FM60-7309 Sierra Portable Coalescer to remove water-based fluids and fines from straight oils
