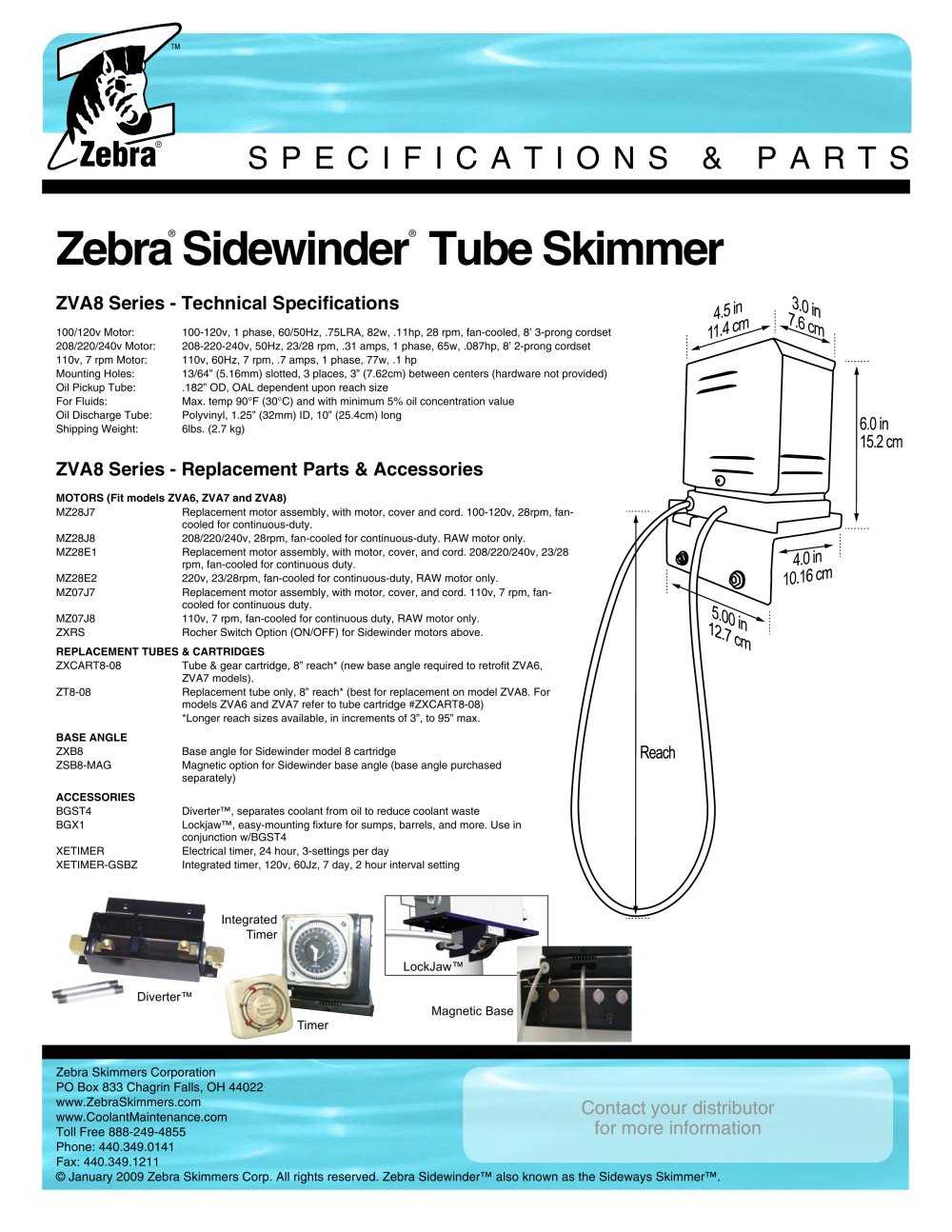

SPECIFICATIONS & PARTS Zebra Sidewinder Tube Skimmer Zebra Skimmers Corporation PO Box 833 Chagrin Falls, OH 44022 www.ZebraSkimmers.com www.CoolantMaintenance.com Toll Free 888-249-4855 Phone: 440.349.0141 Fax: 440.349.1211 © January 2009 Zebra Skimmers Corp. All rights reserved. Zebra Sidewinder™ also known as the Sideways Skimmer™. ® Contact your distributor for more information ZVA8 Series - Technical Specifications 100/120v Motor: 100-120v, 1 phase, 60/50Hz, .75LRA, 82w, .11hp, 28 rpm, fan-cooled, 8’ 3-prong cordset 208/220/240v Motor: 208-220-240v, 50Hz, 23/28 rpm, .31 amps, 1 phase, 65w, .087hp, 8’ 2-prong cordset 110v, 7 rpm Motor: 110v, 60Hz, 7 rpm, .7 amps, 1 phase, 77w, .1 hp Mounting Holes: 13/64” (5.16mm) slotted, 3 places, 3” (7.62cm) between centers (hardware not provided) Oil Pickup Tube: .182” OD, OAL dependent upon reach size For Fluids: Max. temp 90°F (30°C) and with minimum 5% oil concentration value Oil Discharge Tube: Polyvinyl, 1.25” (32mm) ID, 10” (25.4cm) long Shipping Weight: 6lbs. (2.7 kg) ZVA8 Series - Replacement Parts & Accessories MOTORS (Fit models ZVA6, ZVA7 and ZVA8) MZ28J7 Replacement motor assembly, with motor, cover and cord. 100-120v, 28rpm, fan-cooled for continuous-duty. MZ28J8 208/220/240v, 28rpm, fan-cooled for continuous-duty. RAW motor only. MZ28E1 Replacement motor assembly, with motor, cover, and cord. 208/220/240v, 23/28 rpm, fan-cooled for continuous duty. MZ28E2 220v, 23/28rpm, fan-cooled for continuous-duty, RAW motor only. MZ07J7 Replacement motor assembly, with motor, cover, and cord. 110v, 7 rpm, fan-cooled for continuous duty. MZ07J8 110v, 7 rpm, fan-cooled for continuous duty, RAW motor only. ZXRS Rocher Switch Option (ON/OFF) for Sidewinder motors above. REPLACEMENT TUBES & CARTRIDGES ZXCART8-08 Tube & gear cartridge, 8” reach* (new base angle required to retrofit ZVA6, ZVA7 models). ZT8-08 Replacement tube only, 8” reach* (best for replacement on model ZVA8. For models ZVA6 and ZVA7 refer to tube cartridge #ZXCART8-08) *Longer reach sizes available, in increments of 3”, to 95” max. BASE ANGLE ZXB8 Base angle for Sidewinder model 8 cartridge ZSB8-MAG Magnetic option for Sidewinder base angle (base angle purchased separately) ACCESSORIES BGST4 Diverter™, separates coolant from oil to reduce coolant waste BGX1 Lockjaw™, easy-mounting fixture for sumps, barrels, and more. Use in conjunction w/BGST4 XETIMER Electrical timer, 24 hour, 3-settings per day XETIMER-GSBZ Integrated timer, 120v, 60Jz, 7 day, 2 hour interval setting ® Diverter™ LockJaw™ Timer Magnetic Base Integrated Timer
