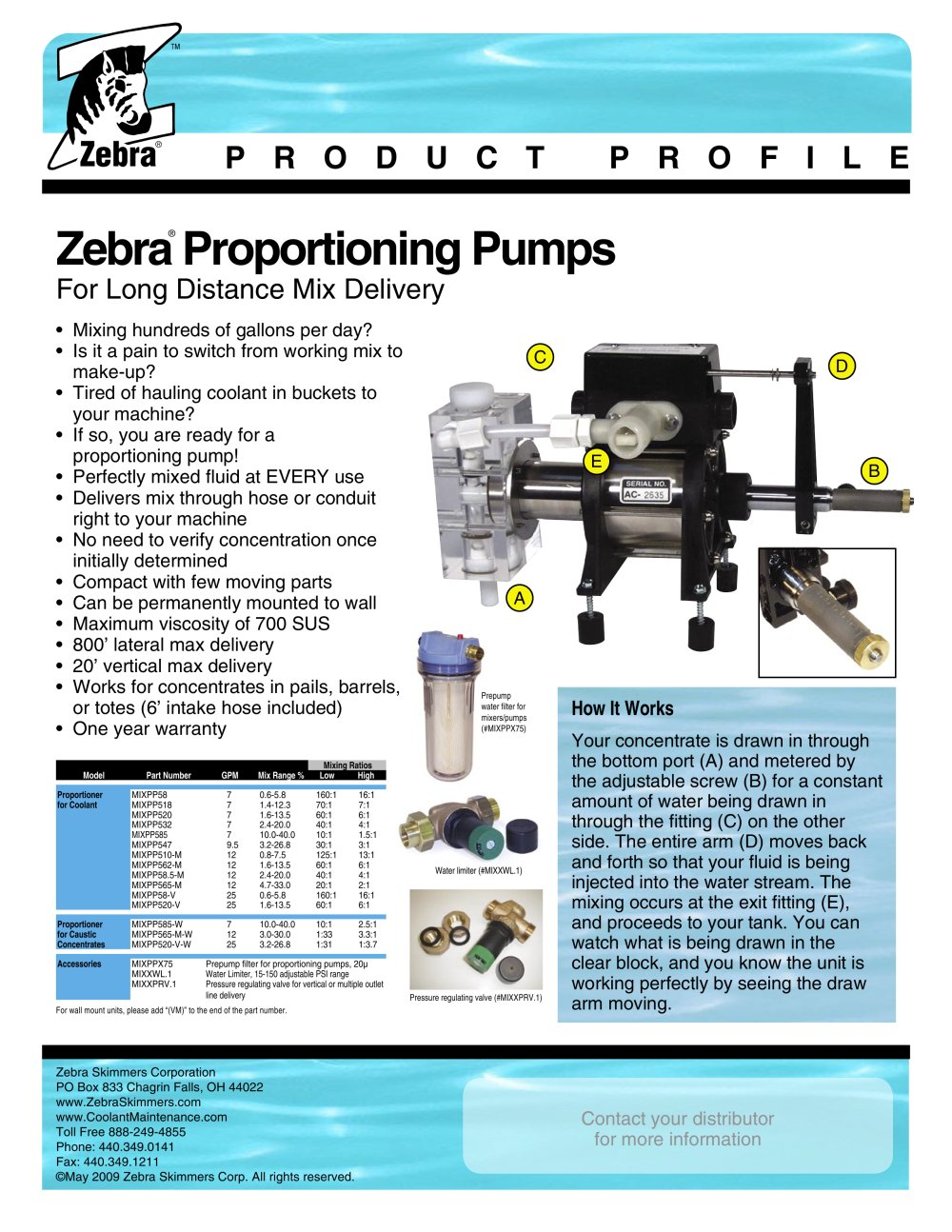

| Zebra Proportioning Pumps For Long Distance Mix Delivery • Mixing hundreds of gallons per day? • Is it a pain to switch from working mix to make-up? • Tired of hauling coolant in buckets to your machine? • If so, you are ready for a proportioning pump! • Perfectly mixed fluid at EVERY use • Delivers mix through hose or conduit right to your machine • No need to verify concentration once initially determined • Compact with few moving parts • Can be permanently mounted to wall • Maximum viscosity of 700 SUS • 800' lateral max delivery • 20' vertical max delivery | |||||||||||
| | |||||||||||
| • Works for concentrates in pails, barrels, or totes (6' intake hose included) | . Prepump water filter for mixers/pumps f#MIXPPX75) | How It Works Your concentrate is drawn in through the bottom port (A) and metered by the adjustable screw (B) for a constant amount of water being drawn in through the fitting (C) on the other side. The entire arm (D) moves back and forth so that your fluid is being injected into the water stream. The mixing occurs at the exit fitting (E), and proceeds to your tank. You can watch what is being drawn in the clear block, and you know the unit is working perfectly by seeing the draw arm moving. | |||||||||
| • One year warranty | |||||||||||
| | Model Part Number GPM Mix Range % Low High | | |||||||||
| Proportioner for Coolant | MIXPP58 MIXPP518 MIXPP520 MIXPP532 MIXPP585 MIXPP547 MIXPP510-M MIXPP562-M MIXPP58.5-M MIXPP565-M MIXPP58-V MIXPP520-V | 7 7 7 7 7 9.5 12 12 12 12 25 25 | 0.6-5.8 1.4-12.3 1.6-13.5 2.4-20.0 10.0-40.0 3.2-26.8 0.8-7.5 1.6-13.5 2.4-20.0 4.7-33.0 0.6-5.8 1.6-13.5 | 160:1 70:1 60:1 40:1 10:1 30:1 125:1 60:1 40:1 20:1 160:1 60:1 | 16:1 7:1 6:1 4:1 1.5:1 3:1 13:1 6:1 4:1 2:1 16:1 6:1 | Water limiter (#MIXXWL.1) | |||||
| Proportioner MIXPP585-W tor Caustic MIXPP565-M-W Concentrates MIXPP520-V-W | 7 10.0-40.0 10:1 2.5:1 12 3.0-30.0 1:33 3.3:1 25 3.2-26.8 1:31 1:3.7 | ||||||||||
| Accessories | MIXPPX75 MIXXWL.1 MIXXPRV.1 | Prepump filter for proportioning pumps, 20u | |||||||||
| Water Limiter, 15-150 adjustable PSI range Pressure regulating valve for vertical or multiple outlet | |||||||||||
| ^^^^^^^^H line delivery For wall mount units, please add "(VM)" to the end of the part number. | Pressure regulating valve (#MIXXPRV.1) | ||||||||||
| | |||||||||||
| Zebra Skimmers Corporation PO Box 833 Chagrin Falls, OH 44022 www.ZebraSkimmers.com www.CoolantMaintenance.com Toll Free 888-249-4855 Phone: 440.349.0141 Fax: 440.349.1211 ©May 2009 Zebra Skimmers Corp. All rights reserved. | |||||||||||
| | |||||||||||
