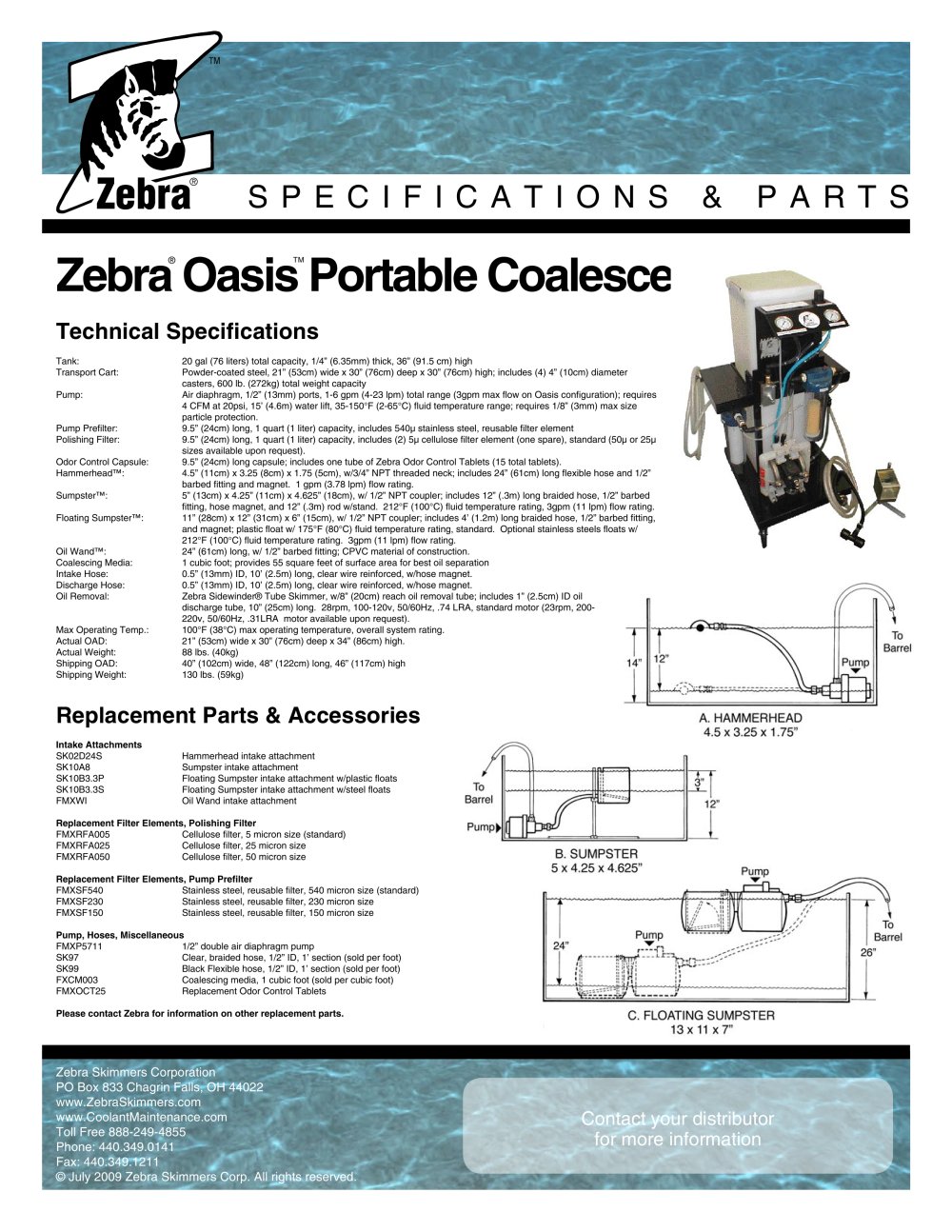

SPECIFICATIONS & PARTS

Zebra Oasis Portable Coalesce

Technical Specifications

Tank: 20 gal (76 liters) total capacity, 1/4" (6.35mm) thick, 36" (91.5 cm) high Transport Cart: Powder-coated steel, 21" (53cm) wide x 30" (76cm) deep x 30" (76cm) high; includes (4) 4" (10cm) diameter casters, 600 lb. (272kg) total weight capacity Pump: Air diaphragm, 1/2" (13mm) ports, 1-6 gpm (4-23 Ipm) total range (3gpm max flow on Oasis configuration); requires 4 CFM at 20psi, 15' (4.6m) water lift, 35-150°F (2-65°C) fluid temperature range; requires 1/8" (3mm) max size particle protection. Pump Prefilter: 9.5" (24cm) long, 1 quart (1 liter) capacity, includes 540u stainless steel, reusable Alter element Polishing Filter: 9.5" (24cm) long, 1 quart (1 liter) capacity, includes (2) 5u cellulose Alter element (one spare), standard (50u or 25u sizes available upon request). Odor Control Capsule: 9.5" (24cm) long capsule; includes one tube of Zebra Odor Control Tablets (15 total tablets). Hammerhead™: 4.5" (11cm) x 3.25 (8cm) x 1.75 (5cm), w/3/4" NPT threaded neck; includes 24" (61cm) long Aexible hose and 1/2" barbed Atting and magnet. 1 gpm (3.78 Ipm) Aow rating. Sumpster™: 5" (13cm) x 4.25" (11cm) x 4.625" (18cm), w/ 1/2" NPT coupler; includes 12" (.3m) long braided hose, 1/2" barbed Atting, hose magnet, and 12" (.3m) rod w/stand. 212°F (100°C) Auid temperature rating, 3gpm (11 Ipm) Aow rating. Floating Sumpster™: 11" (28cm) x 12" (31cm) x 6" (15cm), w/ 1/2" NPT coupler; includes 4' (1.2m) long braided hose, 1/2" barbed Atting, and magnet; plastic Aoat w/ 175°F (80°C) Auid temperature rating, standard. Optional stainless steels Aoats w/ 212°F (100°C) Auid temperature rating. 3gpm (11 Ipm) Aow rating. Oil Wand™: 24" (61cm) long, w/1/2" barbed fitting; CPVC material of construction. Coalescing Media: 1 cubic foot; provides 55 square feet of surface area for best oil separation Intake Hose: 0.5" (13mm) ID, 10' (2.5m) long, clear wire reinforced, w/hose magnet. Discharge Hose: 0.5" (13mm) ID, 10' (2.5m) long, clear wire reinforced, w/hose magnet. Oil Removal: Zebra Sidewinder® Tube Skimmer, w/8" (20cm) reach oil removal tube; includes 1" (2.5cm) ID oil discharge tube, 10" (25cm) long. 28rpm, 100-120v, 50/60HZ, .74 LRA, standard motor (23rpm, 200-220v, 50/60HZ, .31LRA motor available upon request). Max Operating Temp.: 100°F (38°C) max operating temperature, overall system rating. Actual OAD: 21" (53cm) wide x 30" (76cm) deep x 34" (86cm) high. Actual Weight: 88 lbs. (40kg) Shipping OAD: 40" (102cm) wide, 48" (122cm) long, 46" (117cm) high Shipping Weight: 130 lbs. (59kg)

Replacement Parts & Accessories

Intake Attachments SK02D24S SK10A8 SK10B3.3P SK10B3.3S FMXWI		Hammerhead intake attachment Sumpster intake attachment Floating Sumpster intake attachment w/plastic Aoats Floating Sumpster intake attachment w/steel Aoats Oil Wand intake attachment

Replacement Filter Elements, Polishing Filter FMXRFA005 Cellulose Alter, 5 micron size (standard) FMXRFA025 Cellulose Alter, 25 micron size FMXRFA050 Cellulose Alter, 50 micron size Replacement Filter Elements, Pump Prefilter FMXSF540 Stainless steel, reusable Alter, 540 micron size (standard) FMXSF230 Stainless steel, reusable Alter, 230 micron size FMXSF150 Stainless steel, reusable Alter, 150 micron size Pump, Hoses, Miscellaneous FMXP5711 1/2" double air diaphragm pump SK97 Clear, braided hose, 1/2" ID, 1' section (sold per foot) SK99 Black Flexible hose, 1/2" ID, 1' section (sold per foot) FXCM003 Coalescing media, 1 cubic foot (sold per cubic foot) FMXOCT25 Replacement Odor Control Tablets Please contact Zebra for information on other replacement parts.
