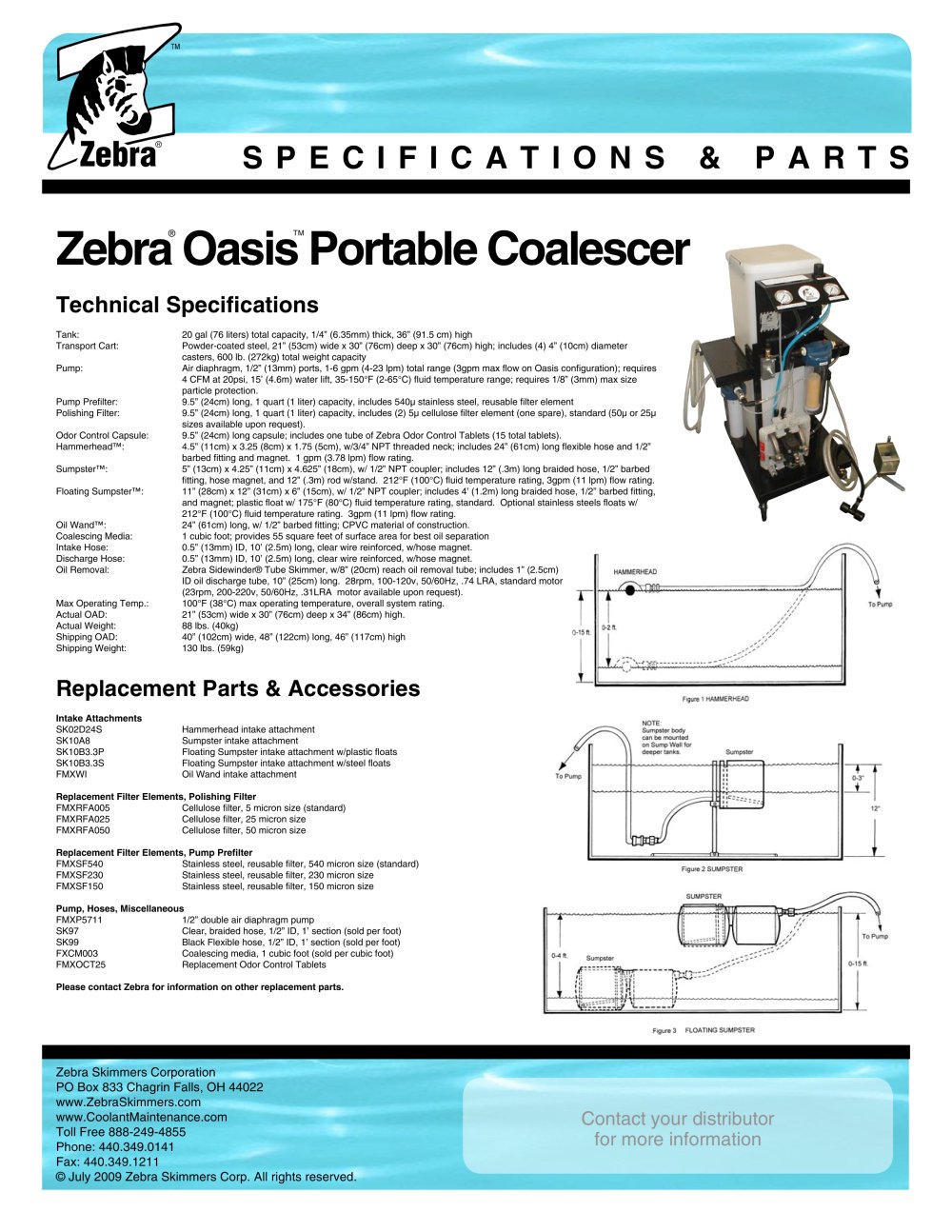

SPECIFICATIONS & PARTS Zebra Oasis Portable Coalescer Zebra Skimmers Corporation PO Box 833 Chagrin Falls, OH 44022 www.ZebraSkimmers.com www.CoolantMaintenance.com Toll Free 888-249-4855 Phone: 440.349.0141 Fax: 440.349.1211 © July 2009 Zebra Skimmers Corp. All rights reserved. ® Contact your distributor for more information Technical Specifications Tank: 20 gal (76 liters) total capacity, 1/4” (6.35mm) thick, 36” (91.5 cm) high Transport Cart: Powder-coated steel, 21” (53cm) wide x 30” (76cm) deep x 30” (76cm) high; includes (4) 4” (10cm) diameter casters, 600 lb. (272kg) total weight capacity Pump: Air diaphragm, 1/2” (13mm) ports, 1-6 gpm (4-23 lpm) total range (3gpm max flow on Oasis configuration); requires 4 CFM at 20psi, 15’ (4.6m) water lift, 35-150°F (2-65°C) fluid temperature range; requires 1/8” (3mm) max size particle protection. Pump Prefilter: 9.5” (24cm) long, 1 quart (1 liter) capacity, includes 540ì stainless steel, reusable filter element Polishing Filter: 9.5” (24cm) long, 1 quart (1 liter) capacity, includes (2) 5ì cellulose filter element (one spare), standard (50ì or 25ì sizes available upon request). Odor Control Capsule: 9.5” (24cm) long capsule; includes one tube of Zebra Odor Control Tablets (15 total tablets). Hammerhead™: 4.5” (11cm) x 3.25 (8cm) x 1.75 (5cm), w/3/4” NPT threaded neck; includes 24” (61cm) long flexible hose and 1/2” barbed fitting and magnet. 1 gpm (3.78 lpm) flow rating. Sumpster™: 5” (13cm) x 4.25” (11cm) x 4.625” (18cm), w/ 1/2” NPT coupler; includes 12” (.3m) long braided hose, 1/2” barbed fitting, hose magnet, and 12” (.3m) rod w/stand. 212°F (100°C) fluid temperature rating, 3gpm (11 lpm) flow rating. Floating Sumpster™: 11” (28cm) x 12” (31cm) x 6” (15cm), w/ 1/2” NPT coupler; includes 4’ (1.2m) long braided hose, 1/2” barbed fitting, and magnet; plastic float w/ 175°F (80°C) fluid temperature rating, standard. Optional stainless steels floats w/ 212°F (100°C) fluid temperature rating. 3gpm (11 lpm) flow rating. Oil Wand™: 24” (61cm) long, w/ 1/2” barbed fitting; CPVC material of construction. Coalescing Media: 1 cubic foot; provides 55 square feet of surface area for best oil separation Intake Hose: 0.5” (13mm) ID, 10’ (2.5m) long, clear wire reinforced, w/hose magnet. Discharge Hose: 0.5” (13mm) ID, 10’ (2.5m) long, clear wire reinforced, w/hose magnet. Oil Removal: Zebra Sidewinder® Tube Skimmer, w/8” (20cm) reach oil removal tube; includes 1” (2.5cm) ID oil discharge tube, 10” (25cm) long. 28rpm, 100-120v, 50/60Hz, .74 LRA, standard motor (23rpm, 200-220v, 50/60Hz, .31LRA motor available upon request). Max Operating Temp.: 100°F (38°C) max operating temperature, overall system rating. Actual OAD: 21” (53cm) wide x 30” (76cm) deep x 34” (86cm) high. Actual Weight: 88 lbs. (40kg) Shipping OAD: 40” (102cm) wide, 48” (122cm) long, 46” (117cm) high Shipping Weight: 130 lbs. (59kg) Replacement Parts & Accessories Intake Attachments SK02D24S Hammerhead intake attachment SK10A8 Sumpster intake attachment SK10B3.3P Floating Sumpster intake attachment w/plastic floats SK10B3.3S Floating Sumpster intake attachment w/steel floats FMXWI Oil Wand intake attachment Replacement Filter Elements, Polishing Filter FMXRFA005 Cellulose filter, 5 micron size (standard) FMXRFA025 Cellulose filter, 25 micron size FMXRFA050 Cellulose filter, 50 micron size Replacement Filter Elements, Pump Prefilter FMXSF540 Stainless steel, reusable filter, 540 micron size (standard) FMXSF230 Stainless steel, reusable filter, 230 micron size FMXSF150 Stainless steel, reusable filter, 150 micron size Pump, Hoses, Miscellaneous FMXP5711 1/2” double air diaphragm pump SK97 Clear, braided hose, 1/2” ID, 1’ section (sold per foot) SK99 Black Flexible hose, 1/2” ID, 1’ section (sold per foot) FXCM003 Coalescing media, 1 cubic foot (sold per cubic foot) FMXOCT25 Replacement Odor Control Tablets Please contact Zebra for information on other replacement parts. TM
