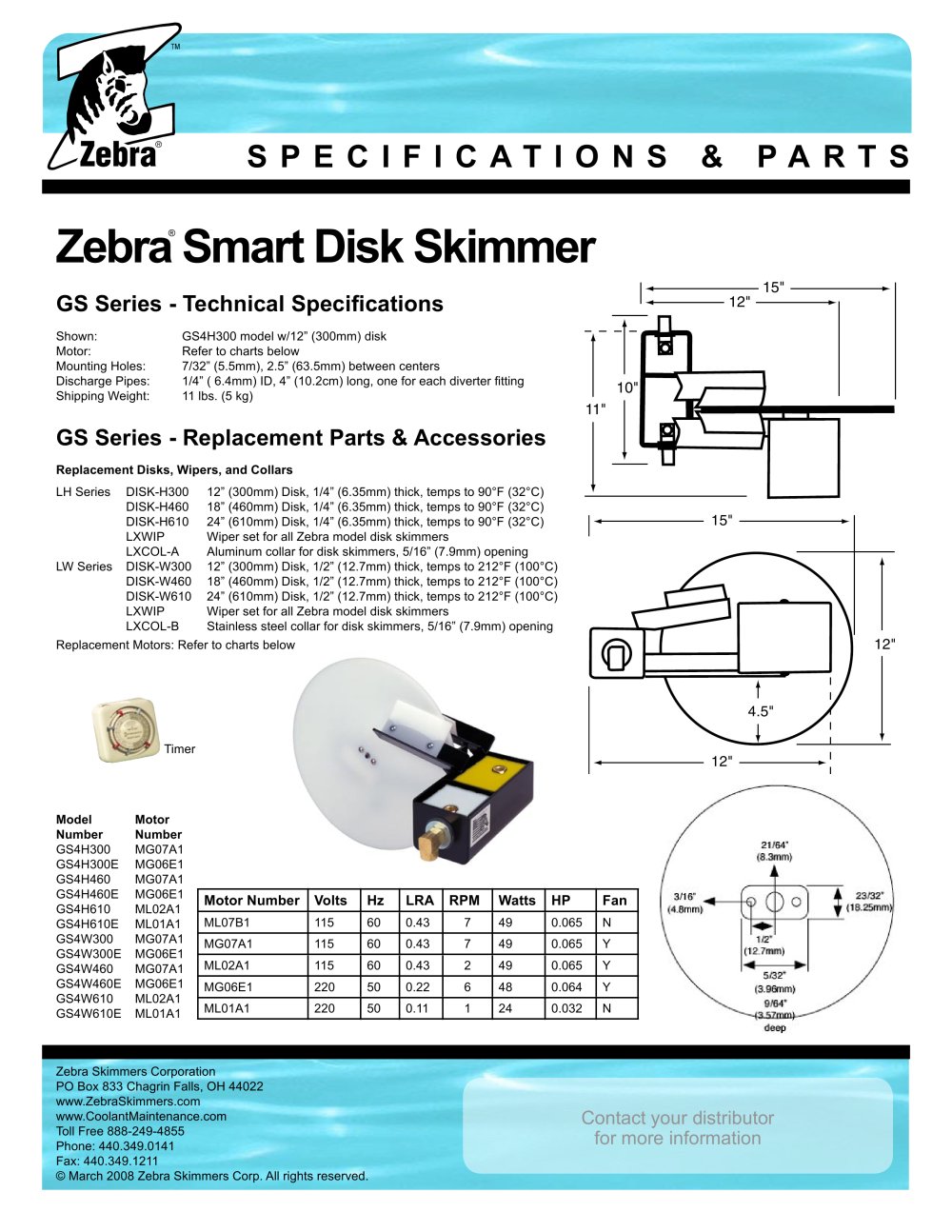

SPECIFICATIONS & PARTS Zebra Smart Disk Skimmer Zebra Skimmers Corporation PO Box 833 Chagrin Falls, OH 44022 www.ZebraSkimmers.com www.CoolantMaintenance.com Toll Free 888-249-4855 Phone: 440.349.0141 Fax: 440.349.1211 © March 2008 Zebra Skimmers Corp. All rights reserved. ® Contact your distributor for more information GS Series - Technical Specifications Shown: GS4H300 model w/12” (300mm) disk Motor: Refer to charts below Mounting Holes: 7/32” (5.5mm), 2.5” (63.5mm) between centers Discharge Pipes: 1/4” ( 6.4mm) ID, 4” (10.2cm) long, one for each diverter fitting Shipping Weight: 11 lbs. (5 kg) GS Series - Replacement Parts & Accessories Replacement Disks, Wipers, and Collars LH Series DISK-H300 12” (300mm) Disk, 1/4” (6.35mm) thick, temps to 90°F (32°C) DISK-H460 18” (460mm) Disk, 1/4” (6.35mm) thick, temps to 90°F (32°C) DISK-H610 24” (610mm) Disk, 1/4” (6.35mm) thick, temps to 90°F (32°C) LXWIP Wiper set for all Zebra model disk skimmers LXCOL-A Aluminum collar for disk skimmers, 5/16” (7.9mm) opening LW Series DISK-W300 12” (300mm) Disk, 1/2” (12.7mm) thick, temps to 212°F (100°C) DISK-W460 18” (460mm) Disk, 1/2” (12.7mm) thick, temps to 212°F (100°C) DISK-W610 24” (610mm) Disk, 1/2” (12.7mm) thick, temps to 212°F (100°C) LXWIP Wiper set for all Zebra model disk skimmers LXCOL-B Stainless steel collar for disk skimmers, 5/16” (7.9mm) opening Replacement Motors: Refer to charts below Timer15"12"10"11"15"12"12"4.5" Model Number GS4H300 GS4H300E GS4H460 GS4H460E GS4H610 GS4H610E GS4W300 GS4W300E GS4W460 GS4W460E GS4W610 GS4W610E Motor Number Volts Hz LRA RPM Watts HP Fan ML07B1 115 60 0.43 7 49 0.065 N MG07A1 115 60 0.43 7 49 0.065 Y ML02A1 115 60 0.43 2 49 0.065 Y MG06E1 220 50 0.22 6 48 0.064 Y ML01A1 220 50 0.11 1 24 0.032 N Motor Number MG07A1 MG06E1 MG07A1 MG06E1 ML02A1 ML01A1 MG07A1 MG06E1 MG07A1 MG06E1 ML02A1 ML01A1
