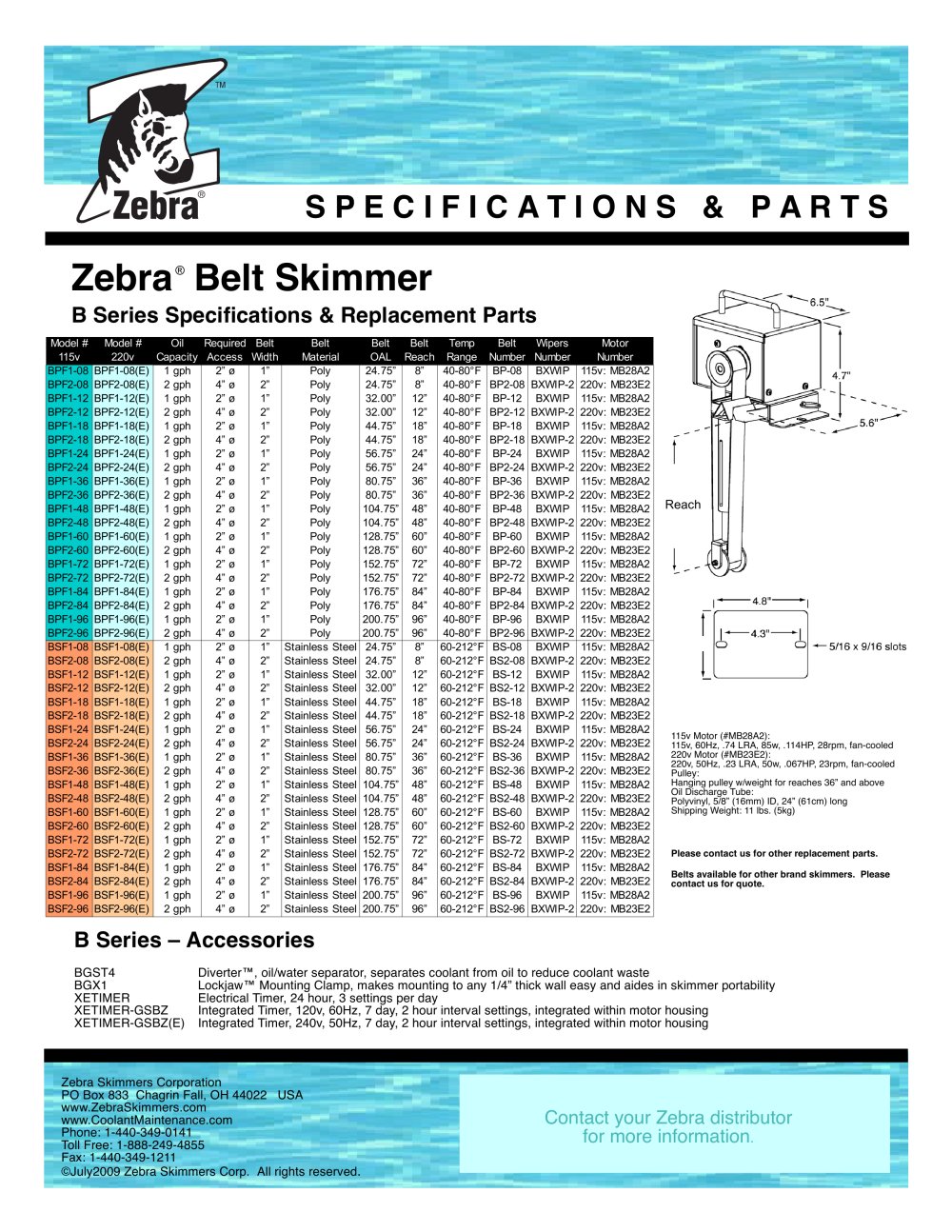

S P E C I F I C A T I O N S & P A R T S Zebra Skimmers Corporation PO Box 833 Chagrin Fall, OH 44022 USA www.ZebraSkimmers.com www.CoolantMaintenance.com Phone: 1-440-349-0141 Toll Free: 1-888-249-4855 Fax: 1-440-349-1211 Contact your Zebra distributor for more information. ©July2009 Zebra Skimmers Corp. All rights reserved. Zebra ® Belt Skimmer B Series Specifications & Replacement Parts B Series – Accessories 115v Motor (#MB28A2): 115v, 60Hz, .74 LRA, 85w, .114HP, 28rpm, fan-cooled 220v Motor (#MB23E2): 220v, 50Hz, .23 LRA, 50w, .067HP, 23rpm, fan-cooled Pulley: Hanging pulley w/weight for reaches 36” and above Oil Discharge Tube: Polyvinyl, 5/8” (16mm) ID, 24” (61cm) long Shipping Weight: 11 lbs. (5kg) Belts available for other brand skimmers. Please contact us for quote. BGST4 BGX1 XETIMER XETIMER-GSBZ XETIMER-GSBZ(E) Diverter™, oil/water separator, separates coolant from oil to reduce coolant waste Lockjaw™ Mounting Clamp, makes mounting to any 1/4” thick wall easy and aides in skimmer portability Electrical Timer, 24 hour, 3 settings per day Integrated Timer, 120v, 60Hz, 7 day, 2 hour interval settings, integrated within motor housing Integrated Timer, 240v, 50Hz, 7 day, 2 hour interval settings, integrated within motor housing Please contact us for other replacement parts. Reach Model # Model # Oil Required Belt Belt Belt Belt Temp Belt Wipers Motor 115v 220v Capacity Access Width Material OAL Reach Range Number Number Number BPF1-08 BPF1-08(E) 1 gph 2” ø 1” Poly 24.75” 8” 40-80°F BP-08 BXWIP 115v: MB28A2 BPF2-08 BPF2-08(E) 2 gph 4” ø 2” Poly 24.75” 8” 40-80°F BP2-08 BXWIP-2 220v: MB23E2 BPF1-12 BPF1-12(E) 1 gph 2” ø 1” Poly 32.00” 12” 40-80°F BP-12 BXWIP 115v: MB28A2 BPF2-12 BPF2-12(E) 2 gph 4” ø 2” Poly 32.00” 12” 40-80°F BP2-12 BXWIP-2 220v: MB23E2 BPF1-18 BPF1-18(E) 1 gph 2” ø 1” Poly 44.75” 18” 40-80°F BP-18 BXWIP 115v: MB28A2 BPF2-18 BPF2-18(E) 2 gph 4” ø 2” Poly 44.75” 18” 40-80°F BP2-18 BXWIP-2 220v: MB23E2 BPF1-24 BPF1-24(E) 1 gph 2” ø 1” Poly 56.75” 24” 40-80°F BP-24 BXWIP 115v: MB28A2 BPF2-24 BPF2-24(E) 2 gph 4” ø 2” Poly 56.75” 24” 40-80°F BP2-24 BXWIP-2 220v: MB23E2 BPF1-36 BPF1-36(E) 1 gph 2” ø 1” Poly 80.75” 36” 40-80°F BP-36 BXWIP 115v: MB28A2 BPF2-36 BPF2-36(E) 2 gph 4” ø 2” Poly 80.75” 36” 40-80°F BP2-36 BXWIP-2 220v: MB23E2 BPF1-48 BPF1-48(E) 1 gph 2” ø 1” Poly 104.75” 48” 40-80°F BP-48 BXWIP 115v: MB28A2 BPF2-48 BPF2-48(E) 2 gph 4” ø 2” Poly 104.75” 48” 40-80°F BP2-48 BXWIP-2 220v: MB23E2 BPF1-60 BPF1-60(E) 1 gph 2” ø 1” Poly 128.75” 60” 40-80°F BP-60 BXWIP 115v: MB28A2 BPF2-60 BPF2-60(E) 2 gph 4” ø 2” Poly 128.75” 60” 40-80°F BP2-60 BXWIP-2 220v: MB23E2 BPF1-72 BPF1-72(E) 1 gph 2” ø 1” Poly 152.75” 72” 40-80°F BP-72 BXWIP 115v: MB28A2 BPF2-72 BPF2-72(E) 2 gph 4” ø 2” Poly 152.75” 72” 40-80°F BP2-72 BXWIP-2 220v: MB23E2 BPF1-84 BPF1-84(E) 1 gph 2” ø 1” Poly 176.75” 84” 40-80°F BP-84 BXWIP 115v: MB28A2 BPF2-84 BPF2-84(E) 2 gph 4” ø 2” Poly 176.75” 84” 40-80°F BP2-84 BXWIP-2 220v: MB23E2 BPF1-96 BPF1-96(E) 1 gph 2” ø 1” Poly 200.75” 96” 40-80°F BP-96 BXWIP 115v: MB28A2 BPF2-96 BPF2-96(E) 2 gph 4” ø 2” Poly 200.75” 96” 40-80°F BP2-96 BXWIP-2 220v: MB23E2 BSF1-08 BSF1-08(E) 1 gph 2” ø 1” Stainless Steel 24.75” 8” 60-212°F BS-08 BXWIP 115v: MB28A2 BSF2-08 BSF2-08(E) 2 gph 4” ø 2” Stainless Steel 24.75” 8” 60-212°F BS2-08 BXWIP-2 220v: MB23E2 BSF1-12 BSF1-12(E) 1 gph 2” ø 1” Stainless Steel 32.00” 12” 60-212°F BS-12 BXWIP 115v: MB28A2 BSF2-12 BSF2-12(E) 2 gph 4” ø 2” Stainless Steel 32.00” 12” 60-212°F BS2-12 BXWIP-2 220v: MB23E2 BSF1-18 BSF1-18(E) 1 gph 2” ø 1” Stainless Steel 44.75” 18” 60-212°F BS-18 BXWIP 115v: MB28A2 BSF2-18 BSF2-18(E) 2 gph 4” ø 2” Stainless Steel 44.75” 18” 60-212°F BS2-18 BXWIP-2 220v: MB23E2 BSF1-24 BSF1-24(E) 1 gph 2” ø 1” Stainless Steel 56.75” 24” 60-212°F BS-24 BXWIP 115v: MB28A2 BSF2-24 BSF2-24(E) 2 gph 4” ø 2” Stainless Steel 56.75” 24” 60-212°F BS2-24 BXWIP-2 220v: MB23E2 BSF1-36 BSF1-36(E) 1 gph 2” ø 1” Stainless Steel 80.75” 36” 60-212°F BS-36 BXWIP 115v: MB28A2 BSF2-36 BSF2-36(E) 2 gph 4” ø 2” Stainless Steel 80.75” 36” 60-212°F BS2-36 BXWIP-2 220v: MB23E2 BSF1-48 BSF1-48(E) 1 gph 2” ø 1” Stainless Steel 104.75” 48” 60-212°F BS-48 BXWIP 115v: MB28A2 BSF2-48 BSF2-48(E) 2 gph 4” ø 2” Stainless Steel 104.75” 48” 60-212°F BS2-48 BXWIP-2 220v: MB23E2 BSF1-60 BSF1-60(E) 1 gph 2” ø 1” Stainless Steel 128.75” 60” 60-212°F BS-60 BXWIP 115v: MB28A2 BSF2-60 BSF2-60(E) 2 gph 4” ø 2” Stainless Steel 128.75” 60” 60-212°F BS2-60 BXWIP-2 220v: MB23E2 BSF1-72 BSF1-72(E) 1 gph 2” ø 1” Stainless Steel 152.75” 72” 60-212°F BS-72 BXWIP 115v: MB28A2 BSF2-72 BSF2-72(E) 2 gph 4” ø 2” Stainless Steel 152.75” 72” 60-212°F BS2-72 BXWIP-2 220v: MB23E2 BSF1-84 BSF1-84(E) 1 gph 2” ø 1” Stainless Steel 176.75” 84” 60-212°F BS-84 BXWIP 115v: MB28A2 BSF2-84 BSF2-84(E) 2 gph 4” ø 2” Stainless Steel 176.75” 84” 60-212°F BS2-84 BXWIP-2 220v: MB23E2 BSF1-96 BSF1-96(E) 1 gph 2” ø 1” Stainless Steel 200.75” 96” 60-212°F BS-96 BXWIP 115v: MB28A2 BSF2-96 BSF2-96(E) 2 gph 4” ø 2” Stainless Steel 200.75” 96” 60-212°F BS2-96 BXWIP-2 220v: MB23E2
