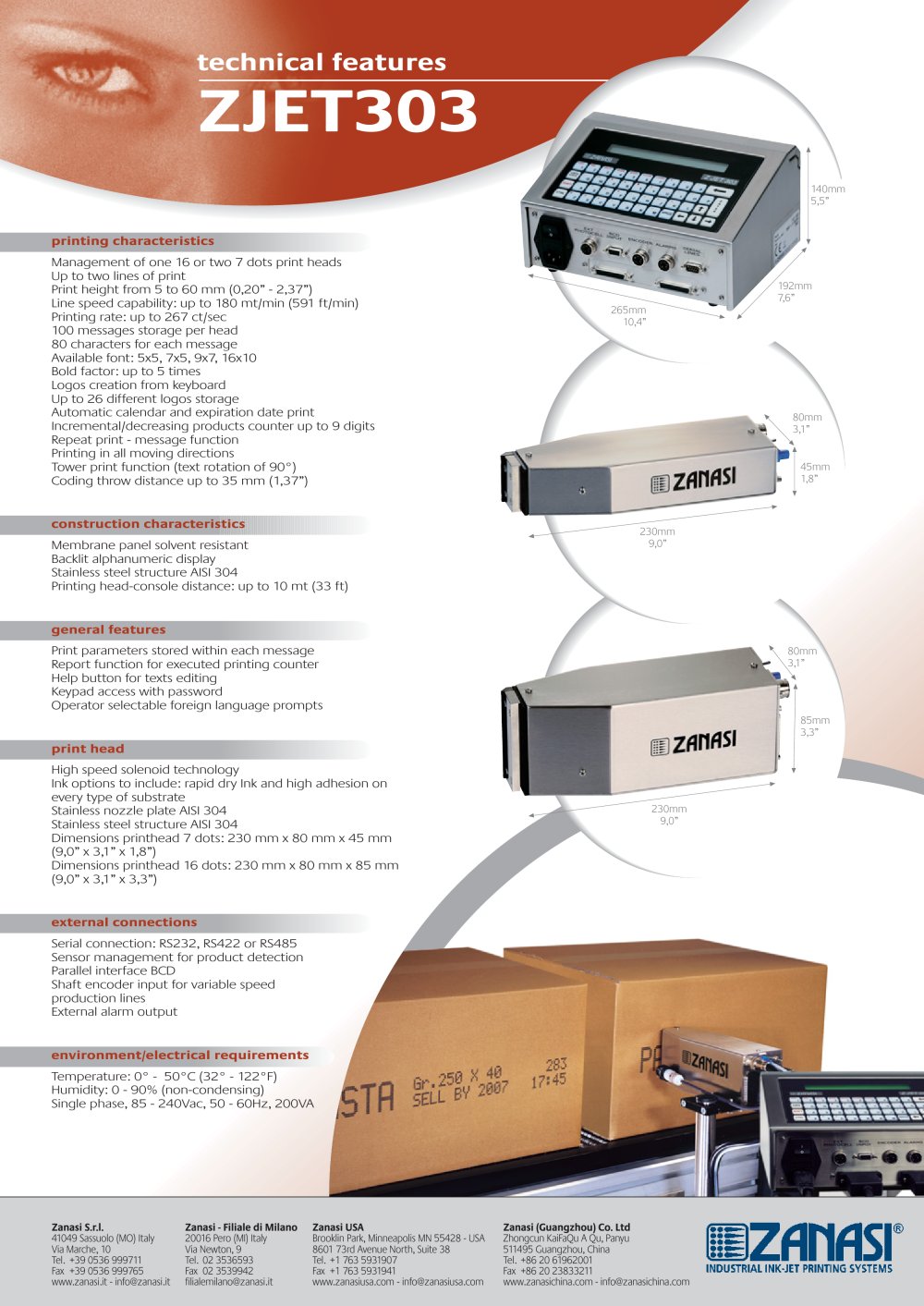

| technical features | ||||||||||||||||||||||||||||||
| 140mm 5,5" | ||||||||||||||||||||||||||||||
| printing characteristics Management of one 16 or two 7 dots print heads Up to two lines of print Print height from 5 to 60 mm (0,20" - 2,37") Line speed capability: up to 180 mt/min (591 ft/min) Printing rate: up to 267 ct/sec 100 messages storage per head 80 characters for each message Available font: 5x5, 7x5, 9x7, 16x10 Bold factor: up to 5 times Logos creation from keyboard Up to 26 different logos storage Automatic calendar and expiration date print Incremental/decreasing products counter up to 9 digits Repeat print - message function Printing in all moving directions Tower print function (text rotation of 90°) Coding throw distance up to 35 mm (1,37") | ||||||||||||||||||||||||||||||
| 265mm 10,4" | ||||||||||||||||||||||||||||||
| 80mm 3,1" | ||||||||||||||||||||||||||||||
| 45mm L 1,8" Y | ||||||||||||||||||||||||||||||
| construction characteristics Membrane panel solvent resistant Backlit alphanumeric display Stainless steel structure AISI 304 Printing head-console distance: up to 10 mt (33 ft) | ||||||||||||||||||||||||||||||
| 230mm 9,0" | ||||||||||||||||||||||||||||||
| general features Print parameters stored within each message Report function for executed printing counter Help button for texts editing Keypad access with password Operator selectable foreign language prompts | ||||||||||||||||||||||||||||||
| print head | ||||||||||||||||||||||||||||||
| High speed solenoid technology Ink options to include: rapid dry Ink and high adhesion on every type of substrate Stainless nozzle plate AISI 304 Stainless steel structure AISI 304 Dimensions printhead 7 dots: 230 mm x 80 mm x 45 mm (9,0" x 3,1" x 1,8") Dimensions printhead 16 dots: 230 mm x 80 mm x 85 mm (9,0" x 3,1" x 3,3") | ||||||||||||||||||||||||||||||
| external connections Serial connection: RS232, RS422 or RS485 Sensor management for product detection Parallel interface BCD Shaft encoder input for variable speed production lines External alarm output | ||||||||||||||||||||||||||||||
| environment/electrical requirements Temperature: 0° - 50°C (32° - 122°F) Humidity: 0 - 90% (non-condensing) Single phase, 85 - 240Vac, 50 - 60Hz, 200VA | ||||||||||||||||||||||||||||||
| Zanasi S.r.l. 41049 Sassuolo (MO) Italy Via Marche, 10 Tel. +39 0536 999711 Fax +39 0536 999765 www.zanasi.it - info@zanasi.it | Zanasi - Filiale di Milano Zanasi USA 20016 Pero (MI) Italy Brooklin Park, Minneapolis MN 55428 - USA Via Newton, 9 8601 73rd Avenue North, Suite 38 Tel. 02 3536593 Tel. +1 763 5931907 Fax 02 3539942 Fax +1 763 5931941 filialemilano@zanasi.it www.zanasiusa.com - info@zanasiusa.com | Zanasi (Guangzhou) Co. Ltd Zhongcun KaiFaQu A Qu, Panyu 511495 Guangzhou, China Tel. +86 20 61962001 Fax +86 20 23833211 www.zanasichina.com - info@zanasichina.com | ||||||||||||||||||||||||||||
