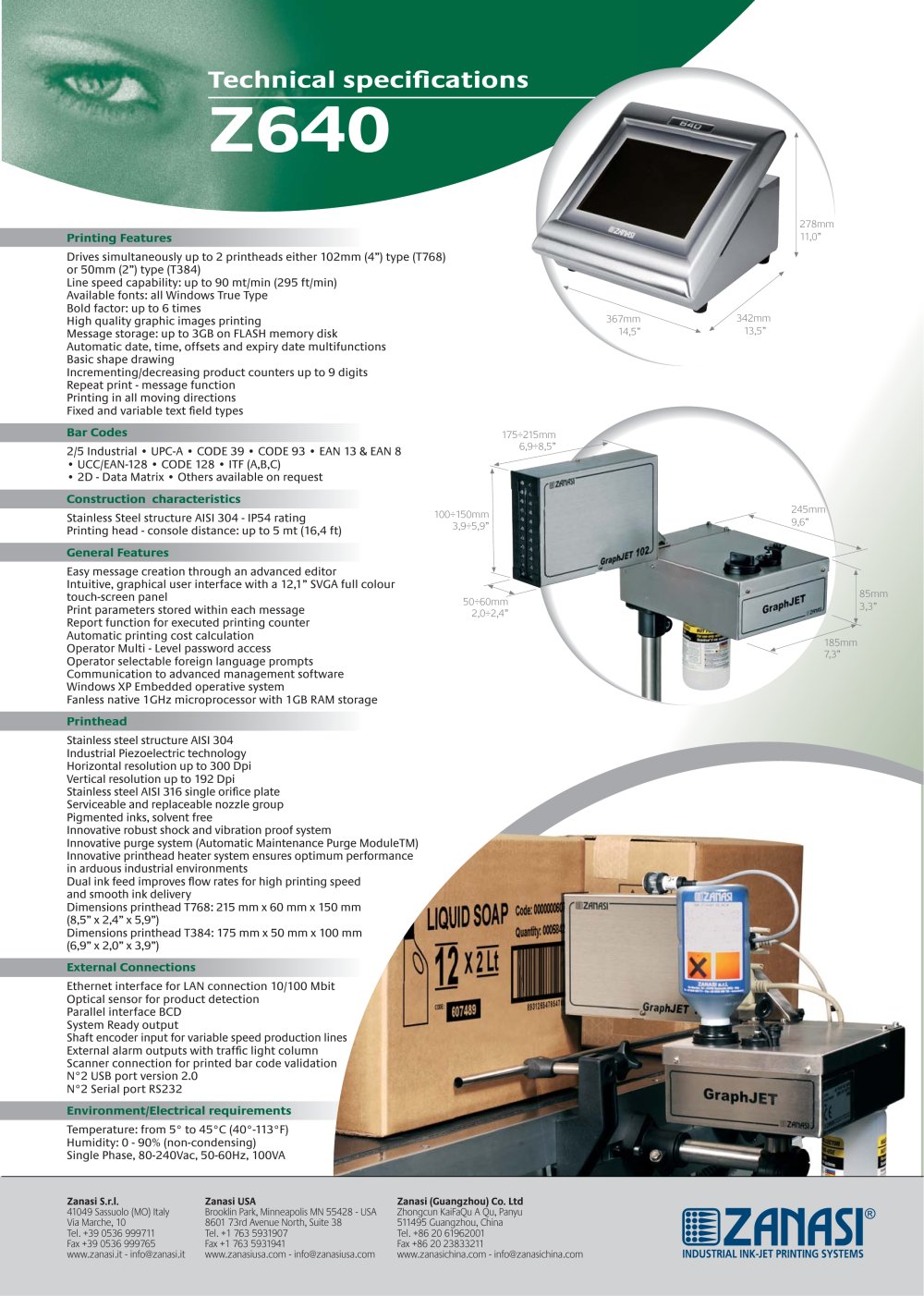

Z640 - Zanasi - #2

r

Drives simultaneously up to 2 printheads either 102mm (4") type (T768) or 50mm (2") type (T384)

Line speed capability: up to 90 mt/min (295 ft/min) Available fonts: all Windows True Type Bold factor: up to 6 times High quality graphic images printing Message storage: up to 3GB on FLASH memory disk Automatic date, time, offsets and expiry date multifunctions Basic shape drawing

Incrementing/decreasing product counters up to 9 digits Repeat print - message function Printing in all moving directions Fixed and variable text field types

2/5 Industrial • UPC-A • CODE 39 • CODE 93 • EAN 13 & EAN 8

• UCC/EAN-128 • CODE 128 • ITF (A,B,C)

• 2D - Data Matrix • Others available on request

342mm 13,5"

367mm 14,5"

175+215mm

6,9+8,5"

100150mm 3,9+5,9"

Stainless Steel structure AISI 304 - IP54 rating

Printing head - console distance: up to 5 mt (16,4 ft)

Easy message creation through an advanced editor Intuitive, graphical user interface with a 12,1" SVGA full colour touch-screen panel

Print parameters stored within each message Report function for executed printing counter Automatic printing cost calculation Operator Multi - Level password access Operator selectable foreign language prompts Communication to advanced management software Windows XP Embedded operative system Fanless native 1GHz microprocessor with 1GB RAM storage

Stainless steel structure AISI 304 Industrial Piezoelectric technology Horizontal resolution up to 300 Dpi Vertical resolution up to 192 Dpi Stainless steel AISI 316 single orifice plate Serviceable and replaceable nozzle group Pigmented inks, solvent free Innovative robust shock and vibration proof system Innovative purge system (Automatic Maintenance Purge ModuleTM) Innovative printhead heater system ensures optimum performance in arduous industrial environments Dual ink feed improves flow rates for high printing speed and smooth ink delivery

85mm

3,3"

50+60mm 2,0+2,4"

185mm 7,3"

Dimensions printhead T768: 215 mm x 60 mm x 150 mm (8,5" x 2,4" x 5,9")

Dimensions printhead T384: 175 mm x 50 mm x 100 mm (6,9" x 2,0" x 3,9")

Ethernet interface for LAN connection 10/100 Mbit Optical sensor for product detection Parallel interface BCD System Ready output

Shaft encoder input for variable speed production lines External alarm outputs with traffic light column M Scanner connection for printed bar code validation N°2 USB port version 2.0 N°2 Serial port RS232

Temperature: from 5° to 45°C (40°-113°F) Humidity: 0 - 90% (non-condensing) Single Phase, 80-240Vac, 50-60Hz, 100VA
