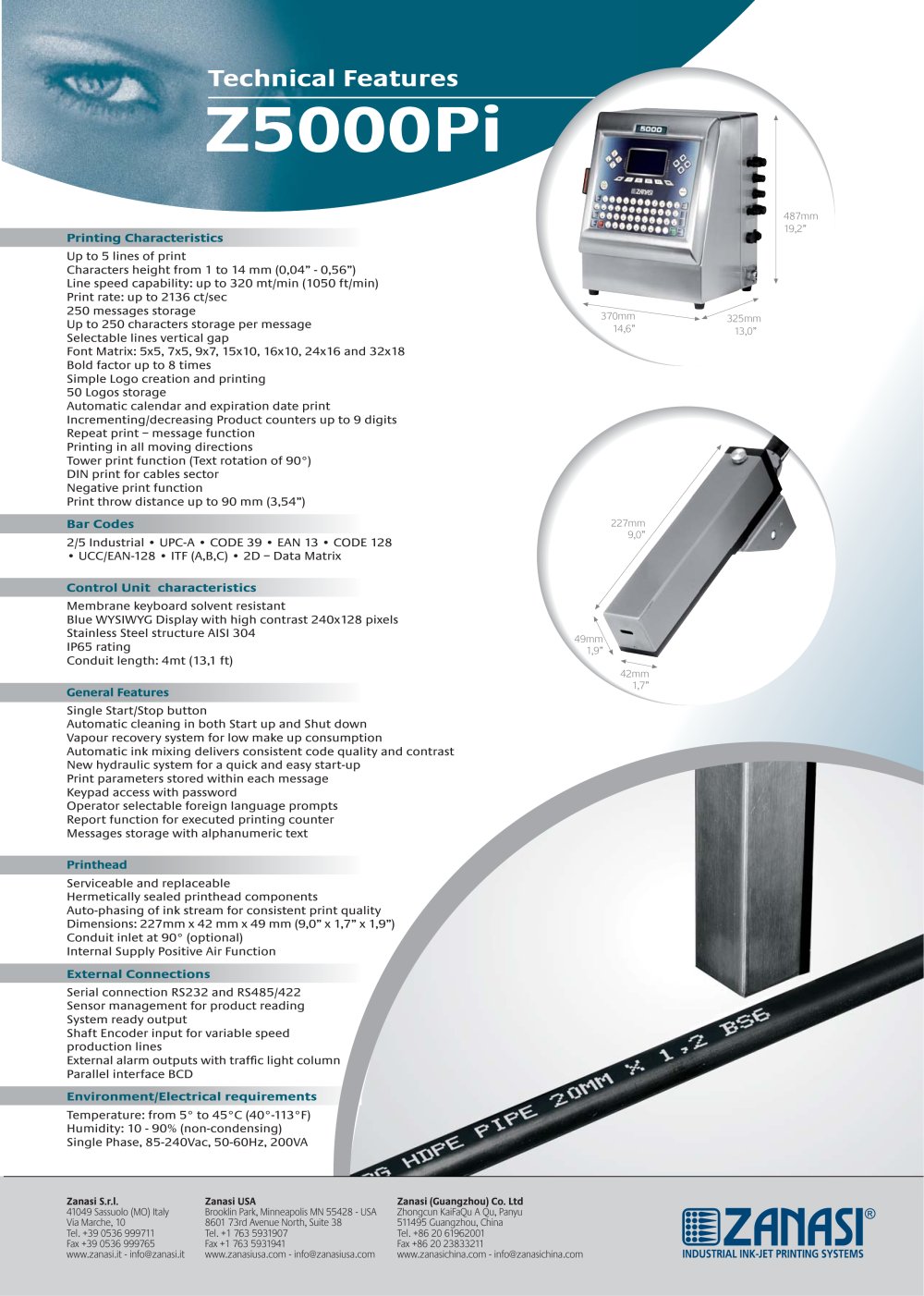

Technical Features

Z5000PI - 23719 Z5000Pi

487mm19,2”325mm 13,0”370mm14,6” Printing Characteristics Up to 5 lines of print Characters height from 1 to 14 mm (0,04” - 0,56”) Line speed capability: up to 320 mt/min (1050 ft/min) Print rate: up to 2136 ct/sec 250 messages storage Up to 250 characters storage per message Selectable lines vertical gap Font Matrix: 5x5, 7x5, 9x7, 15x10, 16x10, 24x16 and 32x18 Bold factor up to 8 times Simple Logo creation and printing 50 Logos storageAutomatic calendar and expiration date printIncrementing/decreasing Product counters up to 9 digits Repeat print – message function Printing in all moving directions Tower print function (Text rotation of 90°) DIN print for cables sector Negative print function Print throw distance up to 90 mm (3,54”) Bar Codes
227mm9,0”49mm1,9”42mm1,7” 2/5 Industrial • UPC-A • CODE 39 • EAN 13 • CODE 128 • UCC/EAN-128 • ITF (A,B,C) • 2D – Data Matrix Control Unit characteristics Membrane keyboard solvent resistant Blue WYSIWYG Display with high contrast 240x128 pixels Stainless Steel structure AISI 304 IP65 rating Conduit length: 4mt (13,1 ft) General Features Single Start/Stop button Automatic cleaning in both Start up and Shut down Vapour recovery system for low make up consumption Automatic ink mixing delivers consistent code quality and contrast New hydraulic system for a quick and easy start-up Print parameters stored within each message Keypad access with password Operator selectable foreign language prompts Report function for executed printing counter Messages storage with alphanumeric text Printhead Serviceable and replaceable Hermetically sealed printhead components Auto-phasing of ink stream for consistent print quality Dimensions: 227mm x 42 mm x 49 mm (9,0” x 1,7” x 1,9”) Conduit inlet at 90° (optional) Internal Supply Positive Air Function External Connections Serial connection RS232 and RS485/422 Sensor management for product reading System ready output Shaft Encoder input for variable speed production lines External alarm outputs with traffi c light columnParallel interface BCD
Zanasi (Guangzhou) Co. Ltd Zhongcun KaiFaQu A Qu, Panyu 511495 Guangzhou, China Tel. +86 20 61962001 Fax +86 20 23833211 www.zanasichina.com - info@zanasichina.com Environment/Electrical requirements Temperature: from 5° to 45°C (40°-113°F) Humidity: 10 - 90% (non-condensing) Single Phase, 85-240Vac, 50-60Hz, 200VA
Zanasi USA Brooklin Park, Minneapolis MN 55428 - USA8601 73rd Avenue North, Suite 38Tel. +1 763 5931907 Fax +1 763 5931941 www.zanasiusa.com - info@zanasiusa.com Zanasi S.r.l. 41049 Sassuolo (MO) Italy Via Marche, 10 Tel. +39 0536 999711 Fax +39 0536 999765 www.zanasi.it - info@zanasi.it
