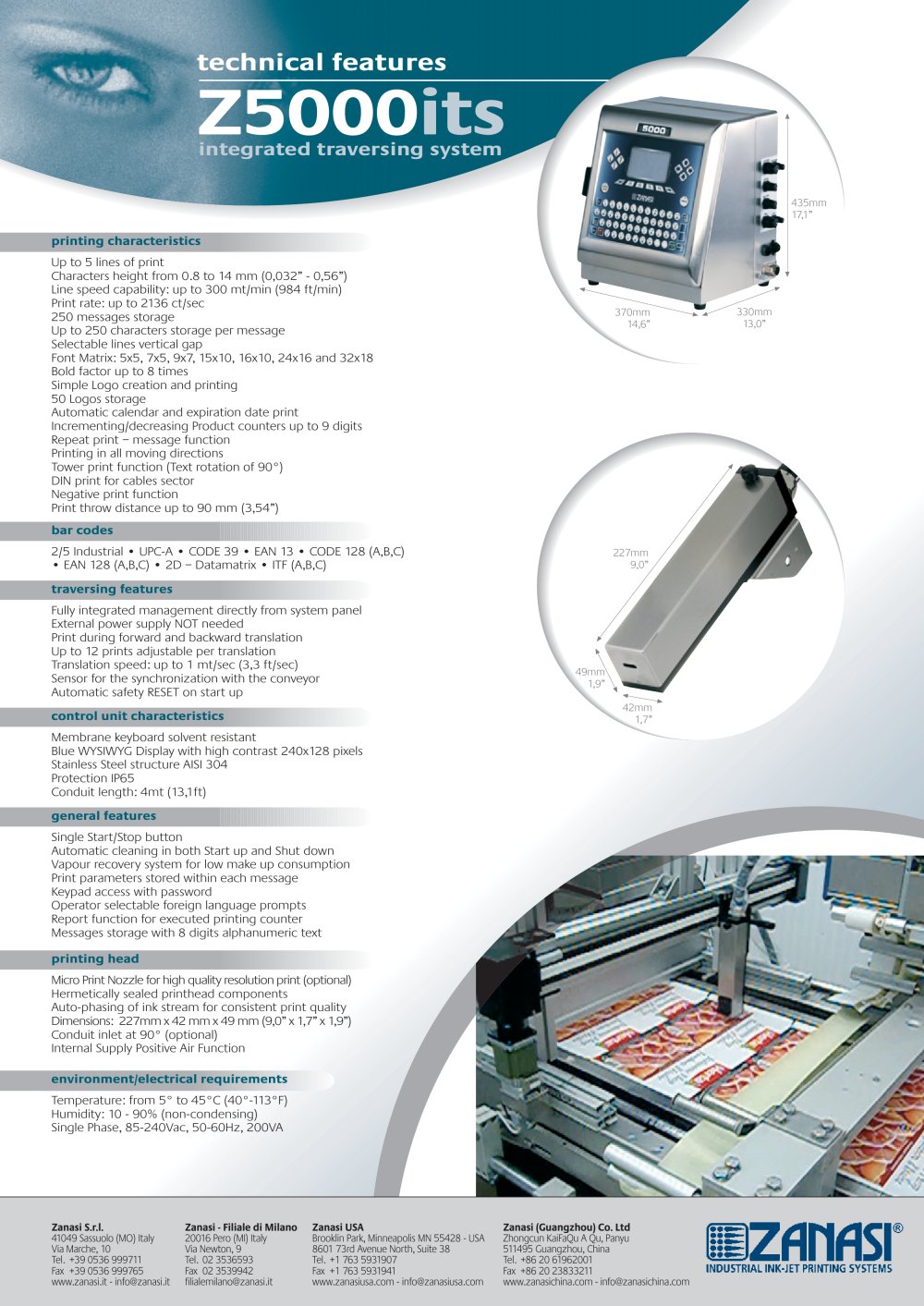

Z5000its - Zanasi - #2

Up to 5 lines of print

Characters height from 0.8 to 14 mm (0,032" - 0,56") Line speed capability: up to 300 mt/min (984 ft/min) Print rate: up to 2136 ct/sec

250 messages storage Up to 250 characters storage per message

Selectable lines vertical gap

Font Matrix: 5x5, 7x5, 9x7, 15x10, 16x10, 24x16 and 32x18 Bold factor up to 8 times

Simple Logo creation and printing 50 Logos storage

Automatic calendar and expiration date print Incrementing/decreasing Product counters up to 9 digits Repeat print - message function

Printing in all moving directions

Tower print function (Text rotation of 90°) DIN print for cables sector Negative print function Print throw distance up to 90 mm (3,54")

2/5 Industrial • UPC-A • CODE 39 • EAN 13 • CODE 128 (A,B,C) • EAN 128 (A,B,C) • 2D - Datamatrix • ITF (A,B,C)

Fully integrated management directly from system panel External power supply NOT needed Print during forward and backward translation Up to 12 prints adjustable per translation

Translation speed: up to 1 mt/sec (3,3 ft/sec)

Sensor for the synchronization with the conveyor

Automatic safety RESET on start up

Membrane keyboard solvent resistant Blue WYSIWYG Display with high contrast 240x128 pixels

Stainless Steel structure AISI 304 Protection IP65

Conduit length: 4mt (13,1ft)

330mm 13,0"

370mm 14,6"

227mm 9,0"

Single Start/Stop button

Automatic cleaning in both Start up and Shut down

Vapour recovery system for low make up consumption

Print parameters stored within each message

Keypad access with password

Operator selectable foreign language prompts

Report function for executed printing counter

Messages storage with 8 digits alphanumeric text

Micro Print Nozzle for high quality resolution print (optional) Hermetically sealed printhead components Auto-phasing of ink stream for consistent print quality Dimensions: 227mm x 42 mm x 49 mm (9,0" x 1,7" x 1,9") Conduit inlet at 90° (optional) Internal Supply Positive Air Function

Temperature: from 5° to 45°C (40°-113°F) Humidity: 10 - 90% (non-condensing)

Single Phase, 85-240Vac, 50-60Hz, 200VA
