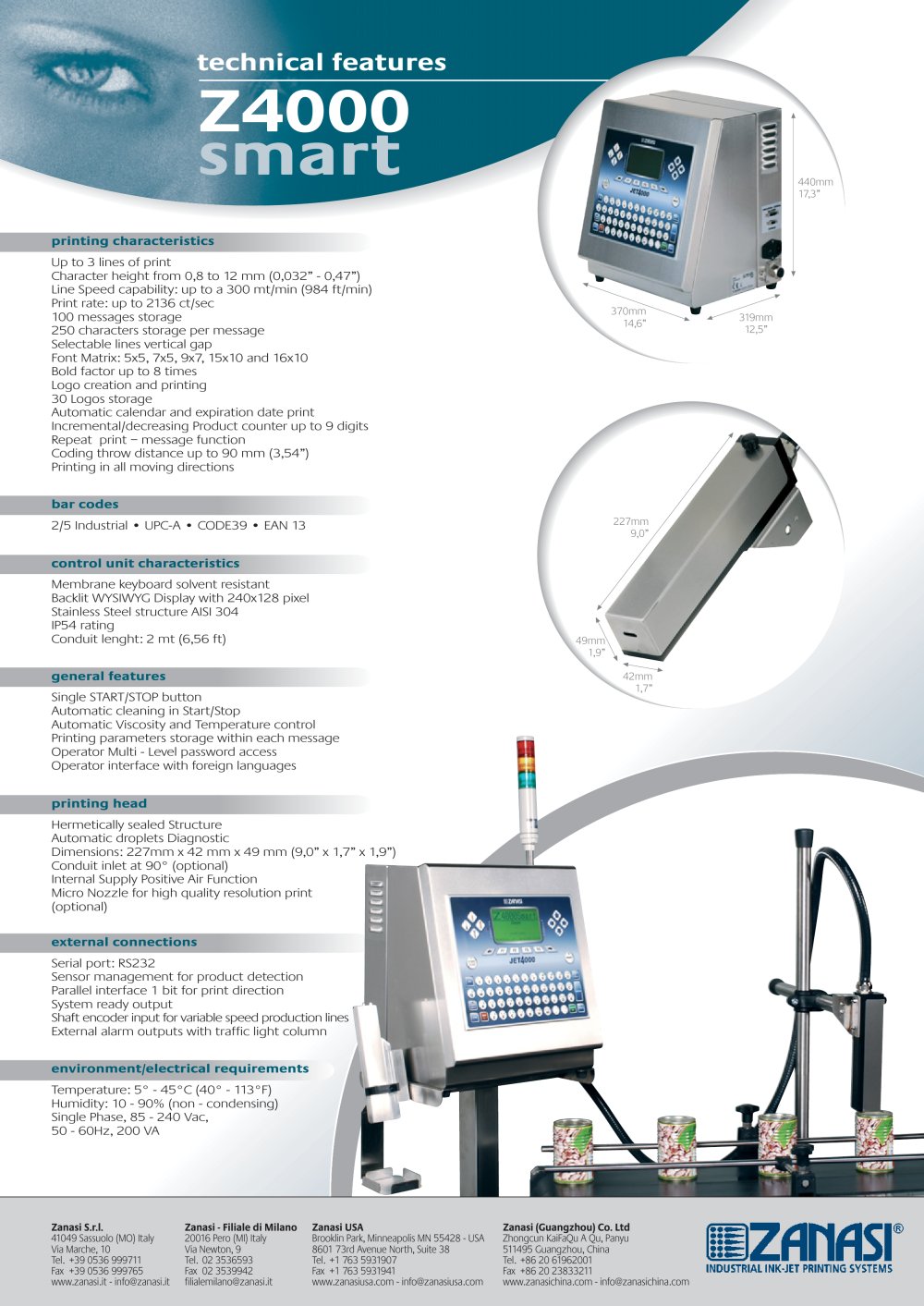

technical features

Z4000 Smart Plus - 23719 Z4000smart

printing characteristics Up to 3 lines of print Character height from 0,8 to 12 mm (0,032” - 0,47”) Line Speed capability: up to a 300 mt/min (984 ft/min) Print rate: up to 2136 ct/sec 100 messages storage 250 characters storage per message Selectable lines vertical gapFont Matrix: 5x5, 7x5, 9x7, 15x10 and 16x10Bold factor up to 8 times Logo creation and printing 30 Logos storage Automatic calendar and expiration date print Incremental/decreasing Product counter up to 9 digits Repeat print – message function Coding throw distance up to 90 mm (3,54”) Printing in all moving directions
370mm14,6”319mm12,5” 440mm17,3” bar codes 2/5 Industrial • UPC-A • CODE39 • EAN 13
227mm9,0” control unit characteristics Membrane keyboard solvent resistant Backlit WYSIWYG Display with 240x128 pixel Stainless Steel structure AISI 304 IP54 rating Conduit lenght: 2 mt (6,56 ft)
49mm1,9”42mm1,7” general features Single START/STOP button Automatic cleaning in Start/Stop Automatic Viscosity and Temperature control Printing parameters storage within each message Operator Multi - Level password access Operator interface with foreign languages printing head Hermetically sealed StructureAutomatic droplets Diagnostic Dimensions: 227mm x 42 mm x 49 mm (9,0” x 1,7” x 1,9”) Conduit inlet at 90° (optional) Internal Supply Positive Air Function Micro Nozzle for high quality resolution print (optional) external connections Serial port: RS232 Sensor management for product detection Parallel interface 1 bit for print direction System ready output Shaft encoder input for variable speed production lines External alarm outputs with traffic light column
Zanasi (Guangzhou) Co. Ltd Zhongcun KaiFaQu A Qu, Panyu 511495 Guangzhou, China Tel.+86 20 61962001 Fax+86 20 23833211 www.zanasichina.com - info@zanasichina.com Zanasi USA environment/electrical requirements
Brooklin Park, Minneapolis MN 55428 - USA 8601 73rd Avenue North, Suite 38 Tel.+1 763 5931907 Fax+1 763 5931941 www.zanasiusa.com - info@zanasiusa.com Temperature: 5° - 45°C (40° - 113°F) Humidity: 10 - 90% (non - condensing) Single Phase, 85 - 240 Vac, 50 - 60Hz, 200 VA
Zanasi - Filiale di Milano 20016 Pero (MI) Italy Via Newton, 9 Tel.02 3536593 Fax02 3539942 filialemilano@zanasi.it Zanasi S.r.l. 41049 Sassuolo (MO) Italy Via Marche, 10 Tel.+39 0536 999711 Fax+39 0536 999765 www.zanasi.it - info@zanasi.it
