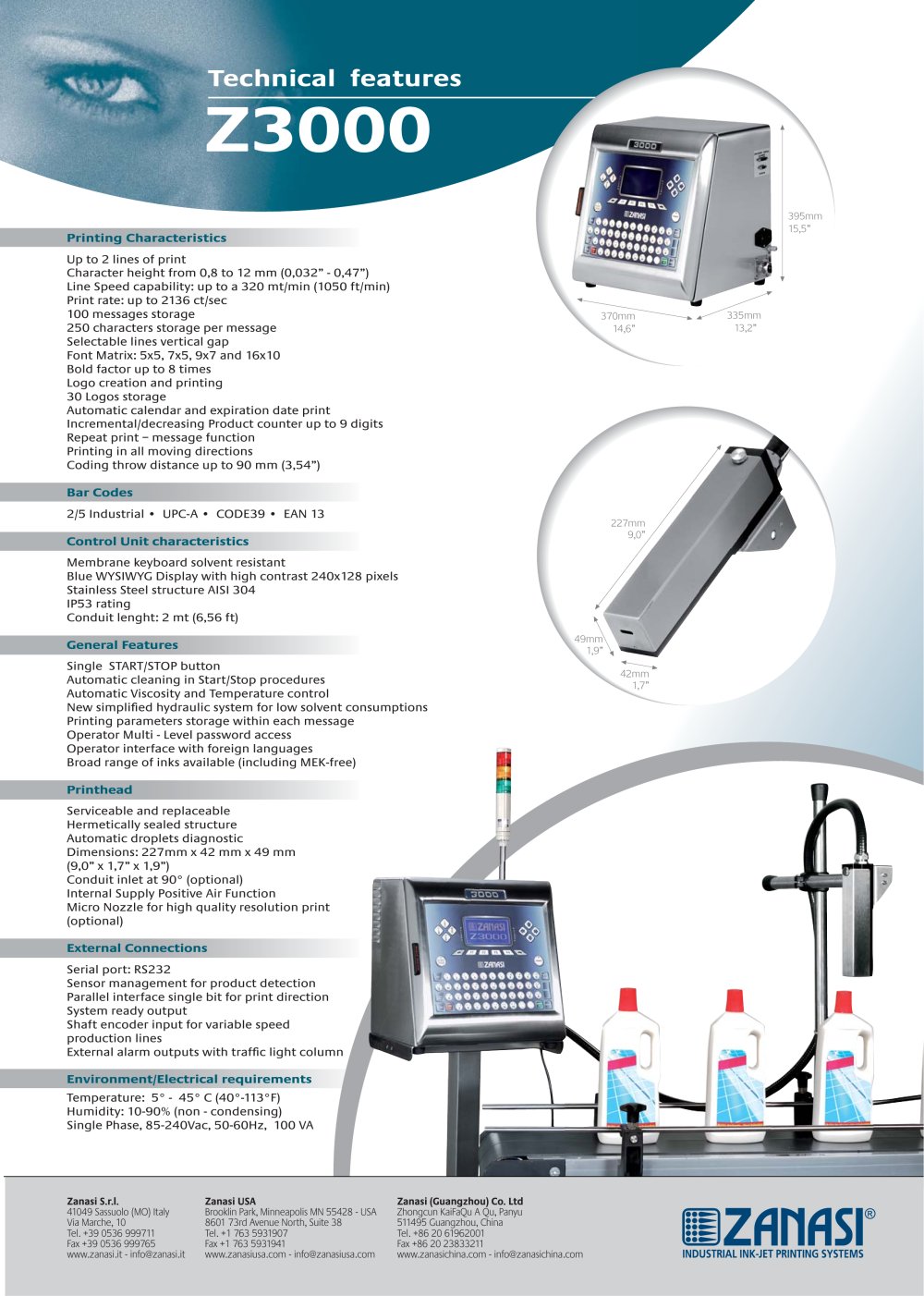

Technical features

Z3000 - 23719 Z3000

395mm15,5”335mm 13,2”370mm14,6” Printing Characteristics Up to 2 lines of printCharacter height from 0,8 to 12 mm (0,032” - 0,47”)Line Speed capability: up to a 320 mt/min (1050 ft/min)Print rate: up to 2136 ct/sec 100 messages storage 250 characters storage per message Selectable lines vertical gapFont Matrix: 5x5, 7x5, 9x7 and 16x10 Bold factor up to 8 timesLogo creation and printing30 Logos storageAutomatic calendar and expiration date print Incremental/decreasing Product counter up to 9 digitsRepeat print – message functionPrinting in all moving directions Coding throw distance up to 90 mm (3,54”) Bar Codes 2/5 Industrial • UPC-A • CODE39 • EAN 13
227mm9,0” Control Unit characteristics Membrane keyboard solvent resistantBlue WYSIWYG Display with high contrast 240x128 pixelsStainless Steel structure AISI 304IP53 ratingConduit lenght: 2 mt (6,56 ft) General Features
49mm1,9”42mm1,7” Single START/STOP buttonAutomatic cleaning in Start/Stop proceduresAutomatic Viscosity and Temperature controlNew simplifi ed hydraulic system for low solvent consumptionsPrinting parameters storage within each messageOperator Multi - Level password access Operator interface with foreign languages Broad range of inks available (including MEK-free) Printhead Serviceable and replaceableHermetically sealed structure Automatic droplets diagnosticDimensions: 227mm x 42 mm x 49 mm (9,0” x 1,7” x 1,9”)Conduit inlet at 90° (optional)Internal Supply Positive Air Function Micro Nozzle for high quality resolution print (optional) External Connections Serial port: RS232Sensor management for product detection Parallel interface single bit for print direction System ready outputShaft encoder input for variable speedproduction linesExternal alarm outputs with traffi c light column Environment/Electrical requirements
Zanasi (Guangzhou) Co. Ltd Zhongcun KaiFaQu A Qu, Panyu 511495 Guangzhou, China Tel. +86 20 61962001 Fax +86 20 23833211 www.zanasichina.com - info@zanasichina.com Temperature: 5° - 45° C (40°-113°F)Humidity: 10-90% (non - condensing)Single Phase, 85-240Vac, 50-60Hz, 100 VA
Zanasi USA Brooklin Park, Minneapolis MN 55428 - USA8601 73rd Avenue North, Suite 38Tel. +1 763 5931907 Fax +1 763 5931941 www.zanasiusa.com - info@zanasiusa.com Zanasi S.r.l. 41049 Sassuolo (MO) Italy Via Marche, 10 Tel. +39 0536 999711 Fax +39 0536 999765 www.zanasi.it - info@zanasi.it
