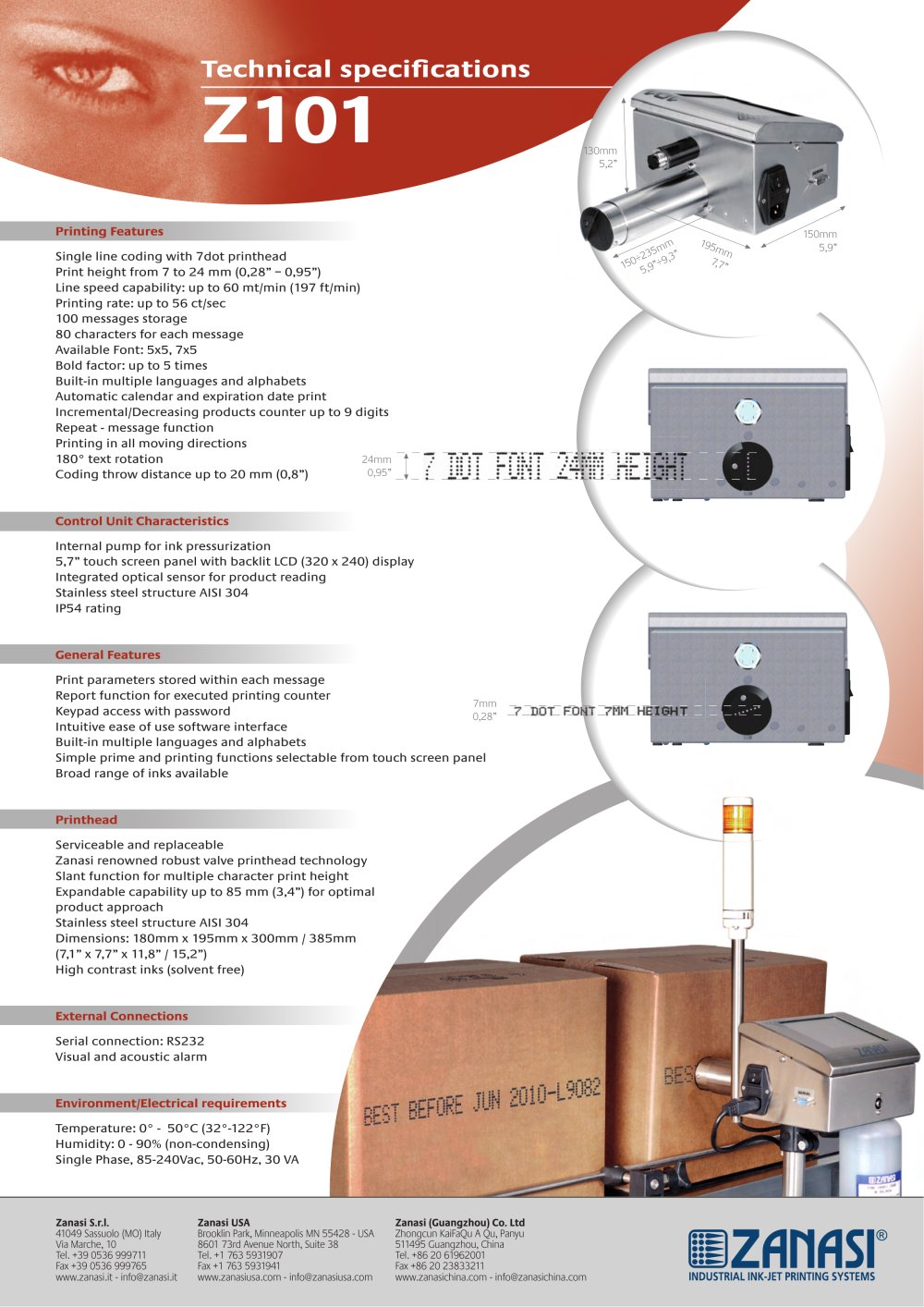

Technical specifi cations

Z101 - 23719 Z101

130mm5,2”150mm5,9” Printing Features
195mm7,7” Single line coding with 7dot printheadPrint height from 7 to 24 mm (0,28” – 0,95”)Line speed capability: up to 60 mt/min (197 ft/min)Printing rate: up to 56 ct/sec 100 messages storage 80 characters for each message Available Font: 5x5, 7x5 Bold factor: up to 5 timesBuilt-in multiple languages and alphabetsAutomatic calendar and expiration date print Incremental/Decreasing products counter up to 9 digitsRepeat - message functionPrinting in all moving directions 180° text rotationCoding throw distance up to 20 mm (0,8”)
150÷235mm5,9”÷9,3” 24mm0,95” Control Unit Characteristics Internal pump for ink pressurization5,7” touch screen panel with backlit LCD (320 x 240) displayIntegrated optical sensor for product readingStainless steel structure AISI 304IP54 rating General Features Print parameters stored within each messageReport function for executed printing counterKeypad access with passwordIntuitive ease of use software interfaceBuilt-in multiple languages and alphabetsSimple prime and printing functions selectable from touch screen panelBroad range of inks available
7mm0,28” mm 2 8” Printhead Serviceable and replaceableZanasi renowned robust valve printhead technologySlant function for multiple character print height Expandable capability up to 85 mm (3,4”) for optimalproduct approachStainless steel structure AISI 304 Dimensions: 180mm x 195mm x 300mm / 385mm(7,1” x 7,7” x 11,8” / 15,2”)High contrast inks (solvent free) External Connections Serial connection: RS232Visual and acoustic alarm
Zanasi (Guangzhou) Co. Ltd Zhongcun KaiFaQu A Qu, Panyu 511495 Guangzhou, China Tel. +86 20 61962001 Fax +86 20 23833211 www.zanasichina.com - info@zanasichina.com Environment/Electrical requirements Temperature: 0° - 50°C (32°-122°F) Humidity: 0 - 90% (non-condensing)Single Phase, 85-240Vac, 50-60Hz, 30 VA
