Z-LASER

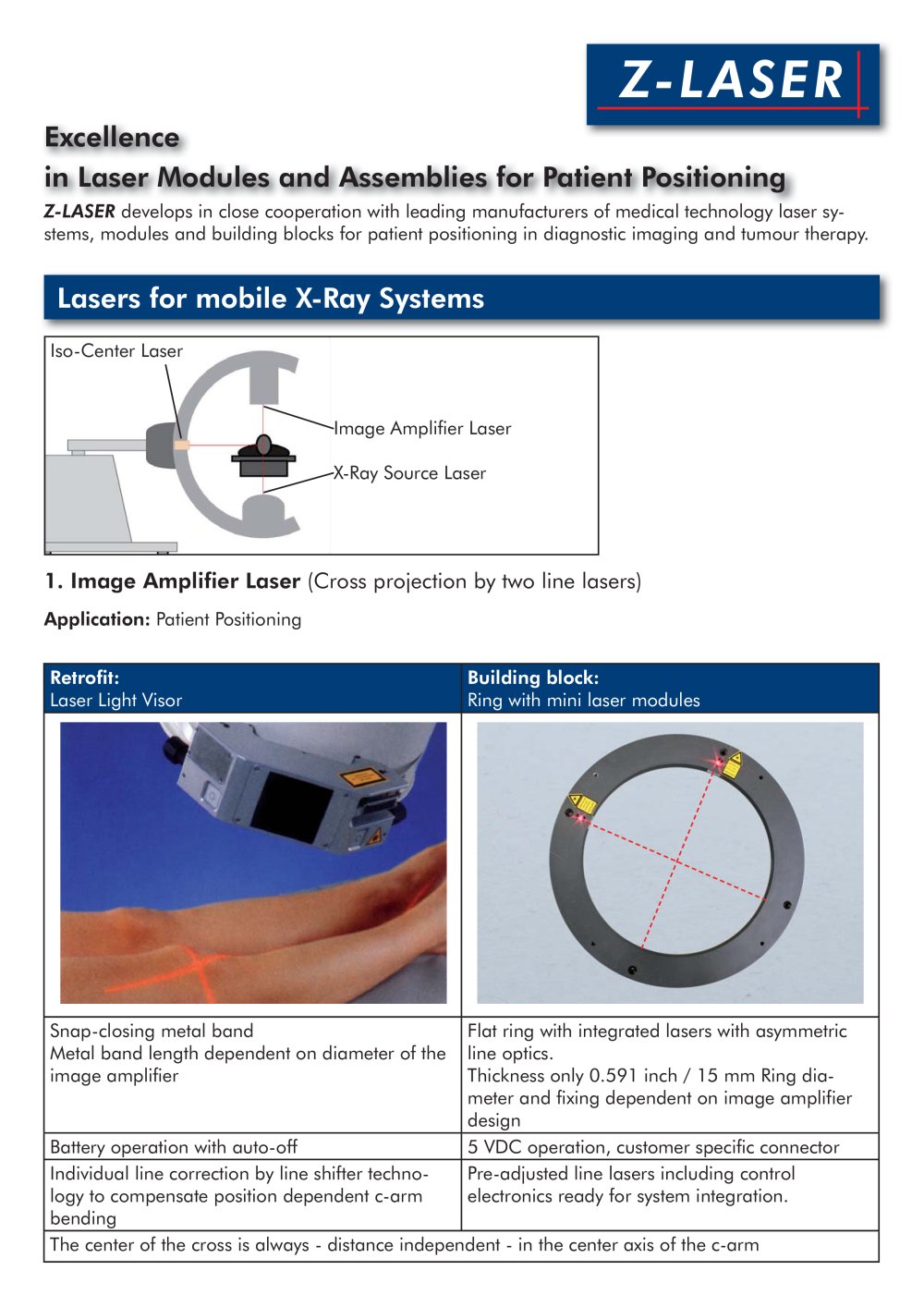

Excellencein Laser Modules and Assemblies for Patient Positioning

Z-LASER develops in close cooperation with leading manufacturers of medical technology laser sy-stems, modules and building blocks for patient positioning in diagnostic imaging and tumour therapy.

Lasers for mobile X-Ray Systems

Iso-Center Laser Image Amplifier LaserX-Ray Source Laser

1. Image Amplifier Laser (Cross projection by two line lasers)

Application: Patient Positioning Retrofit: Laser Light Visor Building block: Ring with mini laser modules Snap-closing metal bandMetal band length dependent on diameter of the image amplifierFlat ring with integrated lasers with asymmetric line optics. Thickness only 0.591 inch / 15 mm Ring dia- meter and fixing dependent on image amplifier designBattery operation with auto-off5 VDC operation, customer specific connector Individual line correction by line shifter techno-logy to compensate position dependent c-arm bendingPre-adjusted line lasers including control electronics ready for system integration.The center of the cross is always - distance independent - in the center axis of the c-arm
