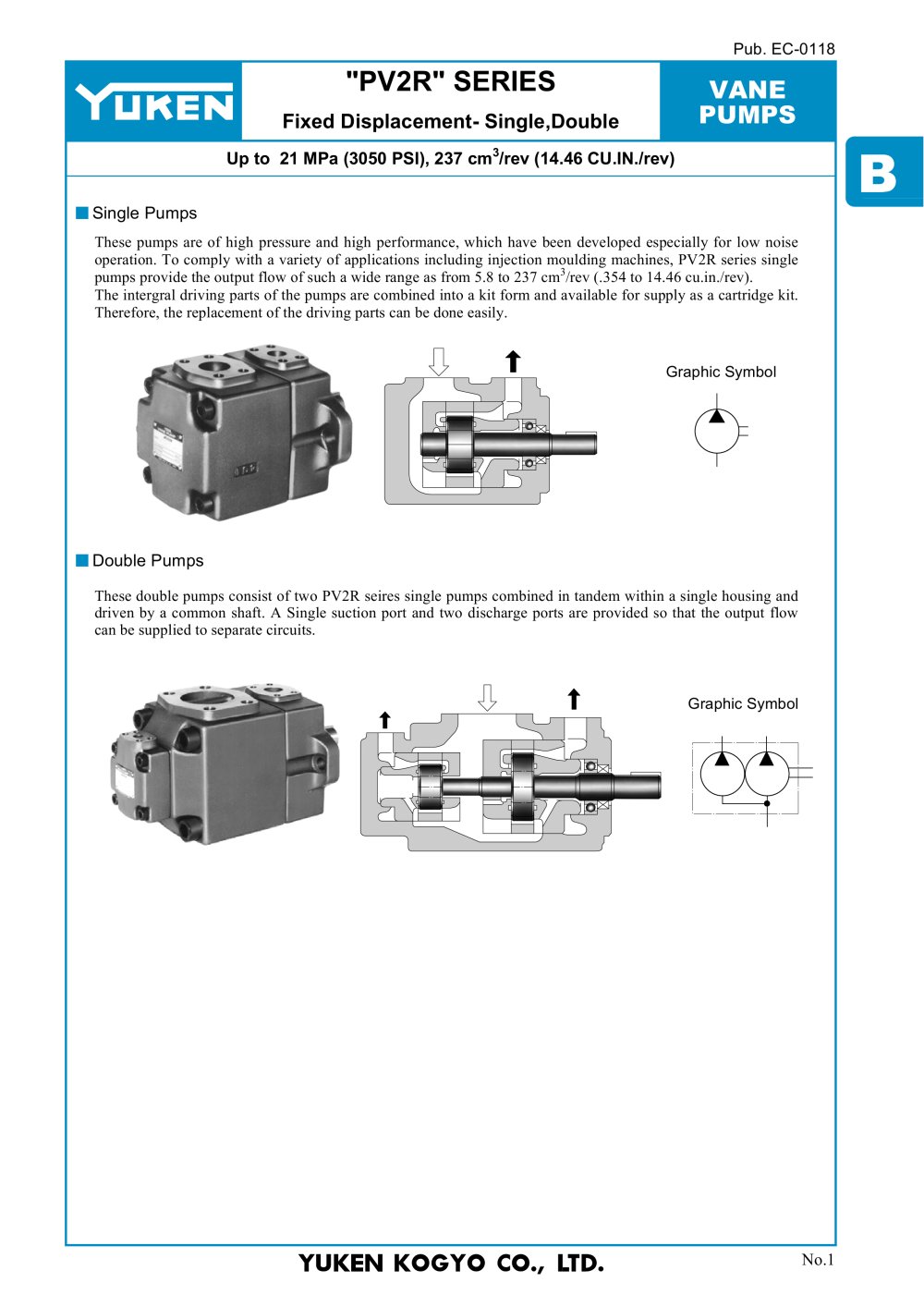

| Pub. EC-0118 | ||||||
| | ||||||
| "PV2R" SERIES Fixed Displacement- Single,Double | | |||||
| VANE PUMPS | | |||||
| | ||||||
| | ||||||
| Up to 21 MPa (3050 PSI), 237 cm3/rev (14.46 CU.IN./rev) | ||||||
| | ||||||
| Single Pumps These pumps are of high pressure and high performance, which have been developed especially for low noise operation. To comply with a variety of applications including injection moulding machines, PV2R series single pumps provide the output flow of such a wide range as from 5.8 to 237 cm3/rev (.354 to 14.46 cu.in./rev). The intergral driving parts of the pumps are combined into a kit form and available for supply as a cartridge kit. Therefore, the replacement of the driving parts can be done easily. | ||||||
| | ||||||
| | Graphic Symbol | |||||
| f4^ | y I | |||||
| | ||||||
| Double Pumps These double pumps consist of two PV2R seires single pumps combined in tandem within a single housing and driven by a common shaft. A Single suction port and two discharge ports are provided so that the output flow can be supplied to separate circuits. | ||||||
| | ||||||
| Graphic Symbol | ||||||
| | ||||||
| YUKEN KOGYO CO., LTD. | No.1 | |||||
| | ||||||
