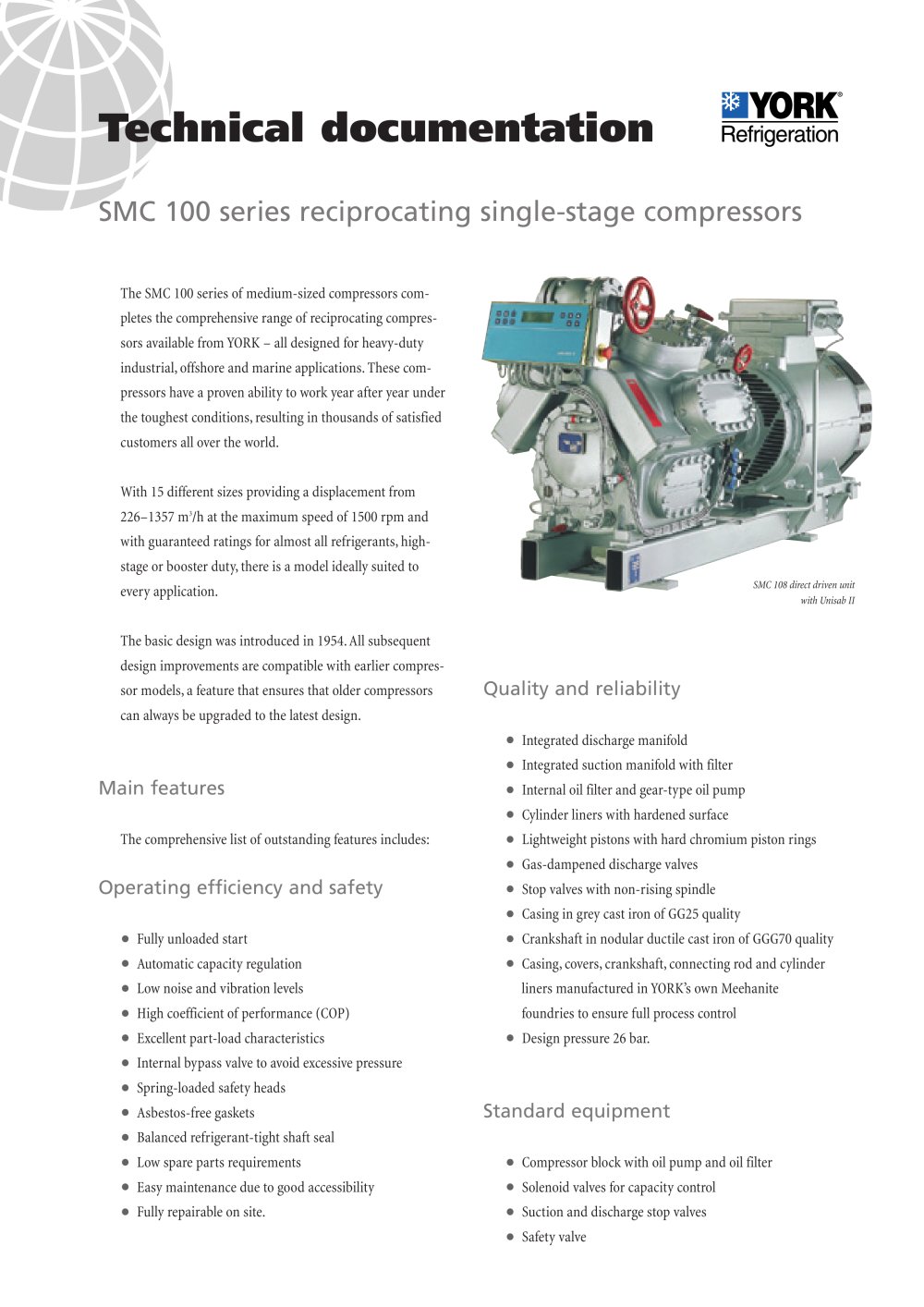

| Ü aYo«c Technical documentation Refrigeration SMC 100 series reciprocating single-stage compressors | |||||||||||||||||||||
| The SMC 100 series of medium-sized compressors completes the comprehensive range of reciprocating compressors available from YORK - all designed for heavy-duty industrial, offshore and marine applications. These compressors have a proven ability to work year after year under the toughest conditions, resulting in thousands of satisfied customers all over the world. With 15 different sizes providing a displacement from 226-1357 m3/h at the maximum speed of 1500 rpm and with guaranteed ratings for almost all refrigerants, high-stage or booster duty, there is a model ideally suited to every application. | |||||||||||||||||||||
| SMC 108 direct driven unit with Unisab II | |||||||||||||||||||||
| The basic design was introduced in 1954.All subsequent design improvements are compatible with earlier compressor models, a feature that ensures that older compressors can always be upgraded to the latest design. | |||||||||||||||||||||
| Quality and reliability | |||||||||||||||||||||
| Integrated discharge manifold Integrated suction manifold with filter Internal oil filter and gear-type oil pump Cylinder liners with hardened surface Lightweight pistons with hard chromium piston rings Gas-dampened discharge valves Stop valves with non-rising spindle Casing in grey cast iron of GG25 quality Crankshaft in nodular ductile cast iron of GGG70 quality Casing, covers, crankshaft, connecting rod and cylinder liners manufactured in YORK's own Meehanite foundries to ensure full process control Design pressure 26 bar. | |||||||||||||||||||||
| Main features | |||||||||||||||||||||
| The comprehensive list of outstanding features includes: | |||||||||||||||||||||
| Operating efficiency and safety | |||||||||||||||||||||
| Fully unloaded start Automatic capacity regulation Low noise and vibration levels High coefficient of performance (COP) Excellent part-load characteristics Internal bypass valve to avoid excessive pressure Spring-loaded safety heads Asbestos-free gaskets Balanced refrigerant-tight shaft seal Low spare parts requirements Easy maintenance due to good accessibility Fully repairable on site. | |||||||||||||||||||||
| Standard equipment • Compressor block with oil pump and oil filter • Solenoid valves for capacity control • Suction and discharge stop valves • Safety valve | |||||||||||||||||||||
