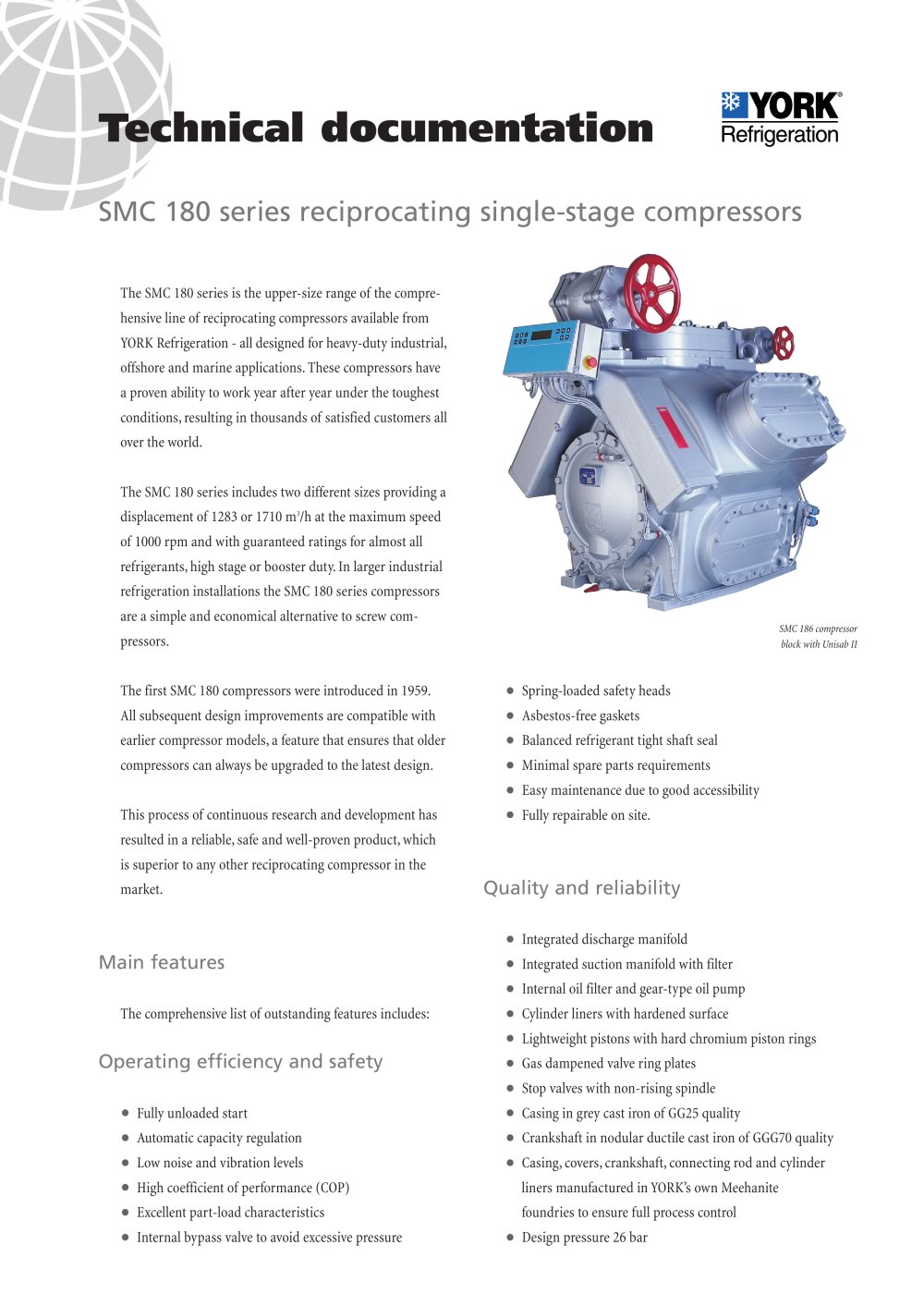

^^^^?Mc 180 series reciprocating single-stage compressors

The SMC 180 series is the upper-size range of the compre­hensive line of reciprocating compressors available from YORK Refrigeration - all designed for heavy-duty industrial, offshore and marine applications. These compressors have a proven ability to work year after year under the toughest conditions, resulting in thousands of satisfied customers all over the world.

The SMC 180 series includes two different sizes providing a displacement of 1283 or 1710 m³/h at the maximum speed of 1000 rpm and with guaranteed ratings for almost all refrigerants, high stage or booster duty. In larger industrial refrigeration installations the SMC 180 series compressors are a simple and economical alternative to screw com­pressors.

The first SMC 180 compressors were introduced in 1959. All subsequent design improvements are compatible with earlier compressor models, a feature that ensures that older compressors can always be upgraded to the latest design.

This process of continuous research and development has resulted in a reliable, safe and well-proven product, which is superior to any other reciprocating compressor in the market.

• Spring-loaded safety heads

• Asbestos-free gaskets

^ Balanced refrigerant tight shaft seal

^ Minimal spare parts requirements

^ Easy maintenance due to good accessibility

^ Fully repairable on site.

Quality and reliability

• Integrated discharge manifold

• Integrated suction manifold with filter

^ Internal oil filter and gear-type oil pump

^ Cylinder liners with hardened surface

^ Lightweight pistons with hard chromium piston rings

^ Gas dampened valve ring plates

^ Stop valves with non-rising spindle

^ Casing in grey cast iron of GG25 quality

^ Crankshaft in nodular ductile cast iron of GGG70 quality

^ Casing, covers, crankshaft, connecting rod and cylinder

liners manufactured in YORK's own Meehanite

foundries to ensure full process control

^ Design pressure 26 bar

Main features

The comprehensive list of outstanding features includes:

Operating efficiency and safety

^ Fully unloaded start ^ Automatic capacity regulation Low noise and vibration levels ^ High coefficient of performance (COP) ^ Excellent part-load characteristics ^ Internal bypass valve to avoid excessive pressure
