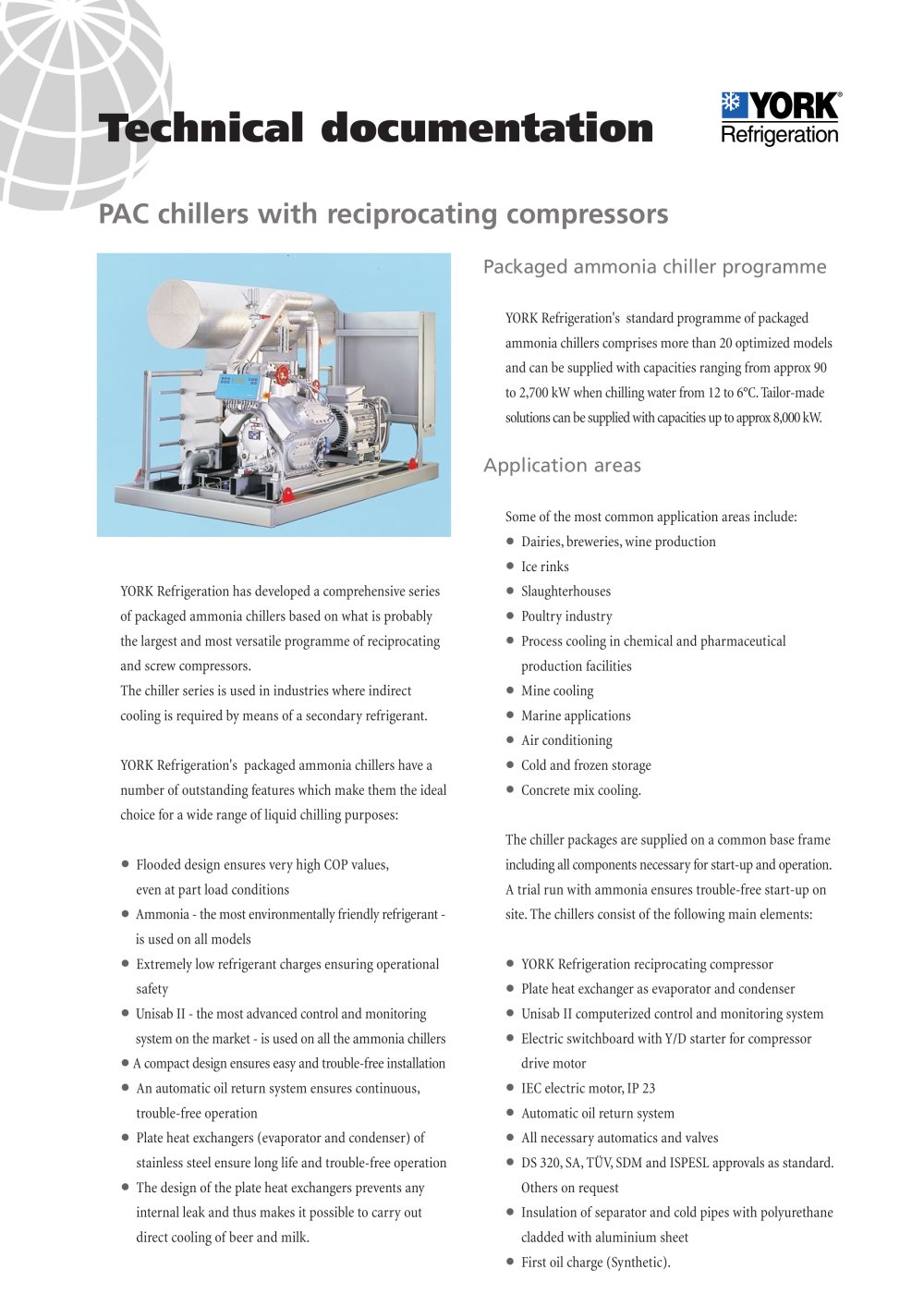

Technical documentation
PAC chillers with reciprocating compressors
Packaged ammonia chiller programme
YORK Refrigeration's standard programme ofpackaged
ammonia chillers comprises more than 20 optimized models
and can be supplied with capacities ranging from approx 90
to 2,700 kW when chilling water from 12 to 6°C.Tailor-made
solutions can be supplied with capacities up to approx 8,000 kW.
Application areas
Some ofthe most common application areas include:
Dairies,breweries,wine production Ice rinks YORK Refrigeration has developed a comprehensive seriesofpackaged ammonia chillers based on what is probably
the largest and most versatile programme ofreciprocating
and screw compressors.
The chiller series is used in industries where indirect cooling is required by means ofa secondary refrigerant.YORK Refrigeration's packaged ammonia chillers have anumber ofoutstanding features which make them the ideal
choice for a wide range ofliquid chilling purposes:
Slaughterhouses
Poultry industry
Process cooling in chemical and pharmaceutical production facilities
Mine cooling
Marine applications
Air conditioning
Cold and frozen storage
Concrete mix cooling.The chiller packages are supplied on a common base frameincluding all components necessary for start-up and operation.
A trial run with ammonia ensures trouble-free start-up on
site.The chillers consist ofthe following main elements:
Flooded design ensures very high COP values,
even at part load conditions
Ammonia - the most environmentally friendly refrigerant -
is used on all models
Extremely low refrigerant charges ensuring operational
safety
YORK Refrigeration reciprocating compressor
Plate
heat exchanger as evaporator and
condenser
Unisab II - the most advanced control and monitoring
system on the market - is used on all the ammonia chillers
Unisab II computerized control and monitoring system
Electric switchboard with Y/D starter for compressor
drive motor
A compact design ensures easy and trouble-free installation
An automatic oil return system ensures continuous,
trouble-free operation
IEC electric motor,IP 23
Automatic oil return system
Plate
heat exchangers (evaporator and
condenser) of
stainless steel ensure long life and trouble-free operation
All necessary automatics and valves
DS 320,SA,TάV,SDM and ISPESL approvals as standard.
Others on request
The design ofthe plate
heat exchangers prevents any
internal leak and thus makes it possible to carry out
direct cooling ofbeer and milk.
Insulation ofseparator and cold pipes with polyurethane
cladded with aluminium sheet
First oil charge (Synthetic).
