Technical documentation

CMO series reciprocating single-stage compressors

The CMO series is the small-size range ofthe comprehensi-ve line ofreciprocating compressors available from YORK Refrigeration - all designed for heavy-duty industrial,off- shore and marine applications.These compressors have a proven ability to work year after year under the toughest conditions,resulting in thousands ofsatisfied customers all over the world.Three different sizes providing a displacement from 116-233 m

Operating efficiency and safety

•

Fully unloaded start

•

Automatic capacity regulation in four steps

•

Low noise and vibration levels

•

High coefficient ofperformance (COP)

•

Excellent part-load characteristics

•

Internal bypass valve to avoid excessive pressure Spring-loaded safety heads
3 /h at the maximum speed of1800 rpm are availablewith guaranteed ratings for almost all refrigerants,high- stage or booster duty.In smaller refrigeration installations where reliability is a really important factor,the CMO series is an excellent choice.

• •

Asbestos-free gaskets

•

Balanced refrigerant-tight shaft seal

•

Minimal spare parts requirements

•

Easy maintenance due to good accessibility

•

Fully repairable on site.

Main features Quality and reliability

The comprehensive list ofoutstanding features includes:

•

Integrated discharge manifold

•

Integrated suction manifold with filter

•

Internal oil filter and gear-type oil pump

•

Gas dampened valve ring plates

•

Lightweight pistons with hard chromium piston rings

•

Gas-dampened discharge valves

•

Stop valves with non-rising spindle

•

Casing in grey cast iron ofGG25 quality

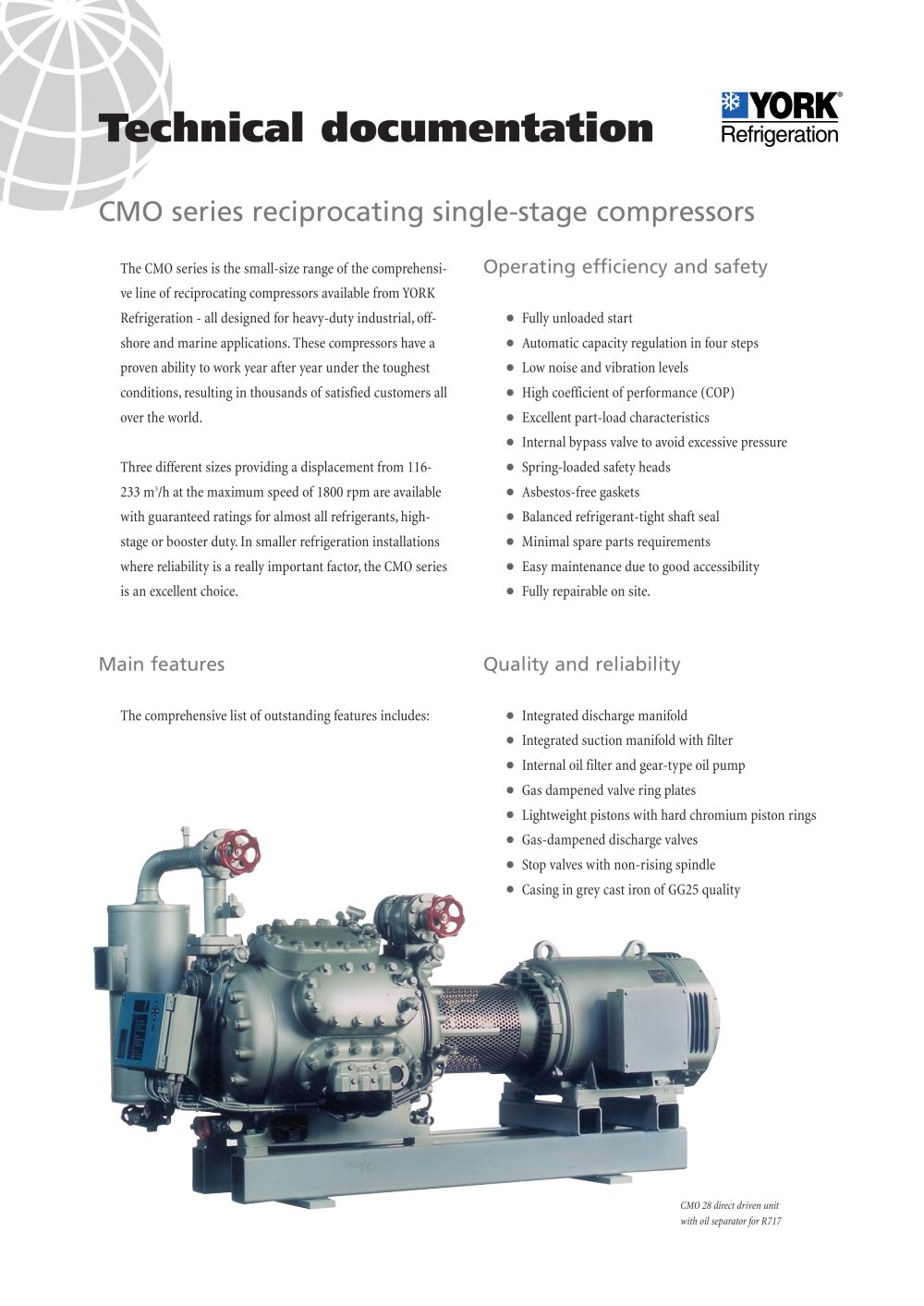

CMO 28 direct driven unit with oil separator for R717
